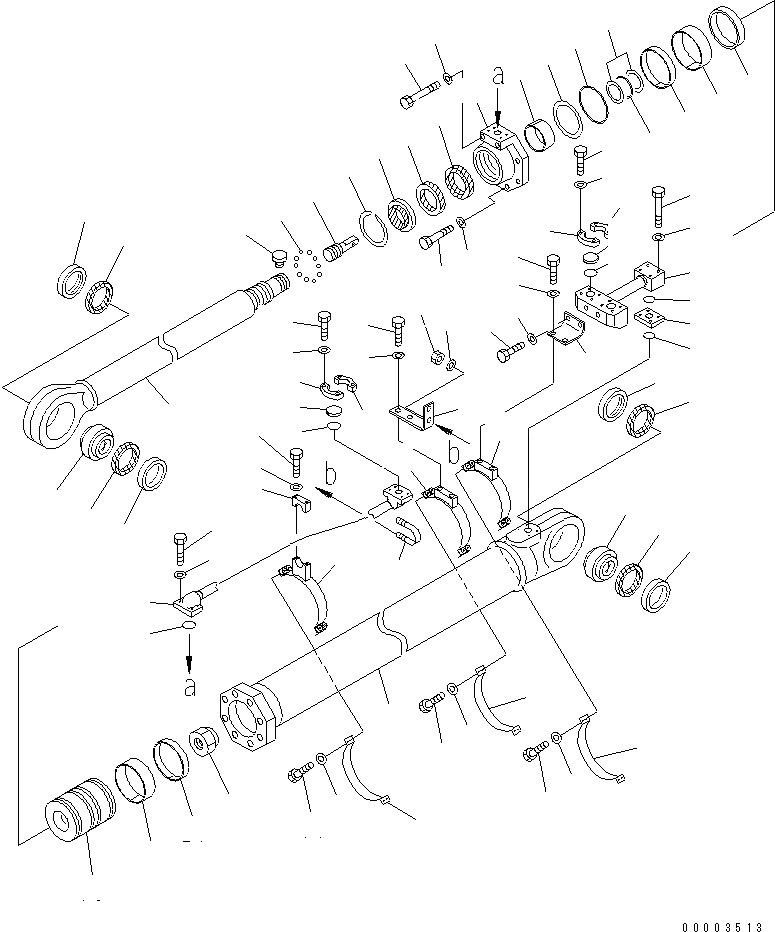

Запчасти Komatsu PC1600SP-1 ЦИЛИНДР РУКОЯТИ(№-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G1

21T-63-X2030

CYLINDER GROUP,R.H.

G1

21T-63-X2040

CYLINDER GROUP,L.H.

|1

21T-63-02030

CYLINDER ASS'Y

1

21T-63-62141

CYLINDER

2

21T-63-62122

ROD,PISTON

3

21T-72-15850

BUSHING

4

21T-72-15860

BUSHING

5

21T-72-15870

SEAL,DUST (KIT)

6

707-75-16012

RING,SNAP

7

566-63-22241

SEAL,DUST (KIT)

8

707-27-25020

HEAD,CYLINDER

9

707-52-91350

BUSHING

|9

707-52-11610

BUSHING

10

707-51-16130

PACKING,ROD (KIT)

11

707-51-16630

RING,BAFFLE (KIT)

12

07000-15240

O-RING (KIT)

13

07146-05242

RING,BACK-UP (KIT)

14

01011-83050

BOLT

15

01643-33080

WASHER

16

01011-83010

BOLT

17

01643-33080

WASHER

18

707-36-25931

PISTON

19

707-44-25180

RING,PISTON (KIT)

|19

707-44-25080

RING,PISTON (KIT)

20

07155-02555

RING,WEAR (KIT)

21

707-39-25911

RING,WEAR (KIT)

22

19M-63-52271

NUT

23

07000-15100

O-RING (KIT)

24

07001-05100

RING,BACK-UP (KIT)

25

707-71-50371

PLUNGER

26

04260-01270

BALL

27

707-71-91260

CAP

28

21T-63-62370

TUBE,L.H.

|28

21T-63-62470

TUBE,R.H.

29

21T-62-27850

TUBE,L.H.

|29

21T-62-27850

TUBE,R.H.

30

01010-51450

BOLT

31

01643-31445

WASHER

32

07000-13048

O-RING (KIT)

33

07283-24354

CLIP

34

01599-01011

NUT

35

01643-31032

WASHER

36

21T-62-27890

BRACKET

37

01010-51230

BOLT

38

01643-31232

WASHER

39

176-61-41330

CLAMP

40

01010-51250

BOLT

41

707-88-96620

BRACKET

42

707-88-96630

BRACKET

43

21N-62-18430

BAND

44

01010-51240

BOLT

45

01011-51630

BOLT

46

01643-31645

WASHER

47

07000-12060

O-RING (KIT)

48

707-88-98840

FLANGE

49

21T-62-27880

BRACKET

50

07000-13048

O-RING,(FOR SHIPPING)

51

07378-11410

HEAD,(FOR SHIPPING)

52

07371-51470

FLANGE,(FOR SHIPPING)

53

01010-51455

BOLT,(FOR SHIPPING)

54

01643-31445

WASHER,(FOR SHIPPING)

|K

707-99-85200

SERVICE KIT
