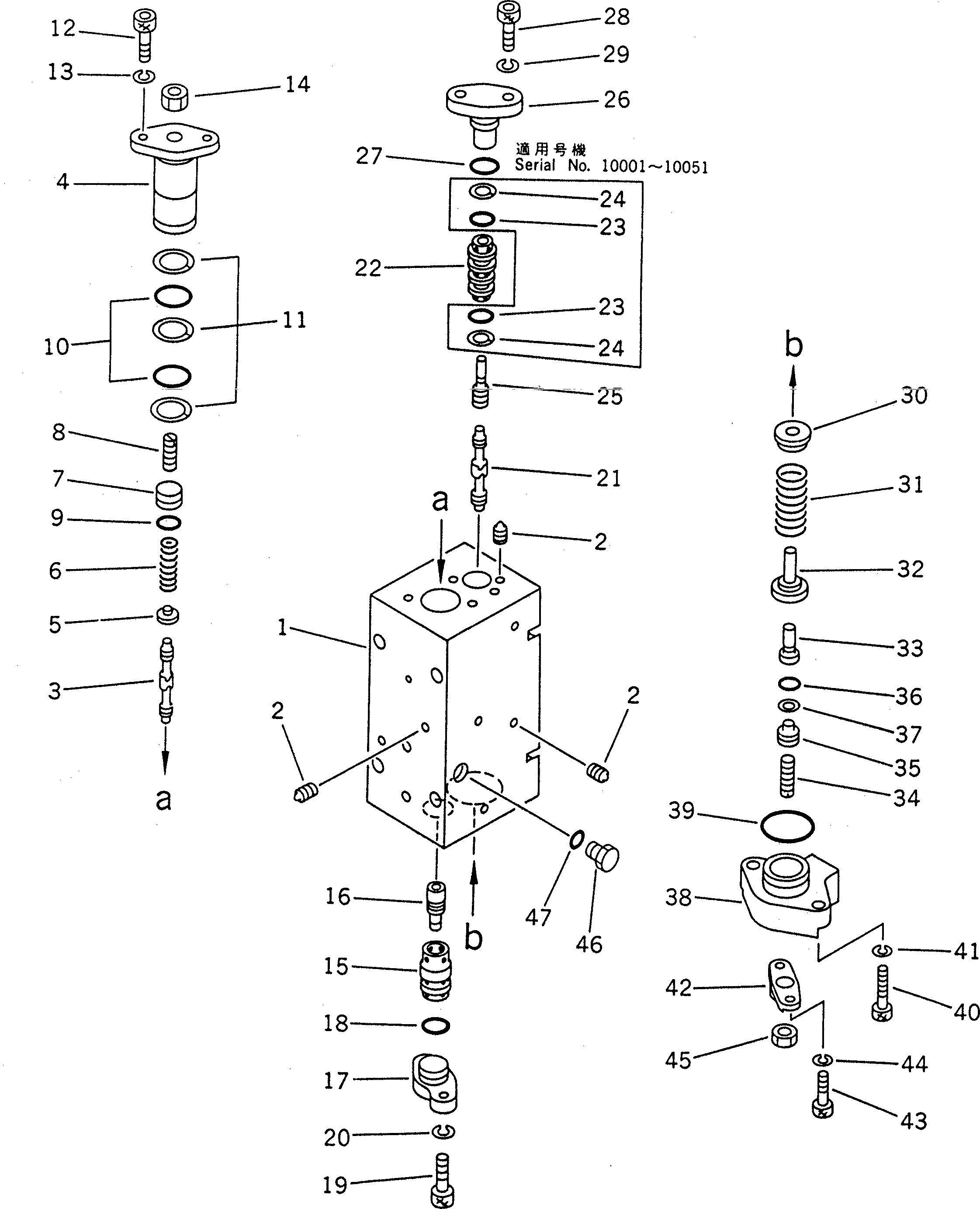

Запчасти Komatsu PC1600SP-1 ОСНОВН. НАСОС (/) (NO. НАСОС) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|1
708-25-02051
PUMP ASS'Y
|1
708-25-02050
PUMP ASS'Y
|1
708-25-08230
SERVO VALVE ASS'Y,REAR
|1
708-25-08630
VALVE ASS'Y,CO AND NC
|1
708-23-00310
BODY ASS'Y
1
BODY
|1
4708-25-57210
BODY
2
EXPANDER
3
708-25-17141
SPOOL
|3
4708-25-17140
SPOOL
4
708-25-17131
COVER
5
708-25-17180
SEAT
6
708-25-17190
SPRING
7
708-25-17420
PLUG
8
708-25-17430
SCREW
9
07000-02012
O-RING
10
07000-12021
O-RING
11
07001-02021
RING,BACK-UP
12
708-25-15320
BOLT
13
01602-20619
WASHER,SPRING
14
01580-10806
NUT
15
708-25-17150
SLEEVE
16
708-25-17160
PISTON
17
708-25-17170
COVER
18
07000-02014
O-RING
19
708-25-15320
BOLT
20
01602-20619
WASHER,SPRING
21
708-25-17141
SPOOL
|21
4708-25-17140
SPOOL
22
708-25-17211
SLEEVE
|22
4708-25-17210
SLEEVE
23
07000-12012
O-RING
24
07001-02012
RING,BACK-UP
25
708-25-17220
PISTON
26
708-25-17230
COVER
27
07000-02012
O-RING
28
708-25-15320
BOLT
29
01602-20619
WASHER,SPRING
30
708-25-17370
SEAT
31
708-25-17250
SPRING
32
708-25-17260
SEAT
33
708-25-17270
PISTON
34
708-25-15340
SCREW
35
708-25-17410
PLUG
36
07000-01009
O-RING
37
07001-01009
RING,BACK-UP
38
708-25-17280
COVER
39
07000-03028
O-RING
40
706-75-40310
BOLT
41
01602-20619
WASHER,SPRING
42
708-25-17310
COVER
43
708-25-15320
BOLT
44
01602-20619
WASHER,SPRING
45
01580-10806
NUT
46
07040-11007
PLUG
47
07002-01023
O-RING
|1
708-25-02051
PUMP ASS'Y
|1
708-25-02050
PUMP ASS'Y
|1
708-25-08230
SERVO VALVE ASS'Y,REAR
|1
708-25-08630
VALVE ASS'Y,CO AND NC
|1
708-23-00310
BODY ASS'Y
1
BODY
|1
4708-25-57210
BODY
2
EXPANDER
3
708-25-17141
SPOOL
|3
4708-25-17140
SPOOL
4
708-25-17131
COVER
5
708-25-17180
SEAT
6
708-25-17190
SPRING
7
708-25-17420
PLUG
8
708-25-17430
SCREW
9
07000-02012
O-RING
10
07000-12021
O-RING
11
07001-02021
RING,BACK-UP
12
708-25-15320
BOLT
13
01602-20619
WASHER,SPRING
14
01580-10806
NUT
15
708-25-17150
SLEEVE
16
708-25-17160
PISTON
17
708-25-17170
COVER
18
07000-02014
O-RING
19
708-25-15320
BOLT
20
01602-20619
WASHER,SPRING
21
708-25-17141
SPOOL
|21
4708-25-17140
SPOOL
22
708-25-17211
SLEEVE
|22
4708-25-17210
SLEEVE
23
07000-12012
O-RING
24
07001-02012
RING,BACK-UP
25
708-25-17220
PISTON
26
708-25-17230
COVER
27
07000-02012
O-RING
28
708-25-15320
BOLT
29
01602-20619
WASHER,SPRING
30
708-25-17370
SEAT
31
708-25-17250
SPRING
32
708-25-17260
SEAT
33
708-25-17270
PISTON
34
708-25-15340
SCREW
35
708-25-17410
PLUG
36
07000-01009
O-RING
37
07001-01009
RING,BACK-UP
38
708-25-17280
COVER
39
07000-03028
O-RING
40
706-75-40310
BOLT
41
01602-20619
WASHER,SPRING
42
708-25-17310
COVER
43
708-25-15320
BOLT
44
01602-20619
WASHER,SPRING
45
01580-10806
NUT
46
07040-11007
PLUG
47
07002-01023
O-RING
