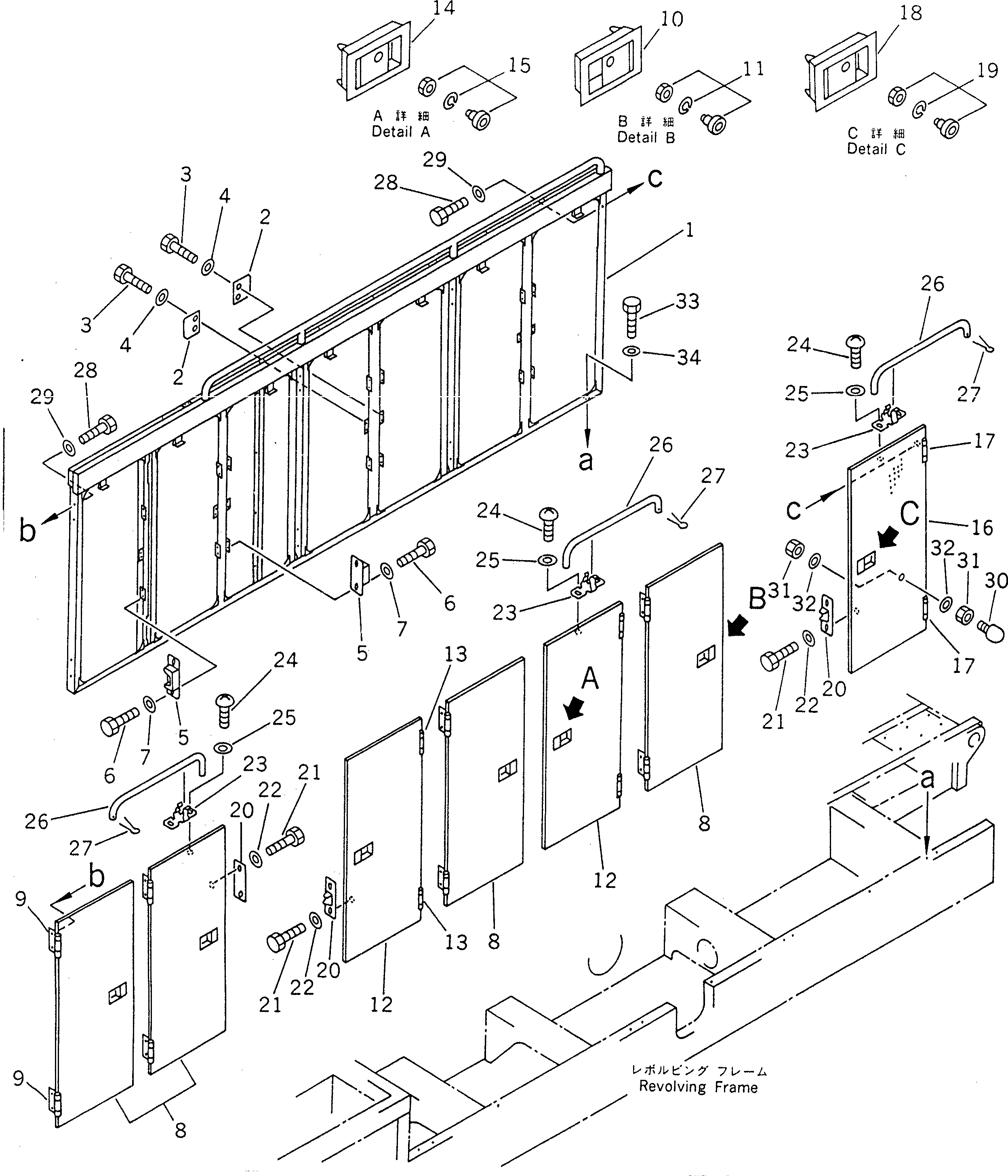

Запчасти Komatsu PC1600SP-1 ЛЕВ. COVER ЧАСТИ КОРПУСА

1

21T-54-73162

FRAME

|1

21T-54-73160

FRAME

2

21T-54-73210

PLATE

3

01010-81025

BOLT

|3

01010-51025

BOLT

4

01643-31032

WASHER

5

205-54-51970

DOVE TAIL

6

01010-80616

BOLT

|6

01010-50616

BOLT

7

01643-30623

WASHER

8

21T-54-73170

DOOR,L.H.

9

21T-54-73190

HINGE (WELDED)

10

421-54-11362

LOCK ASS'Y (WELDED)

11

421-54-11381

LOCK

12

21T-54-73180

DOOR,R.H.

13

21T-54-73190

HINGE (WELDED)

14

421-54-11372

LOCK ASS'Y (WELDED)

15

421-54-11381

LOCK

16

21T-54-75460

DOOR

17

21T-54-73190

HINGE (WELDED)

18

421-54-11372

LOCK ASS'Y (WELDED)

19

421-54-11381

LOCK

20

205-54-53550

DOVE TAIL

21

01010-80616

BOLT

|21

01010-50616

BOLT

22

01643-30623

WASHER

23

20B-54-12210

SPRING

24

01220-40408

SCREW

25

01641-20405

WASHER

26

205-54-64140

BAR

27

04050-13018

PIN,COTTER

28

01010-81230

BOLT

29

01643-31232

WASHER

30

09453-00002

STOPPER

31

01580-11210

NUT

32

175-54-34170

WASHER

33

01010-81230

BOLT

34

01643-31232

WASHER
