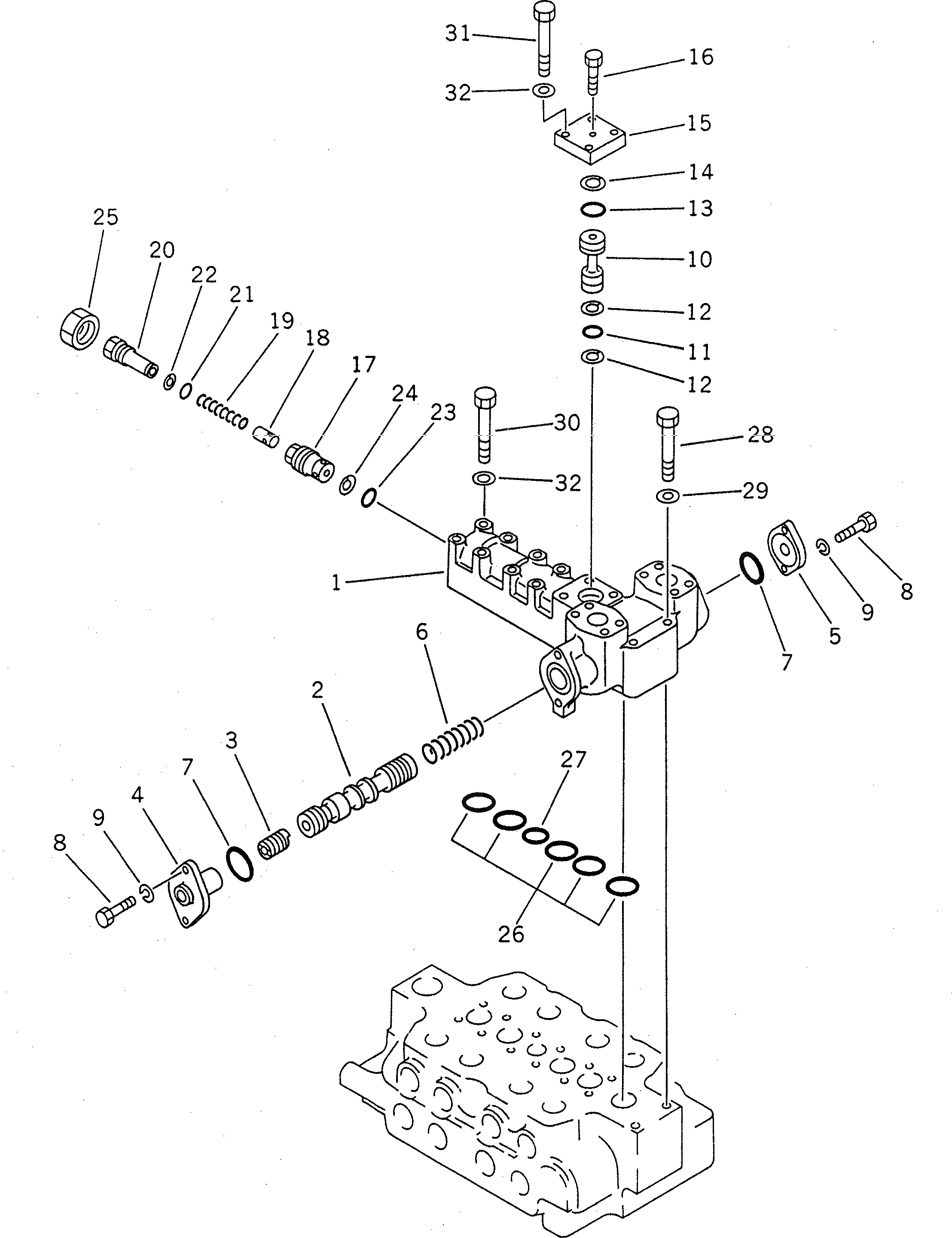

Запчасти Komatsu PC1600-1 ОСНОВН. КЛАПАН (/) (4-Х СЕКЦИОНН.) (ПРАВ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-14-91401

VALVE ASS'Y

|1

709-14-91400

VALVE ASS'Y

|1

709-10-91101

VALVE ASS'Y

|1

709-10-91100

VALVE ASS'Y

1

BODY

|1

BODY

2

SPOOL

3

PISTON

4

SLEEVE

5

709-10-91240

FLANGE

6

709-10-91230

SPRING

7

07000-02055

O-RING

8

01010-81030

BOLT

9

01602-21030

WASHER,SPRING

10

709-10-91131

PLUG

|10

709-10-91130

PLUG

11

07000-13030

O-RING

12

07001-03030

RING,BACK-UP

13

07000-13035

O-RING

14

07001-03035

RING,BACK-UP

15

709-10-91140

PLATE

16

01010-80835

BOLT

17

709-10-91310

SLEEVE

18

706-73-70140

VALVE,CHECK

19

706-73-70150

SPRING

20

709-74-92450

PLUG

21

07000-12010

O-RING

22

07001-02010

RING,BACK-UP

23

700-93-11320

O-RING

24

700-93-11330

RING,BACK-UP

25

709-74-92460

NUT

26

07000-13048

O-RING

27

07000-13040

O-RING

28

01011-51425

BOLT

29

01643-31445

WASHER

30

01011-81215

BOLT

31

01011-81250

BOLT

32

01643-31232

WASHER
