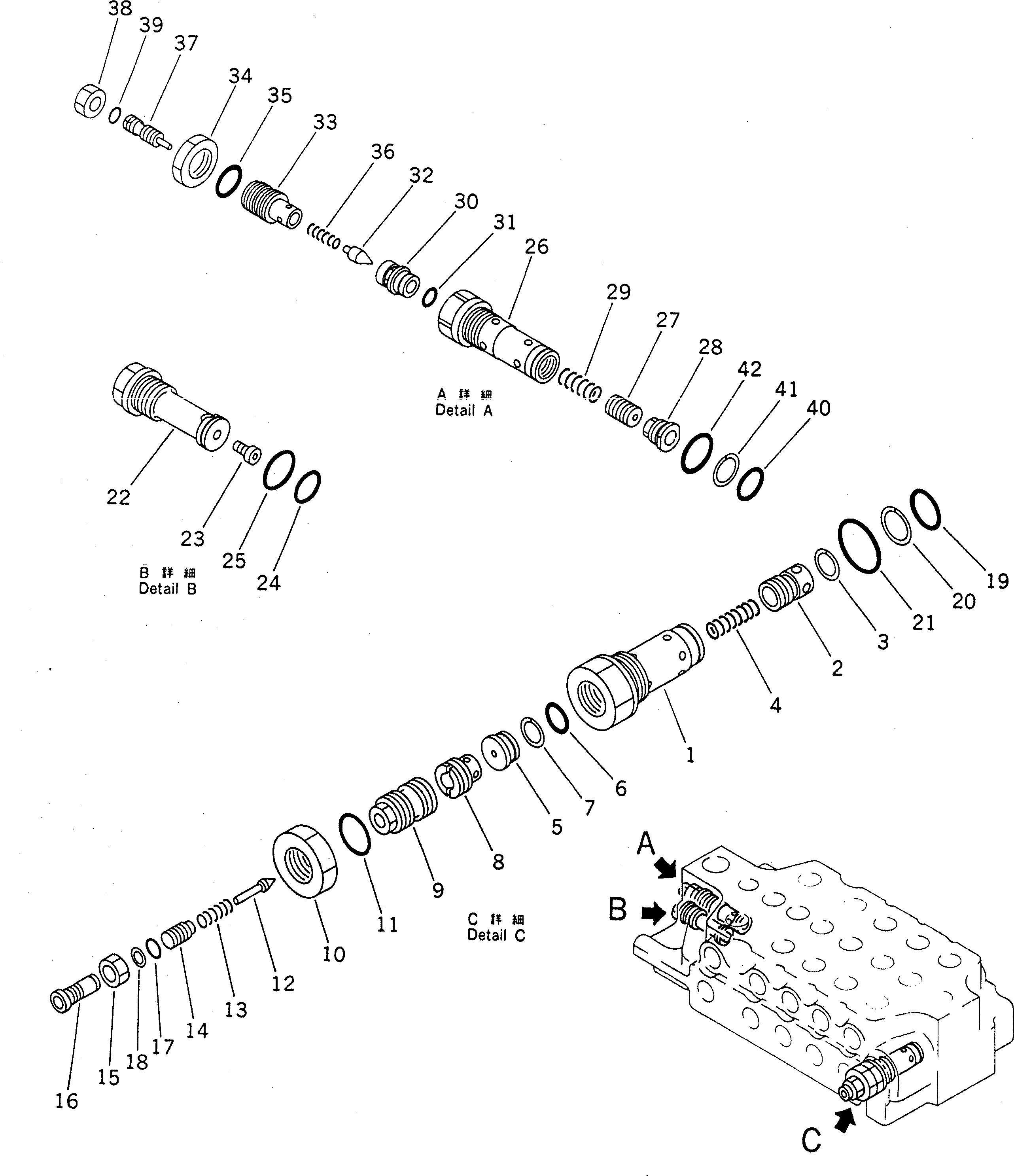

Запчасти Komatsu PC1600-1 ОСНОВН. КЛАПАН (/) (4-Х СЕКЦИОНН.) (ЛЕВ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-14-91202

VALVE ASS'Y

|1

709-14-91201

VALVE ASS'Y

|1

709-10-52403

VALVE ASS'Y,RELIEF

1

SLEEVE

2

VALVE

3

709-10-51120

RING,SNAP

4

709-10-51140

SPRING

5

SEAT

6

O-RING

7

RING,BACK-UP

8

PLUG

9

709-10-51510

HOLDER

10

01583-13621

NUT

11

07002-03634

O-RING

12

700-80-61190

POPPET

13

709-20-51231

SPRING

14

709-10-51520

RETAINER

15

07239-12009

NUT

16

709-10-51530

PLUG

17

07000-12014

O-RING

18

07001-02014

RING,BACK-UP

19

07000-13032

O-RING

20

07001-03032

RING,BACK-UP

21

07002-05234

O-RING

|22

709-10-92100

ORIFICE ASS'Y

22

ORIFICE

23

SENSOR

24

700-93-11320

O-RING

25

07002-03634

O-RING

|26

709-10-55102

VALVE ASS'Y,RELIEF

|26

709-10-55101

VALVE ASS'Y,RELIEF

26

SLEEVE

27

VALVE

28

PLUG

29

709-10-51320

SPRING

30

709-10-51380

SEAT

|30

709-10-51330

SEAT

31

07000-22016

O-RING

32

709-10-51340

POPPET

33

709-10-51360

HOLDER

34

700-90-51190

NUT

35

07002-03034

O-RING

36

709-10-51350

SPRING

37

709-10-51372

SCREW

|37

709-10-51371

SCREW

38

01582-11411

NUT

39

07000-02011

O-RING

40

700-93-11320

O-RING

41

700-93-11330

RING,BACK-UP

42

07002-03634

O-RING
