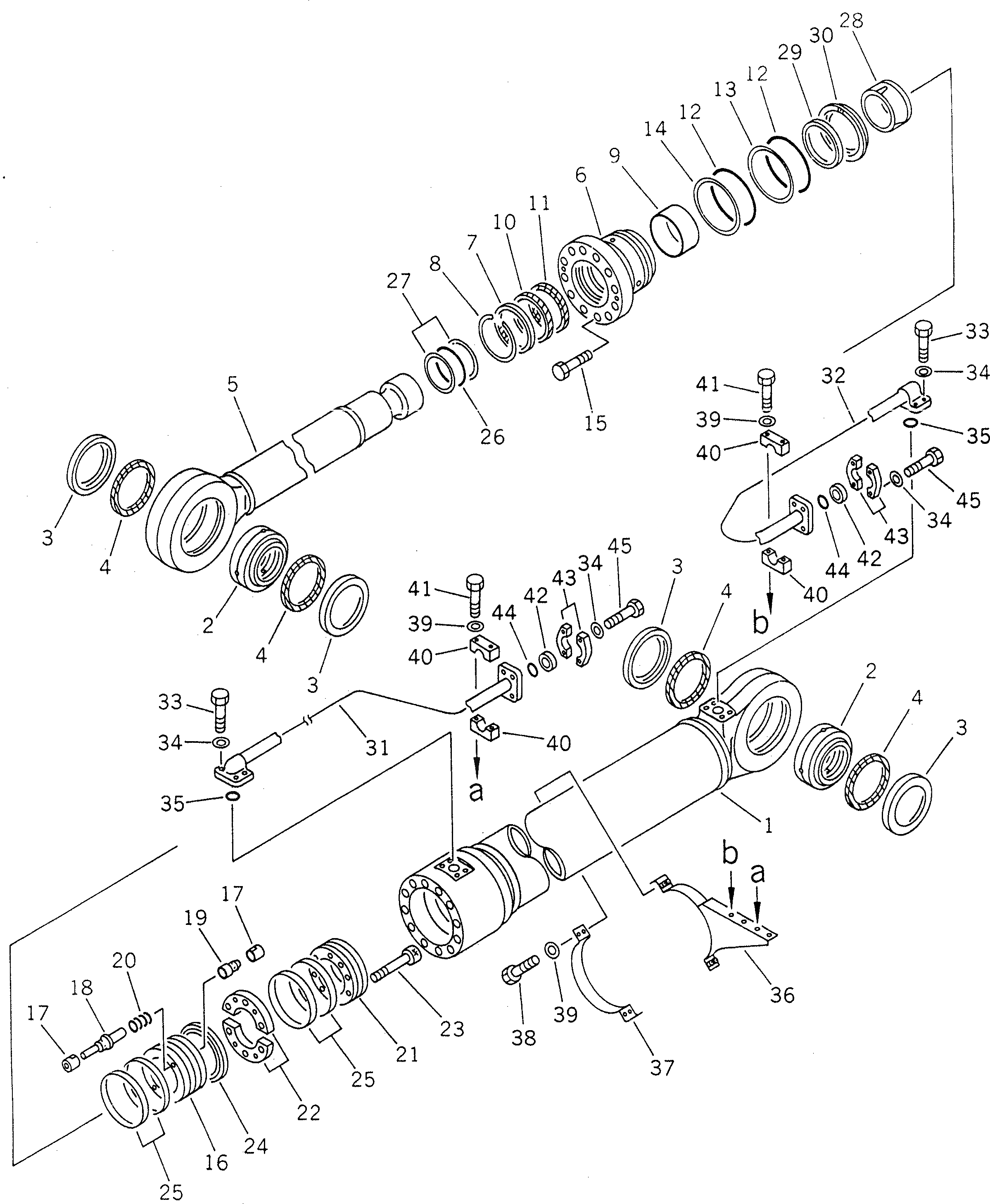

Запчасти Komatsu PC1600-1 ЦИЛИНДР СТРЕЛЫ(ДЛЯ ПОГРУЗ.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

21T-63-X3010

CYLINDER GROUP

G-1

21T-63-X3020

CYLINDER GROUP

|1

21T-63-03010

CYLINDER ASS'Y

1

21T-63-54140

CYLINDER

2

707-46-18010

BUSHING

3

707-46-18020

BUSHING

4

707-77-18010

SEAL,DUST

5

21T-63-54120

ROD

6

707-28-28030

HEAD

7

707-56-19780

SEAL,DUST

8

07179-15205

RING,SNAP

9

707-52-11910

BUSHING

10

707-51-19130

PACKING

11

707-51-19630

RING

12

07000-15280

O-RING

13

07001-05280

RING,BACK-UP

14

707-35-92900

RING,BACK-UP

15

01011-83620

BOLT

|16

707-91-02811

PISTON SUB ASS'Y

16

PISTON

17

SEAT

18

VALVE

19

VALVE

20

SPRING

21

707-37-28020

PISTON

22

707-40-28970

SPACER

23

01253-31810

BOLT

24

707-44-28180

RING,PISTON

25

707-39-28820

RING,WEAR

26

07000-15165

O-RING

27

707-35-91750

RING,BACK-UP

28

707-71-60511

PLUNGER

29

707-71-20510

RING

30

707-71-40520

COLLAR

31

21T-62-73141

TUBE,L.H.

|31

21T-62-73151

TUBE,R.H.

32

21T-62-73120

TUBE,L.H.

|32

21T-62-73130

TUBE,R.H.

33

01010-51450

BOLT

34

01643-31445

WASHER

35

07000-13048

O-RING

36

21T-62-73172

BRACKET

37

21T-62-73161

BAND

38

01010-51250

BOLT

39

01643-31232

WASHER

40

176-61-41330

CLAMP

41

01010-51290

BOLT

42

07378-11410

HEAD,SLEEVE

43

07371-51470

FLANGE,SPLIT

44

07000-13048

O-RING

45

01010-51445

BOLT
