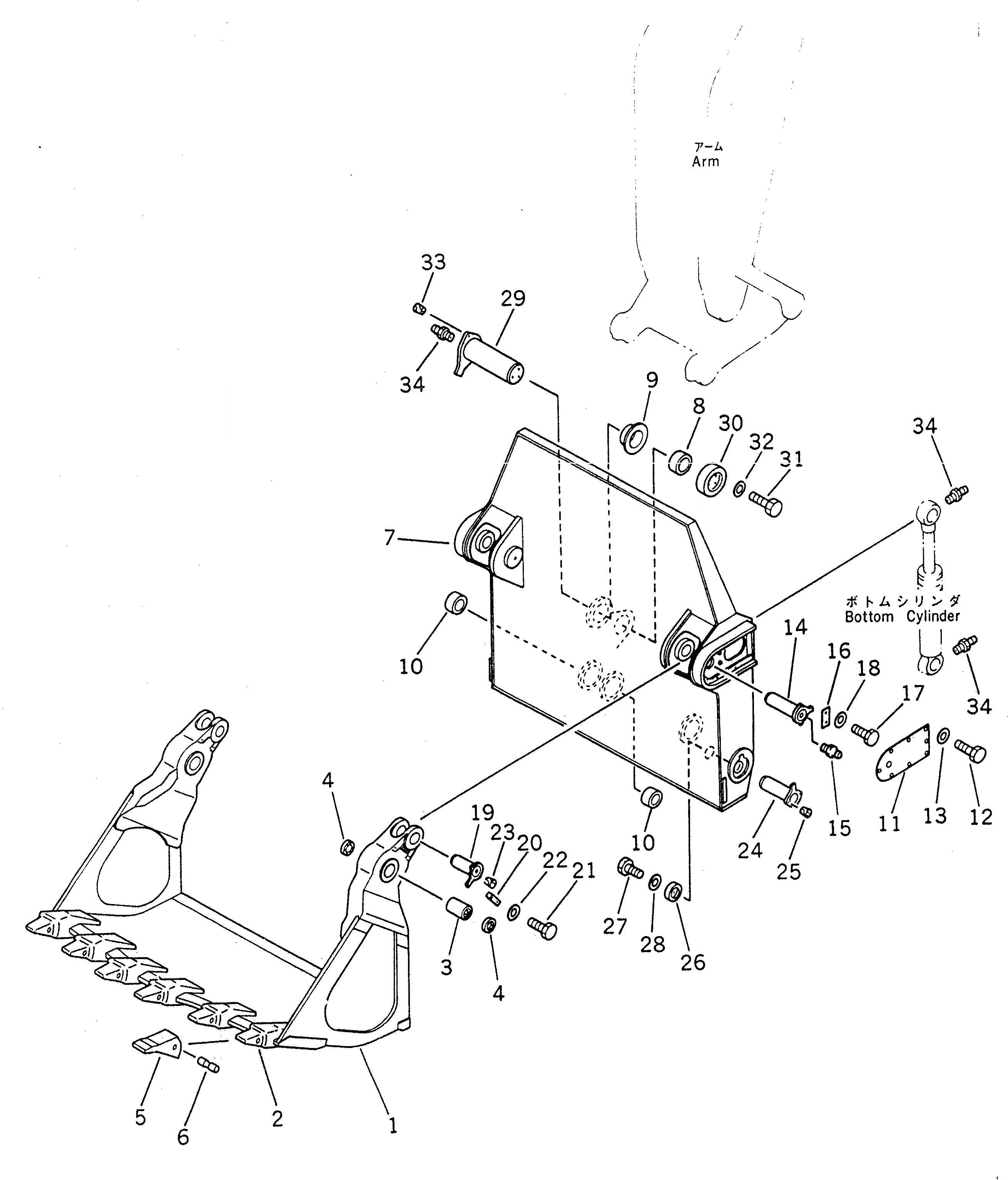

Запчасти Komatsu PC1600-1 КОВШ¤ 9.M (ДЛЯ НИЖН. РАЗГРУЗКА) (ДЛЯ ПОГРУЗ.) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

21T-72-X4000

BUCKET GROUP

1

21T-72-74121

BUCKET,FRONT

2

21T-72-74141

ADAPTER (WELDED)

3

21T-72-74280

BUSHING

4

21T-72-74290

SEAL

5

21T-72-74311

POINT

|5

21T-72-74310

POINT

6

21T-72-74320

PIN ASS'Y

7

21T-72-74111

BUCKET,REAR

8

21T-72-74180

BUSHING

9

21T-72-74190

BUSHING

10

21T-72-74220

BUSHING

11

21T-72-74360

COVER

12

01010-81630

BOLT

|12

01010-51630

BOLT

13

01643-31645

WASHER

14

21T-72-74271

PIN

|14

21T-72-74270

PIN

15

07020-00000

FITTING,GREASE

16

207-70-11230

PLATE

17

01010-81640

BOLT

|17

01010-51640

BOLT

18

01643-31645

WASHER

19

21T-72-74260

PIN

20

709-63-21340

PLATE

21

01010-81235

BOLT

|21

01010-51235

BOLT

22

01643-31232

WASHER

23

07049-01215

PLUG

24

21T-72-74240

PIN

25

07049-01620

PLUG

26

21T-72-74250

HOLDER

27

01010-81645

BOLT

|27

01010-51645

BOLT

28

01643-31645

WASHER

29

21T-72-74171

PIN

30

21T-72-74210

HOLDER

31

01010-82460

BOLT

|31

01010-52460

BOLT

32

01643-32460

WASHER

33

07049-02430

PLUG

34

07020-00000

FITTING,GREASE
