Запчасти Komatsu PC1600-1 БЛОК КОНДИЦИОНЕРА (/)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

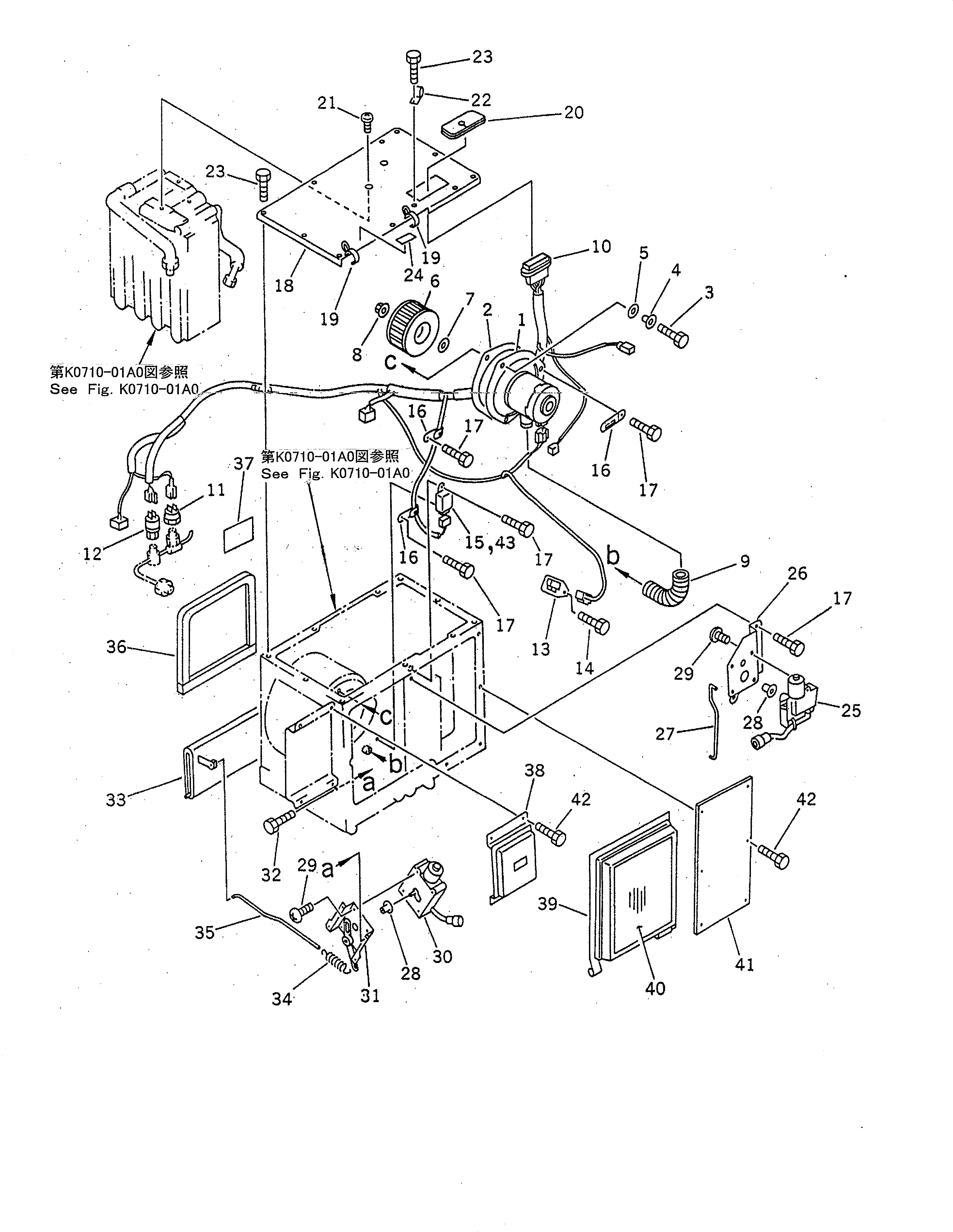

Схема запчастей Komatsu PC1600-1 - БЛОК КОНДИЦИОНЕРА (/)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

Артикул

Название

Примечание

Количество

G-1

21T-979-X100

AIR CONDITIONER G.,(LOW CAB)

|1

195-Z11-5103

AIR CONDITIONER UNIT

|1

195-Z11-5101

AIR CONDITIONER UNIT

|1

195-Z11-5703

UNIT ASS'Y

|1

195-Z11-5701

UNIT ASS'Y

1

195-Z11-5540

MOTOR ASS'Y

2

195-Z11-5560

PACKING

3

145-Z79-6660

BOLT

4

145-Z79-6670

INSERT

5

145-Z79-6680

BUSHING

6

195-Z11-5570

FAN,BLOWER

7

198-911-5540

WASHER

8

198-911-5530

NUT

9

195-Z11-5580

PIPE

10

195-Z11-5961

WIRING HARNESS

11

195-Z11-5690

SWITCH,PRESSURE

12

198-911-5630

SWITCH,PRESSURE

13

195-Z11-5590

RESISTOR,BLOWER

14

01220-40416

SCREW

15

195-Z11-5840

RELAY ASS'Y

16

195-Z11-6150

CLAMP

17

01010-50616

BOLT

18

195-Z11-5891

COVER

19

195-Z11-5880

CLAMP

20

195-Z11-5810

GROMMET

21

195-Z11-5940

SCREW

22

195-Z11-7160

CLAMP

23

01010-50816

BOLT

24

ND113104-0160

PLATE¤ NAME,(LIMITED SUPPLY)

25

195-Z11-7180

ACTUATOR ASS'Y

26

195-Z11-6210

LINK

27

195-Z11-6260

SHAFT

28

195-Z11-6280

BUSHING

29

01370-00412

SCREW

30

195-Z11-7190

ACTUATOR ASS'Y

31

195-Z11-6220

LINK

32

01010-50616

BOLT

33

195-Z11-6191

DAMPER

34

195-Z11-6270

SPRING

35

195-Z11-6251

SHAFT

36

ND146669-4940

PACKING

37

195-Z11-6240

PACKING

38

195-Z11-6180

AMP ASS'Y

39

195-Z11-5861

HOLDER

40

195-Z11-5870

FILTER

41

195-Z11-5920

COVER

42

01010-50816

BOLT

43

205-979-6460

RELAY ASS'Y

Выбрано товаров: 48
