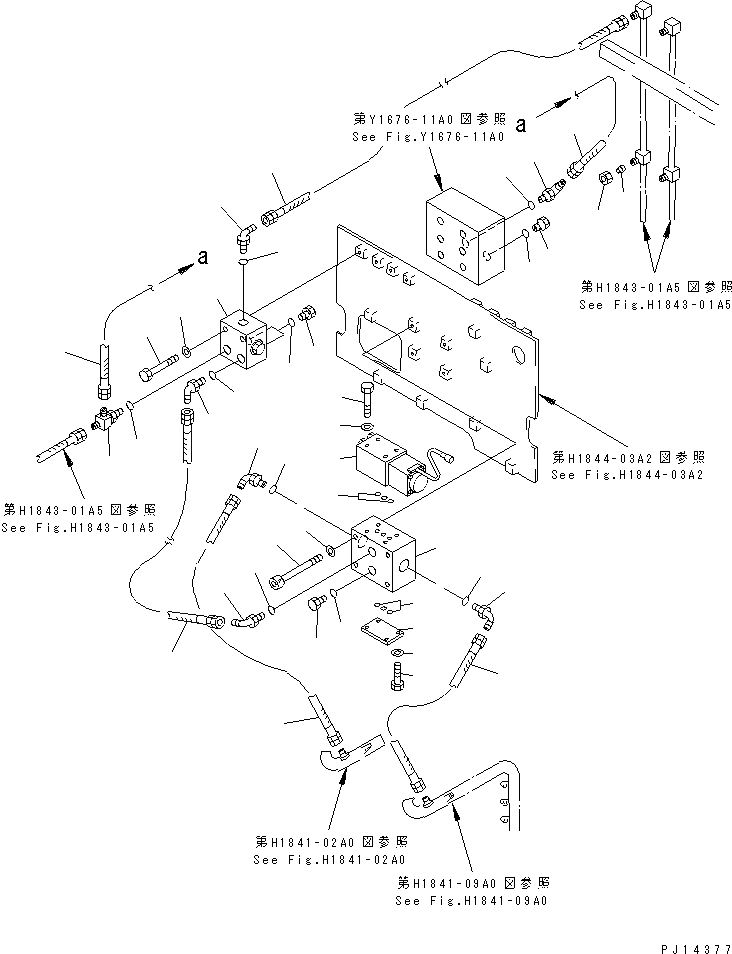

Запчасти Komatsu PC1600-1 СТРЕЛА COMPENSATE ТРУБЫ (ДЛЯ ПОГРУЗ.) (С -POSITION АВТОМАТИЧ. COMPENSATION) ГИДРАВЛИКА

G-1

21T-06-X3000

LS AUTO CONTROL G.

1

208-62-17720

TEE

2

07002-02034

O-RING

3

07102-20206

HOSE

4

07235-10214

ELBOW

|4

20N-63-66190

ELBOW

5

07002-02034

O-RING

6

07040-12012

PLUG

7

07002-02034

O-RING

8

702-19-15000

CHECK VALVE ASS'Y,(SEE FIG.Y1676-01A0)

9

01010-81075

BOLT

|9

01010-51075

BOLT

10

01643-31032

WASHER

11

07040-12012

PLUG

12

07002-02034

O-RING

13

07235-10315

ELBOW

14

07002-02034

O-RING

15

07102-20303

HOSE

16

209-62-57620

BLOCK

17

01252-41275

BOLT

18

01643-51232

WASHER

19

07040-12012

PLUG

20

07002-02034

O-RING

21

07000-02010

O-RING

22

702-21-05110

VALVE ASS'Y,(SEE FIG.Y1671-01A0)

23

01010-80875

BOLT

|23

01010-50875

BOLT

24

01643-30823

WASHER

25

209-62-57930

PLATE

26

01010-80825

BOLT

|26

01010-50825

BOLT

27

01643-30823

WASHER

28

07002-02434

O-RING

29

07235-10628

ELBOW

30

07102-20605

HOSE

31

07002-02034

O-RING

32

07235-10315

ELBOW

33

07102-20306

HOSE

34

07222-00210

PLUG

35

07221-20210

NUT
