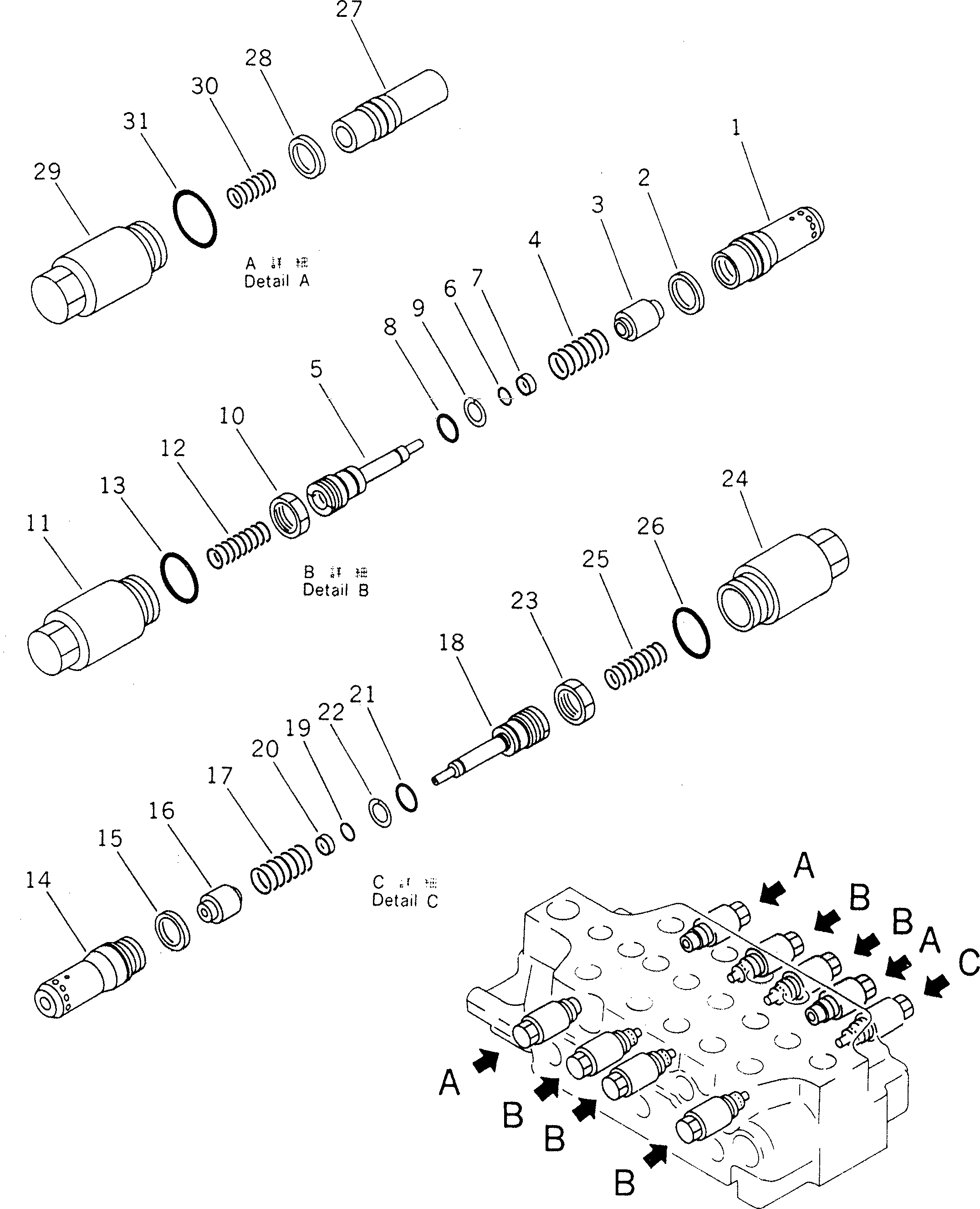

Запчасти Komatsu PC1600-1 ОСНОВН. КЛАПАН (/) (5-СЕКЦИОНН.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-15-91201

VALVE ASS'Y

|$3

709-90-63401

VALVE ASS'Y,SUCTION AND SAFETY

|$4

709-90-63400

VALVE ASS'Y,SUCTION AND SAFETY

1

VALVE

2

SEAL

3

POPPET

4

SPRING

5

PISTON

6

O-RING

7

SEAL

8

O-RING

9

RING,BACK-UP

10

NUT

10

NUT

11

700-90-61211

SLEEVE

12

700-90-61170

SPRING

13

07002-03634

O-RING

|$19

709-90-63301

VALVE ASS'Y,SUCTION AND SAFETY

|$20

709-90-63300

VALVE ASS'Y,SUCTION AND SAFETY

14

VALVE

15

SEAL

16

POPPET

17

SPRING

18

PISTON

19

O-RING

20

SEAL

21

O-RING

22

RING,BACK-UP

23

NUT

23

NUT

24

700-90-61211

SLEEVE

25

700-90-61170

SPRING

26

07002-03634

O-RING

|$35

700-90-74001

VALVE ASS'Y,SUCTION

27

VALVE

28

SEAL

29

700-90-61211

SLEEVE

30

700-90-61170

SPRING

31

07002-03634

O-RING
