Запчасти Komatsu PC1600-1 ОСНОВН. КЛАПАН (/) (5-СЕКЦИОНН.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

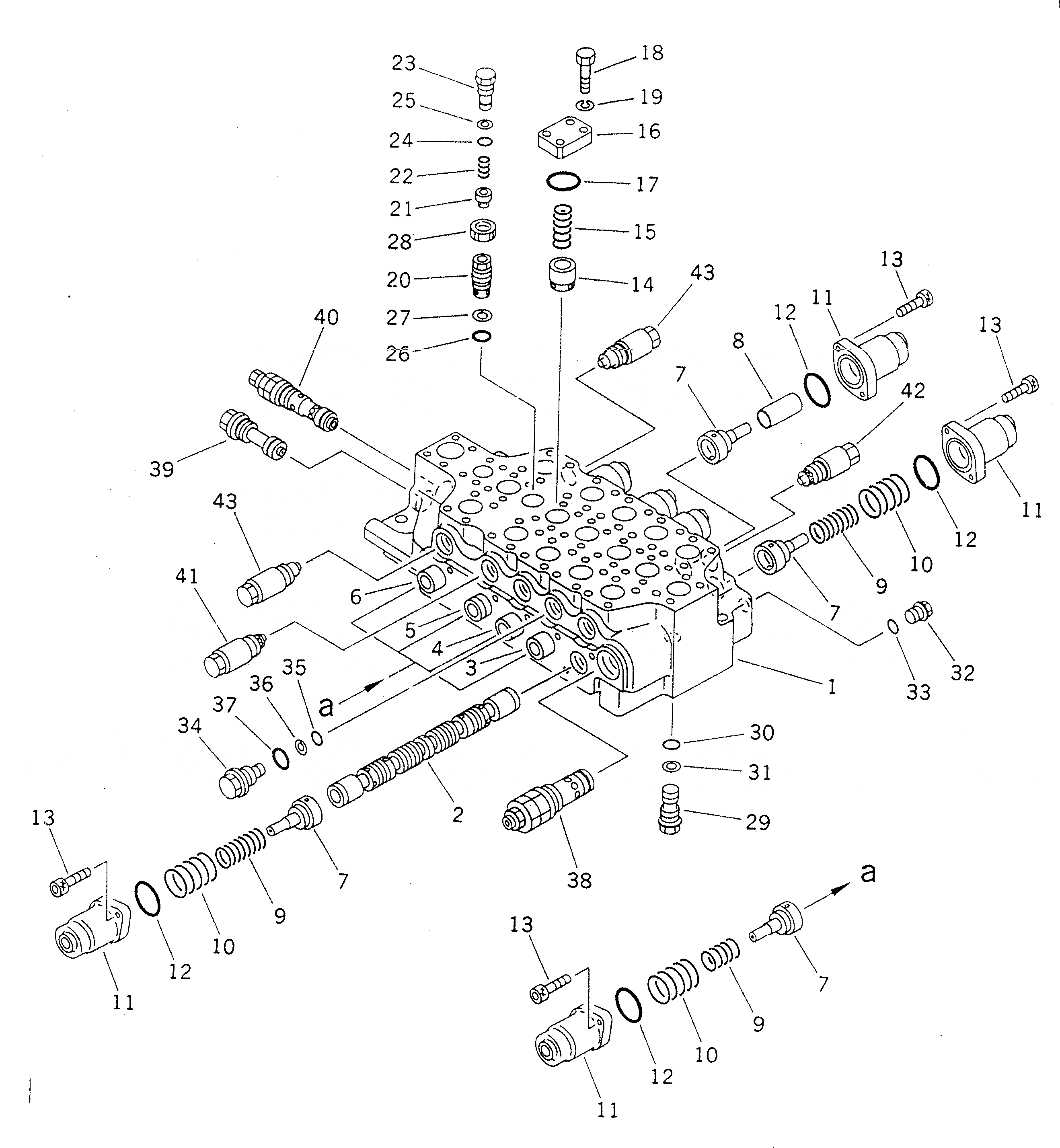

Схема запчастей Komatsu PC1600-1 - ОСНОВН. КЛАПАН (/) (5-СЕКЦИОНН.) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

|$1

709-15-91201

VALVE ASS'Y

|$4

709-15-00030

BODY ASS'Y

1

BODY

1

BODY

2

SPOOL,BOTTOM

3

SPOOL,BOOM

4

SPOOL,ARM

5

SPOOL,BUCKET

6

SPOOL,L.H. TRAVEL

7

709-14-11530

RETAINER

8

709-14-11540

TUBE

9

709-14-11560

SPRING,INNER

10

709-14-11550

SPRING,OUTER

11

709-14-11520

CASE

12

07000-02065

O-RING

13

01252-31035

BOLT

14

709-12-11411

VALVE,CHECK

15

709-12-11430

SPRING

16

709-12-12440

PLATE

17

07000-13048

O-RING

18

01010-81250

BOLT

19

01602-21236

WASHER,SPRING

20

709-10-91320

SLEEVE

21

706-73-70140

VALVE,CHECK

22

706-73-70150

SPRING

23

709-74-92450

PLUG

24

07000-12010

O-RING

25

07001-02010

RING,BACK-UP

26

700-93-11320

O-RING

27

700-93-11330

RING,BACK-UP

28

709-74-92460

NUT

29

709-14-11510

PLUG

30

700-80-61260

O-RING

31

700-80-61430

RING,BACK-UP

32

700-22-11370

PLUG

33

07002-02434

O-RING

34

700-94-11260

PLUG

35

07000-12018

O-RING

36

07001-02018

RING,BACK-UP

37

07002-03634

O-RING

38

709-10-52403

VALVE ASS'Y,RELIEF

39

709-10-92100

ORIFICE ASS'Y

40

709-10-55102

VALVE ASS'Y,RELIEF

40

709-10-55101

VALVE ASS'Y,RELIEF

41

709-90-63401

VALVE ASS'Y,SUCTION AND SAFETY

41

709-90-63400

VALVE ASS'Y,SUCTION AND SAFETY

42

709-90-63301

VALVE ASS'Y,SUCTION AND SAFETY

42

709-90-63300

VALVE ASS'Y,SUCTION AND SAFETY

43

700-90-74001

VALVE ASS'Y,SUCTION

Выбрано товаров: 49
