Запчасти Komatsu PC1600-1 ЦИЛИНДР СТРЕЛЫ(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

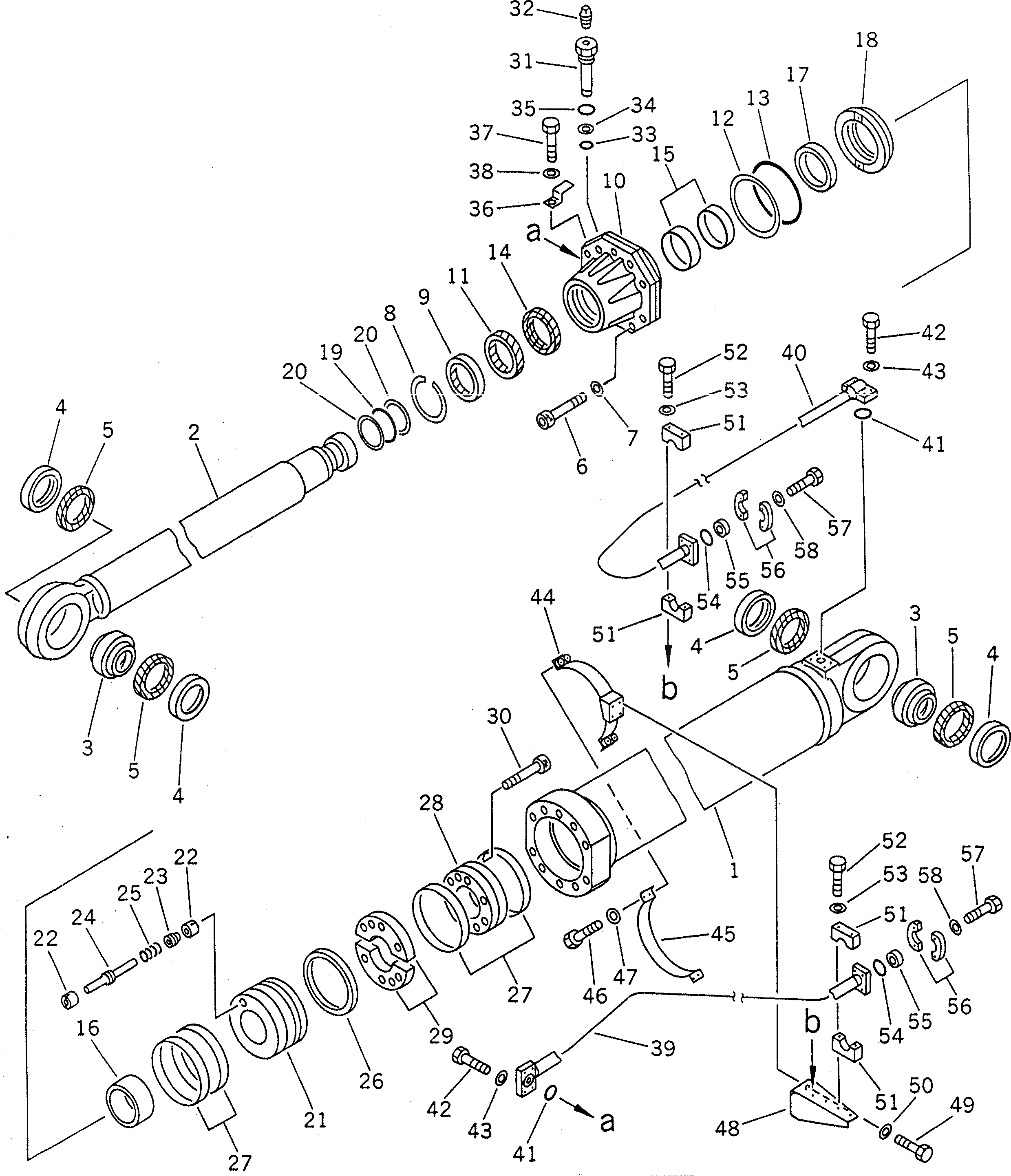

Схема запчастей Komatsu PC1600-1 - ЦИЛИНДР СТРЕЛЫ(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

G-1

707-01-XZ600

CYLINDER GROUP,L.H. (FINAL COATING)

G-1

21T-63-X2150

CYLINDER GROUP,L.H.

G-2

707-01-XZ610

CYLINDER GROUP,R.H. (FINAL COATING)

G-2

21T-63-X2160

CYLINDER GROUP,R.H.

|$6

21T-63-02150

CYLINDER ASS'Y

1

21T-63-52440

CYLINDER

2

21T-63-52420

ROD

3

707-46-16010

BUSHING

4

707-46-16020

BUSHING

5

707-77-16010

SEAL (KIT)

6

01253-33650

BOLT

7

707-41-10270

WASHER

8

07179-15205

RING

9

568-63-22620

SEAL (KIT)

10

707-28-28040

HEAD

11

707-51-19130

PACKING,ROD (KIT)

12

07001-05280

RING (KIT)

13

07000-15280

O-RING

14

707-51-19630

RING,BUFFER (KIT)

15

707-52-91660

BUSHING

16

707-71-62050

PLUNGER

17

707-71-20510

RING

18

707-71-40520

COLLAR

19

07000-15165

O-RING (KIT)

20

707-35-91750

RING,BACK-UP (KIT)

|$27

707-91-02830

PISTON SUB ASS'Y

21

707-37-28050

PISTON

22

195-63-12471

SEAT

23

707-83-10120

VALVE,PISTON

24

707-83-10110

VALVE,PISTON

25

707-80-12010

SPRING

26

707-44-28180

RING,PISTON (KIT)

27

707-39-28820

RING,WEAR (KIT)

28

707-37-28020

PISTON

29

707-40-28970

SPACER

30

01253-31815

BOLT

31

707-71-75510

CAPILLARY

32

07042-20108

PLUG

33

07000-12014

O-RING (KIT)

34

07001-02014

RING,BACK-UP (KIT)

35

07002-12434

O-RING

36

707-88-88660

COVER

37

01010-51020

BOLT

38

01643-31032

WASHER

39

21T-63-52470

TUBE,L.H.

39

21T-63-52570

TUBE,R.H.

40

21T-62-78450

TUBE,L.H.

40

21T-62-78460

TUBE,R.H.

41

07000-13048

O-RING (KIT)

42

01010-51450

BOLT

43

01643-31445

WASHER

44

707-88-96610

BRACKET

45

21T-62-73161

BAND

46

01010-51250

BOLT

47

01643-31232

WASHER

48

21T-62-78490

BRACKET

49

01010-51230

BOLT

50

01643-31232

WASHER

51

176-61-41330

CLAMP

52

01010-51290

BOLT

53

01643-31232

WASHER,(FOR SHIPPING)

54

07000-13048

O-RING,(FOR SHIPPING)

55

07378-11410

HEAD,(FOR SHIPPING)

56

07371-51470

FLANGE,(FOR SHIPPING)

57

01010-51455

BOLT,(FOR SHIPPING)

58

01643-31445

WASHER,(FOR SHIPPING)

|$69

707-99-87660

SERVICE KIT

Выбрано товаров: 67
