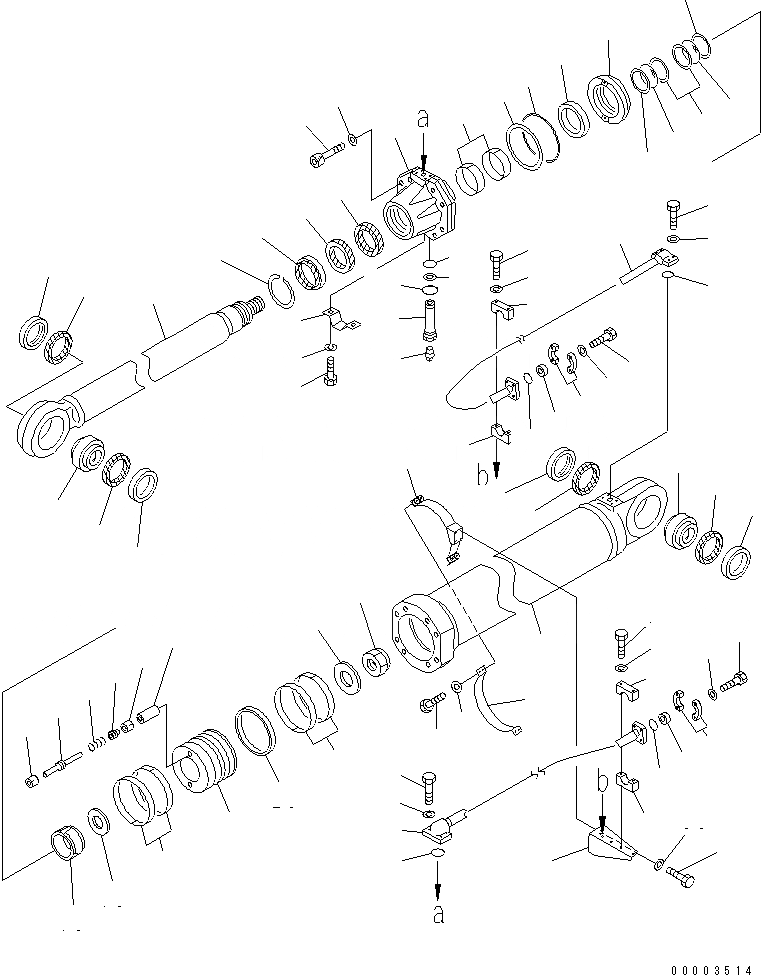

Запчасти Komatsu PC1600-1 ЦИЛИНДР СТРЕЛЫ(№-9) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
G1
21T-63-X2010
CYLINDER GROUP,L.H.
G2
21T-63-X2020
CYLINDER GROUP,R.H.
|$3
21T-63-02011
CYLINDER ASS'Y
1
21T-63-52341
CYLINDER
2
21T-63-52122
ROD
3
707-46-16010
BUSHING
4
707-46-16020
BUSHING
5
707-77-16020
SEAL (KIT)
6
01253-33625
BOLT
6
01253-33615
BOLT
6A
707-41-10270
WASHER
7
707-75-19012
RING
8
568-63-22620
SEAL (KIT)
9
707-28-28022
HEAD
9
707-28-28020
HEAD
10
707-51-19130
PACKING,ROD (KIT)
11
07001-05280
RING (KIT)
12
07000-15280
O-RING (KIT)
13
707-51-19630
RING,BUFFER (KIT)
14
707-52-91660
BUSHING
14
568-63-22390
BUSHING
15
07000-15150
O-RING (KIT)
16
07001-05150
RING (KIT)
17
707-40-28810
RETAINER
18
707-40-28820
RETAINER
19
707-71-60011
PLUNGER
20
707-71-20010
RING
21
707-71-40011
COLLAR
|$29
707-91-92891
PISTON SUB ASS'Y
22
707-37-28911
PISTON
23
175-63-12650
SEAT
24
707-83-10140
VALVE,PISTON
25
707-83-10130
VALVE,PISTON
26
707-80-11610
SPRING
27
707-83-10150
SPACER
28
707-44-28180
RING,PISTON (KIT)
28
707-44-28080
RING,PISTON (KIT)
29
707-39-28820
RING,WEAR
30
19M-63-52271
NUT
31
707-71-75510
CAPILLARY
32
07042-20108
PLUG
33
07000-12014
O-RING (KIT)
34
07001-02014
RING,BACK-UP (KIT)
35
07002-12434
O-RING (KIT)
36
21T-62-78470
TUBE,L.H.
36
21T-62-78480
TUBE,R.H.
37
21T-62-78450
TUBE,L.H.
37
21T-62-78460
TUBE,R.H.
38
01010-51450
BOLT
39
01643-31445
WASHER
40
07000-13048
O-RING (KIT)
41
707-88-96610
BRACKET
42
21T-62-73161
BAND
43
01010-51250
BOLT
44
01643-31232
WASHER
45
707-88-10510
COVER
46
01010-51020
BOLT
47
01602-21030
WASHER
48
21T-62-78490
BRACKET
49
01010-51230
BOLT
50
01643-31232
WASHER
51
176-61-41330
CLAMP
52
01010-51290
BOLT
52
01010-51285
BOLT
53
07000-13048
O-RING,(FOR SHIPPING)
54
07378-11410
HEAD,(FOR SHIPPING)
55
07371-51470
FLANGE,(FOR SHIPPING)
56
01010-51455
BOLT,(FOR SHIPPING)
57
01643-31445
WASHER,(FOR SHIPPING)
|$71
707-99-87600
SERVICE KIT
