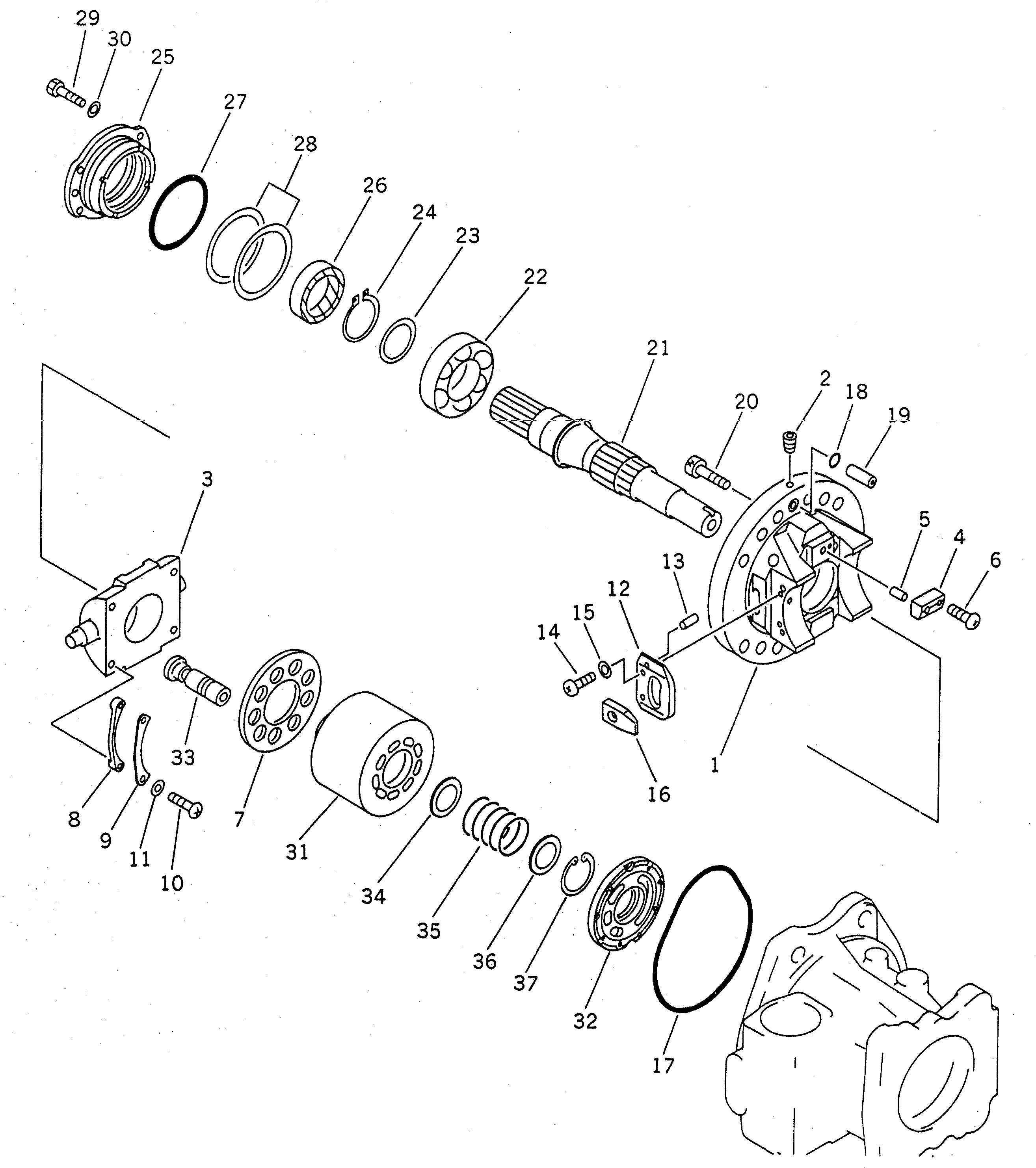

Запчасти Komatsu PC1600-1 ОСНОВН. НАСОС (/7) (ПОВОРОТН. НАСОС) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$3
708-17-01012
PUMP ASS'Y
|$4
708-17-01011
PUMP ASS'Y
|$5
708-17-01010
PUMP ASS'Y
|$7
708-17-01140
PUMP SUB ASS'Y
|$8
708-17-01110
PUMP SUB ASS'Y
|$9
708-17-21100
PUMP SUB ASS'Y
|$10
708-27-00212
CRADLE ASS'Y
|$11
708-27-00211
CRADLE ASS'Y
|$12
4708-27-00210
CRADLE ASS'Y
|$14
708-27-00380
CRADLE SUB ASS'Y
1
CRADLE
2
PLUG
3
708-27-13412
CAM,ROCKER
3
708-27-13411
CAM,ROCKER
3
4708-27-13410
CAM,ROCKER
4
708-27-12350
STOPPER
5
04020-00820
PIN,DOWEL
6
706-75-42270
SCREW
7
708-27-13342
RETAINER,SHOE
7
4708-27-13341
RETAINER,SHOE
8
708-27-05051
SPACER KIT
8
SPACER
8
SPACER
8
SPACER
9
708-27-13420
RETAINER,BEARING
10
708-27-13480
SCREW
11
01643-30823
WASHER
12
708-27-12330
PLATE
13
04020-00820
PIN,DOWEL
14
708-27-12340
SCREW
15
01643-30823
WASHER
16
708-27-14121
SLIDER
16
708-27-14120
SLIDER
17
708-27-12130
O-RING
18
07000-12015
O-RING
19
708-25-12330
JOINT
20
01252-61440
BOLT
21
708-17-22710
SHAFT
22
708-27-12730
BEARING
23
708-17-05010
WASHER KIT
23
WASHER, 3.0MM
23
WASHER, 3.1MM
23
WASHER, 3.2MM
24
708-17-12780
RING,SNAP
25
708-17-12790
HOUSING
26
708-27-22810
SEAL,OIL
27
07000-02105
O-RING
28
708-27-05010
SHIM KIT
28
SHIM, 0.50MM
28
SHIM, 0.10MM
28
SHIM, 0.15MM
29
01010-80820
BOLT
29
01010-30820
BOLT
30
01643-30823
WASHER
|$62
708-27-00360
CYLINDER BLOCK A.
|$63
708-27-00282
CYLINDER BLOCK A.
|$66
708-27-00280
CYLINDER BLOCK A.
31
708-27-13112
CYLINDER BLOCK
32
708-27-23230
VALVE PLATE,PLATE
32
708-27-23221
VALVE PLATE,PLATE
32
708-27-23220
VALVE PLATE,PLATE
33
708-27-13314
PISTON SUB ASS'Y,PLATE
33
4708-27-13312
PISTON SUB ASS'Y
33
4708-27-13311
PISTON SUB ASS'Y
34
708-27-13120
WASHER
35
708-27-13140
SPRING
36
708-27-13130
RETAINER
37
708-27-13150
RING,SNAP
Выбрано товаров: 68
