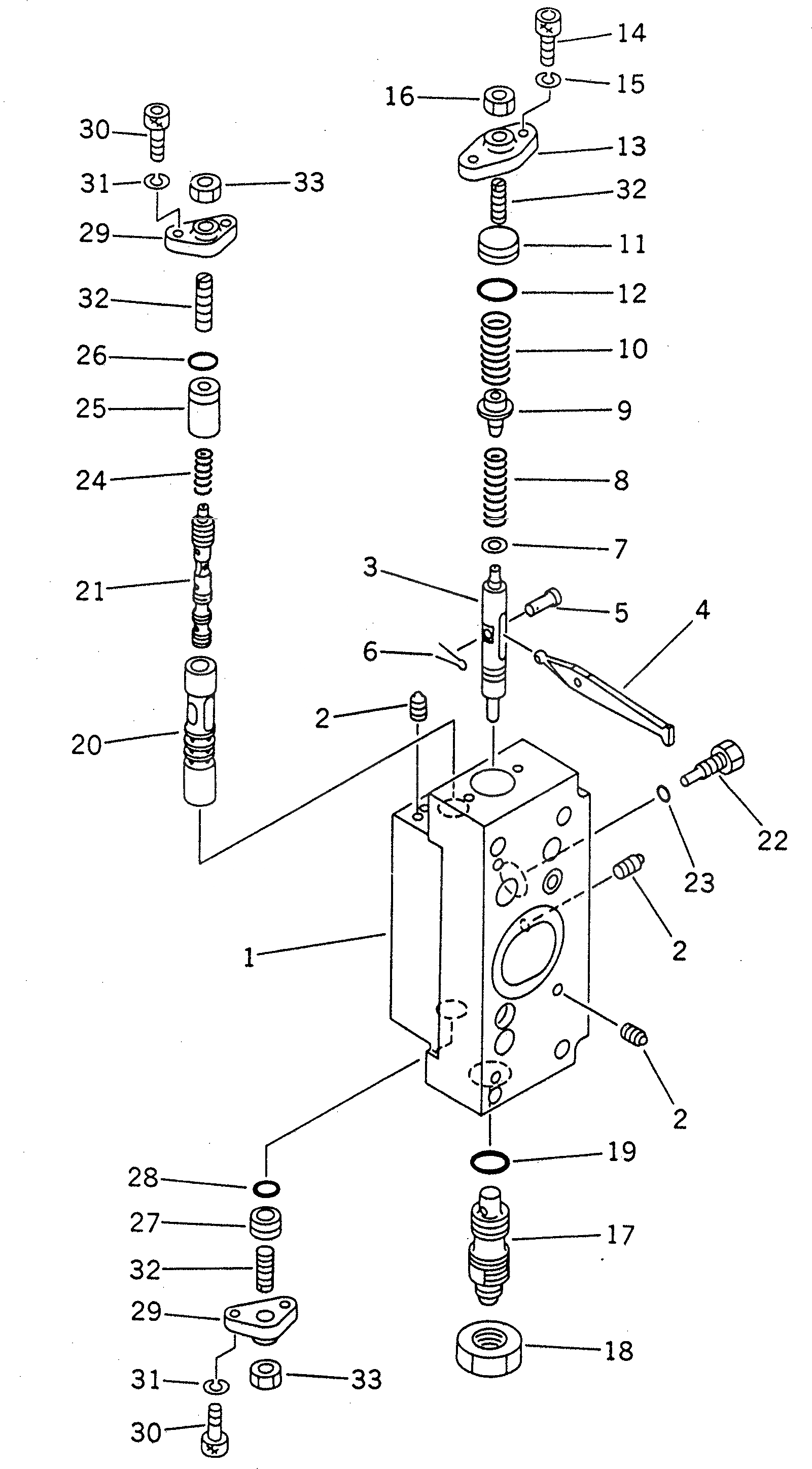

Запчасти Komatsu PC1600-1 ОСНОВН. НАСОС (/) (NO. НАСОС) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$2
708-25-02051
PUMP ASS'Y
|$3
708-25-02050
PUMP ASS'Y
|$5
708-25-08230
SERVO VALVE ASS'Y,REAR
|$6
708-25-08430
SERVO VALVE SUB A.
|$7
708-23-07021
BODY ASS'Y
1
BODY
2
EXPANDER
3
708-25-15120
PISTON
4
708-25-15270
ARM
5
04205-00514
PIN
6
04050-01210
PIN,COTTER
7
708-25-15130
SEAT
8
708-25-55130
SPRING
9
708-23-15120
SEAT
10
708-25-55120
SPRING
11
708-23-15160
PLUG
12
07000-02018
O-RING
13
708-25-15150
COVER
14
708-25-15320
BOLT
15
01602-20619
WASHER,SPRING
16
01580-10806
NUT
17
708-25-55170
PLUG
18
07239-12009
NUT
19
07002-02034
O-RING
20
708-25-15180
SLEEVE
21
708-25-15280
SPOOL
22
708-25-15260
PLUG
23
07002-00823
O-RING
24
708-25-15310
SPRING
25
708-25-15330
SPACER
26
07000-02012
O-RING
27
708-25-15430
PLUG
28
07000-02012
O-RING
29
708-25-15250
COVER
30
708-25-15320
BOLT
31
01602-20619
WASHER,SPRING
32
708-25-15340
SCREW
33
01580-10806
NUT
|$2
708-25-02051
PUMP ASS'Y
|$3
708-25-02050
PUMP ASS'Y
|$5
708-25-08230
SERVO VALVE ASS'Y,REAR
|$6
708-25-08430
SERVO VALVE SUB A.
|$7
708-23-07021
BODY ASS'Y
1
BODY
2
EXPANDER
3
708-25-15120
PISTON
4
708-25-15270
ARM
5
04205-00514
PIN
6
04050-01210
PIN,COTTER
7
708-25-15130
SEAT
8
708-25-55130
SPRING
9
708-23-15120
SEAT
10
708-25-55120
SPRING
11
708-23-15160
PLUG
12
07000-02018
O-RING
13
708-25-15150
COVER
14
708-25-15320
BOLT
15
01602-20619
WASHER,SPRING
16
01580-10806
NUT
17
708-25-55170
PLUG
18
07239-12009
NUT
19
07002-02034
O-RING
20
708-25-15180
SLEEVE
21
708-25-15280
SPOOL
22
708-25-15260
PLUG
23
07002-00823
O-RING
24
708-25-15310
SPRING
25
708-25-15330
SPACER
26
07000-02012
O-RING
27
708-25-15430
PLUG
28
07000-02012
O-RING
29
708-25-15250
COVER
30
708-25-15320
BOLT
31
01602-20619
WASHER,SPRING
32
708-25-15340
SCREW
33
01580-10806
NUT
Выбрано товаров: 76
