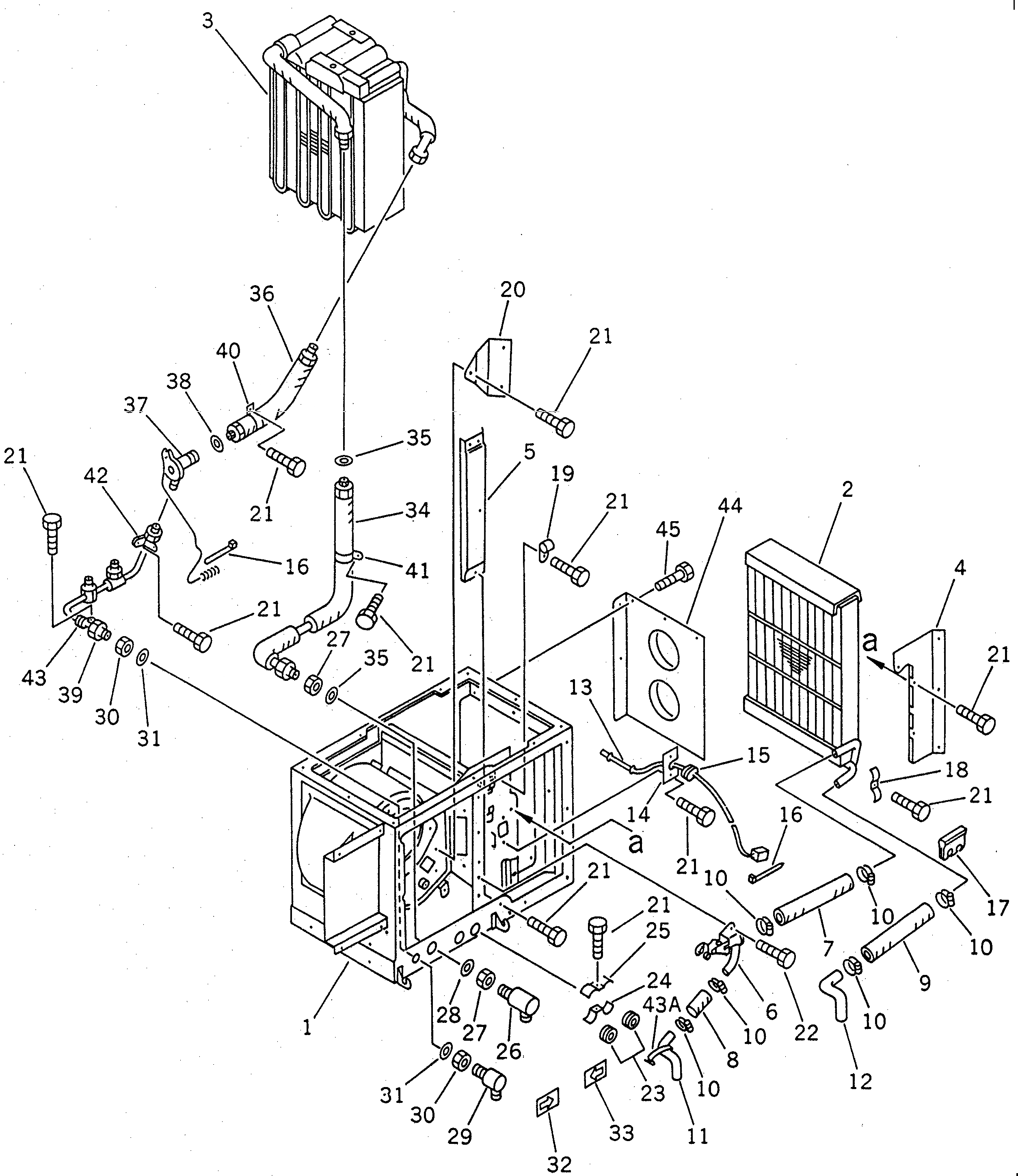

Запчасти Komatsu PC1600-1 БЛОК КОНДИЦИОНЕРА (/)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

G-1

21T-979-X100

AIR CONDITIONER G.,(LOW CAB)

|$2

195-Z11-5103

AIR CONDITIONER UNIT

|$3

195-Z11-5101

AIR CONDITIONER UNIT

|$5

195-Z11-5703

UNIT ASS'Y

|$6

195-Z11-5701

UNIT ASS'Y

1

195-Z11-5511

CASE ASS'Y

2

195-Z11-5520

RADIATOR ASS'Y

3

195-Z11-5530

EVAPORATOR ASS'Y

4

195-Z11-5680

COVER

5

195-Z11-5930

STAY

6

195-Z11-5740

VALVE ASS'Y

7

195-Z11-5760

HOSE

8

195-Z11-5770

HOSE

9

195-Z11-5750

HOSE

10

145-Z79-6560

CLIP

11

195-Z11-5820

PIPE

12

195-Z11-5830

PIPE

13

195-Z11-6230

THERMISTOR

14

195-Z11-6160

BRACKET

15

195-Z11-6170

GROMMET

16

195-Z11-5950

BAND

17

195-Z11-5780

GROMMET

18

195-Z11-6120

CLAMP

19

195-Z11-7160

CLAMP

20

195-Z11-5910

COVER

21

01010-50616

BOLT

22

01010-50816

BOLT

23

195-Z11-5790

GROMMET

24

195-Z11-5970

CLAMP

25

195-Z11-6110

CLAMP

26

195-Z11-6310

ELBOW

27

195-Z11-5620

NUT

28

195-Z11-5630

WASHER

29

195-Z11-5640

ELBOW

30

195-Z11-5650

NUT

31

195-Z11-5660

WASHER

32

ND146741-2680

ORNAMENT

33

ND146741-2570

ORNAMENT

34

195-Z11-5610

TUBE,SUCTION

35

195-Z11-5730

PACKING

36

195-Z11-5850

TUBE

37

195-Z11-5710

VALVE,EXPANSION

38

195-Z11-7170

INSULATOR

39

195-Z11-5670

TUBE

40

195-Z11-5980

CLIP

41

195-Z11-6130

CLAMP

42

195-Z11-6140

CLAMP

43

195-Z11-5990

CLIP

43A

195-Z11-5720

HOLDER

44

195-Z11-6291

DUCT,AIR

45

01010-50816

BOLT
