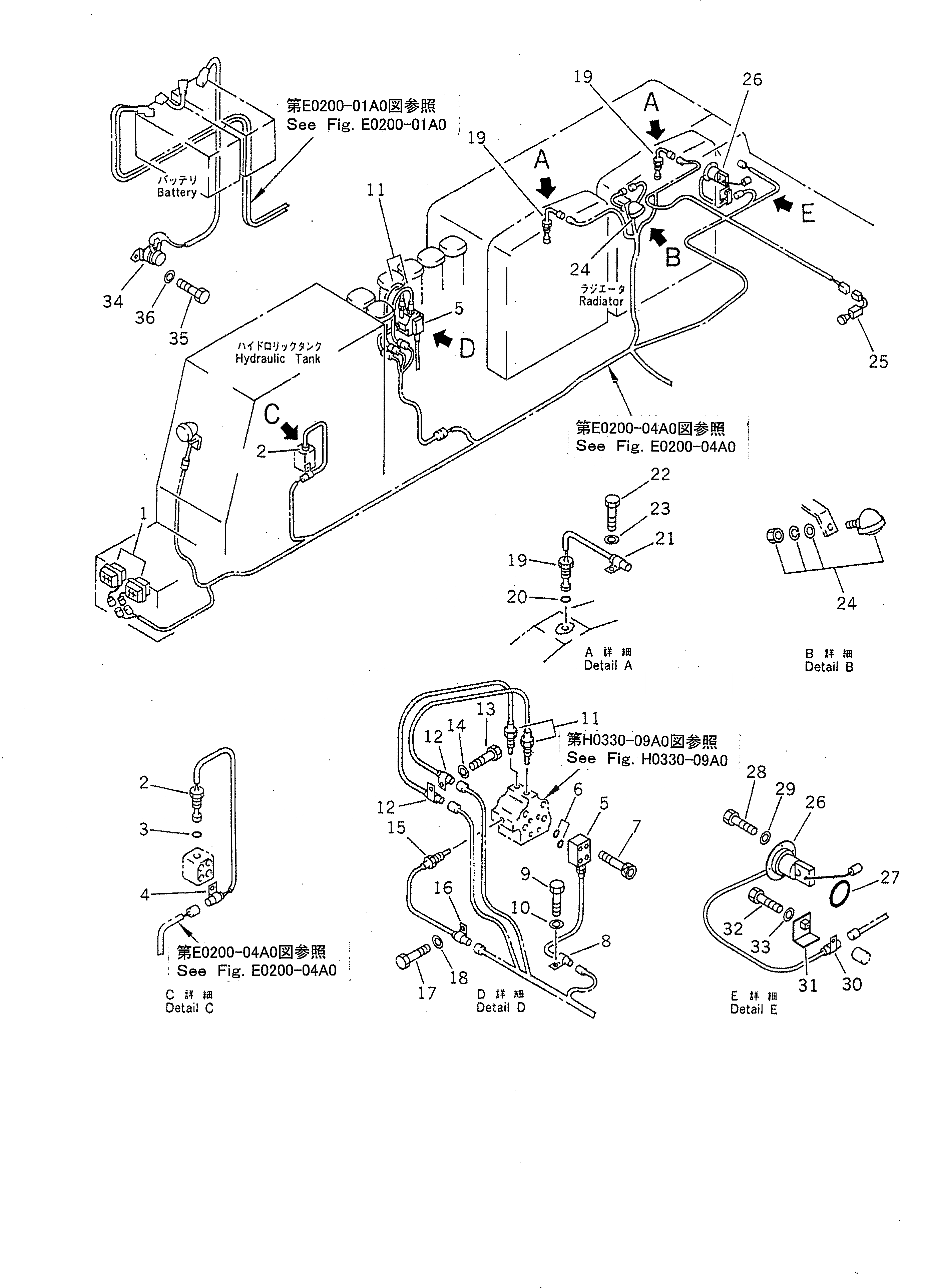

Запчасти Komatsu PC1600-1-A ЭЛЕКТРИКА (КОМПОНЕНТЫ) ЭЛЕКТРИКА

1

17A-06-17920

WORK LAMP ASS'Y

|1

203-06-56140

LAMP ASS'Y

|1

922W-06-12381

LAMP ASS'Y

|1

22W-06-12170

BULB

2

7861-91-4520

SENSOR,HYDRAULIC OIL LEVEL

3

07002-23634

O-RING

4

195-06-41820

CLIP

5

7830-11-3201

SENSOR,HYDRAULIC OIL TEMP (LOW)

6

07000-02014

O-RING

7

01252-40640

BOLT

8

195-06-41820

CLIP

9

01010-81220

BOLT

|9

01010-51225

BOLT

10

01643-31232

WASHER

11

21T-06-25510

SENSOR,HYDRAULIC OIL TEMP (LOW)

12

195-06-41820

CLIP

13

01010-81225

BOLT

|13

01010-51225

BOLT

14

01643-31232

WASHER

15

7861-99-3400

SENSOR,HYDRAULIC OIL TEMP (HIGH)

16

08036-01414

CLIP

17

01010-81225

BOLT

|17

01010-51225

BOLT

18

01643-31232

WASHER

19

7861-91-4510

SENSOR,WATER LEVEL

20

07002-23634

O-RING

21

195-06-41820

CLIP

22

01010-81020

BOLT

|22

01010-51020

BOLT

23

01643-31032

WASHER

24

08138-02400

LAMP ASS'Y

|24

08105-12420

BULB¤ 25W

25

08061-40041

SWITCH

26

7861-91-4700

SENSOR,FUEL LEVEL

27

07000-02085

O-RING

28

01010-81025

BOLT

|28

01010-51025

BOLT

29

01643-31032

WASHER

30

195-06-41820

CLIP

31

21T-06-71960

COVER

32

01010-81245

BOLT

|32

01010-51245

BOLT

33

01643-31232

WASHER

34

08088-10000

SWITCH

35

01010-80820

BOLT

|35

01010-50820

BOLT

36

01643-30823

WASHER
