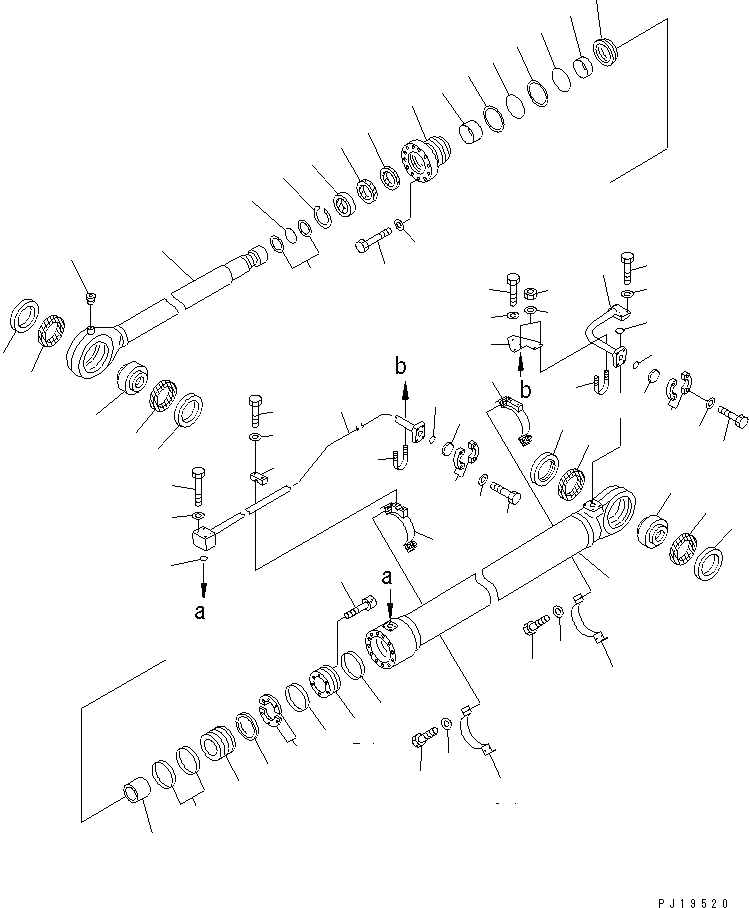

Запчасти Komatsu PC1600-1-A ЦИЛИНДР КОВША(№7-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

21T-63-X2230

CYLINDER GROUP,L.H.

G-1

21T-63-X2240

CYLINDER GROUP,R.H.

|1

21T-63-02230

CYLINDER ASS'Y

1

21T-63-77340

CYLINDER

2

21T-63-77320

ROD,PISTON

3

707-46-14010

BUSHING

4

21T-72-15850

BUSHING

5

707-46-14020

BUSHING

6

21T-72-15870

SEAL

7

707-75-14020

RING,SNAP

8

707-56-14110

SEAL,DUST

9

707-28-20660

HEAD,CYLINDER

10

707-51-14130

PACKING,ROD

11

707-35-92050

RING,BACK-UP

12

07000-15195

O-RING

13

07001-05195

RING,BACK-UP

14

707-51-14630

RING

15

707-52-91150

BUSHING

16

01010-82795

BOLT

17

01643-32780

WASHER

18

707-71-31460

COLLAR

19

707-71-11450

RING

20

707-71-51480

PLUNGER

21

07000-12115

O-RING

22

707-35-52860

RING,BACK-UP

23

707-36-20410

PISTON

24

707-37-20020

PISTON

25

707-44-20180

RING,PISTON

26

707-39-20820

RING,WEAR

27

707-40-20960

SPACER

28

01252-31490

BOLT

29

07043-00108

PLUG

30

21T-63-77370

TUBE,L.H.

|30

21T-63-77470

TUBE,R.H.

31

21T-63-77380

TUBE,L.H.

|31

21T-63-77480

TUBE,R.H.

32

707-88-87380

BRACKET

33

707-88-87390

BRACKET

34

707-88-95210

BAND

35

01010-51240

BOLT

36

01643-31232

WASHER

37

07000-13038

O-RING

38

01010-51280

BOLT

39

01643-31232

WASHER

40

07000-13048

O-RING

41

01010-51450

BOLT

42

01643-31445

WASHER

43

707-88-11730

CLAMP

44

01010-51250

BOLT

45

01643-31232

WASHER

46

707-88-88490

PLATE

47

01010-51225

BOLT

48

01643-31232

WASHER

49

07283-24346

CLIP

50

01599-01011

NUT

51

01643-31032

WASHER

52

07000-13048

O-RING,(FOR SHIPPING)

53

07378-11410

HEAD,(FOR SHIPPING)

54

07371-51470

FLANGE,(FOR SHIPPING)

55

01010-51455

BOLT,(FOR SHIPPING)

56

01643-31445

WASHER,(FOR SHIPPING)
