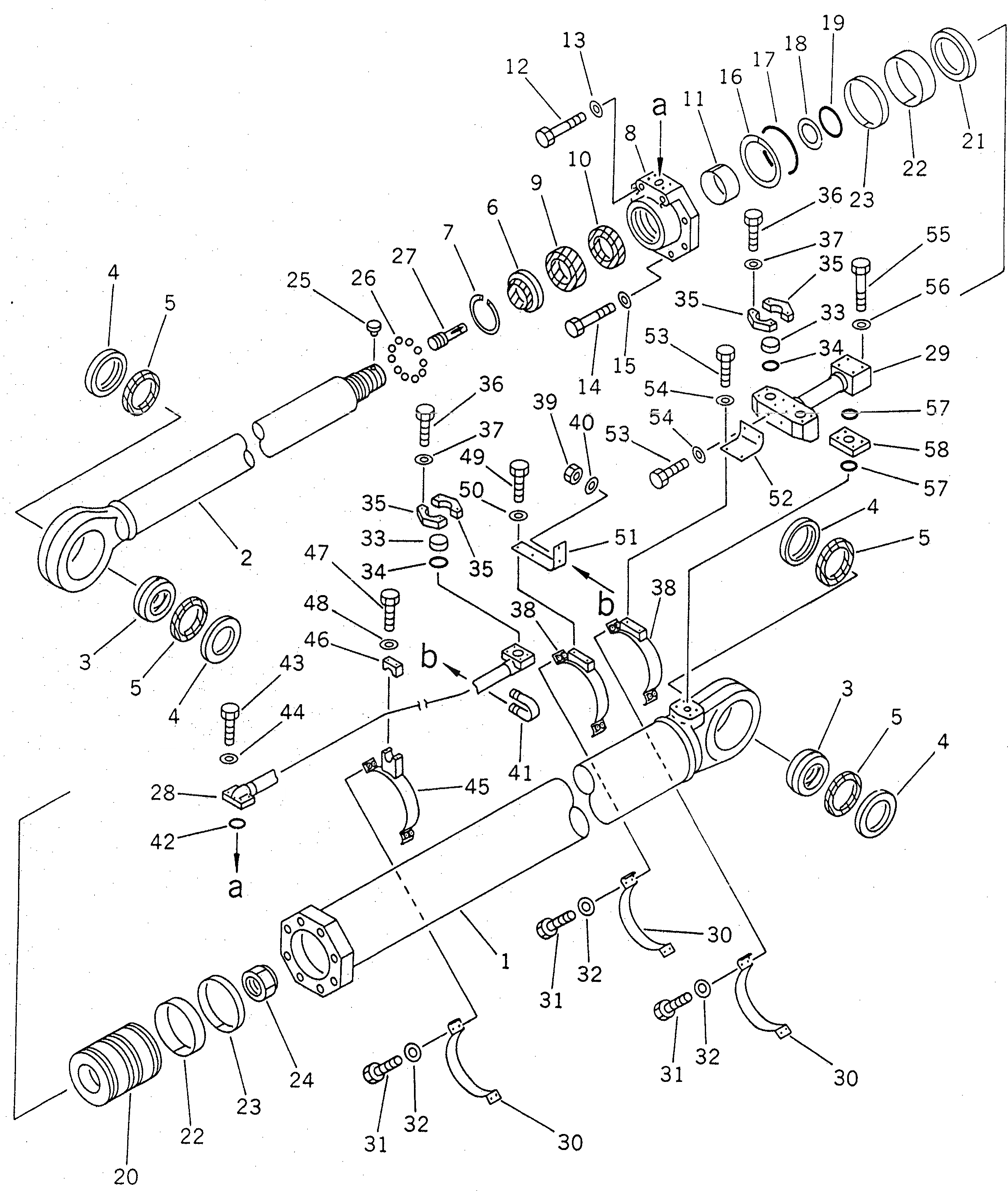

Запчасти Komatsu PC1600-1-A ЦИЛИНДР РУКОЯТИ(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

21T-63-X2100

CYLINDER GROUP,L.H.

G-1

21T-63-X2090

CYLINDER GROUP,R.H.

|1

21T-63-02090

CYLINDER ASS'Y

1

21T-63-67140

CYLINDER

2

21T-63-67120

ROD

3

21T-72-15850

BUSHING

4

707-46-14020

BUSHING

5

21T-72-15870

SEAL,DUST

6

707-56-16110

SEAL,DUST

7

707-75-16020

RING,SNAP

8

707-27-25020

HEAD,CYLINDER

9

707-51-16130

PACKING,ROD

10

707-51-16630

RING,BUFFER

11

707-52-11610

BUSHING

12

01011-83050

BOLT

13

01643-33080

WASHER

14

01011-83010

BOLT

15

01643-33080

WASHER

16

07146-05242

RING,BACK-UP

17

07000-15240

O-RING

18

07001-05100

RING,BACK-UP

19

07000-15100

O-RING

20

707-36-25931

PISTON

21

707-44-25080

RING,PISTON

22

07155-02555

RING,WEAR

23

707-39-25911

RING,WEAR

24

19M-63-52271

NUT

25

707-71-91260

CAP

26

04260-01270

BALL

27

707-71-50371

PLUNGER

28

21T-63-67170

TUBE,L.H.

|28

21T-63-67270

TUBE,R.H.

29

21T-63-67180

TUBE

30

707-99-96710

BAND

31

01010-51240

BOLT

32

01643-31232

WASHER

33

07378-11410

HEAD

34

07000-13048

O-RING

35

07371-51470

FLANGE

36

01010-41455

BOLT

37

01643-31445

WASHER

38

707-88-96700

BRACKET

39

01599-01011

NUT

40

01643-31032

WASHER

41

07283-24354

CLIP

42

07000-13048

O-RING

43

01010-51450

BOLT

44

01643-31445

WASHER

45

707-88-96690

BRACKET

46

707-88-11730

CLAMP

47

01010-51250

BOLT

48

01643-31232

WASHER

49

01010-51230

BOLT

50

01643-31232

WASHER

51

707-88-11740

BRACKET

52

707-88-11750

BRACKET

53

01010-51230

BOLT

54

01643-31232

WASHER

55

01011-51630

BOLT

56

01643-31645

WASHER

57

07000-12060

O-RING

58

707-88-98840

FLANGE
