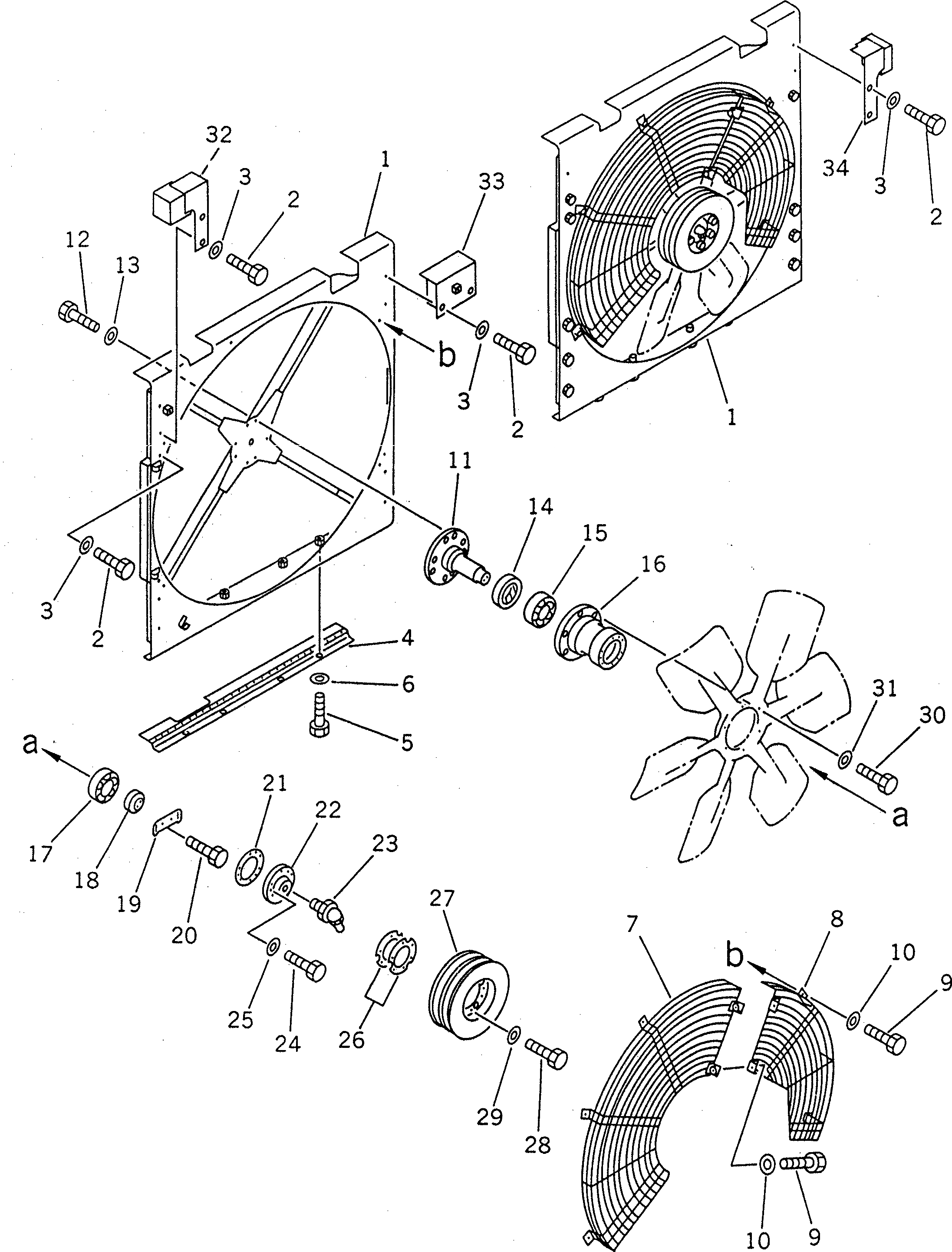

Запчасти Komatsu PC1600-1-A РЕШЕТКА ВЕНТИЛЯТОРА РАДИАТОРА(№-8) СИСТЕМА ОХЛАЖДЕНИЯ

1

21T-919-1340

GUARD

2

01010-51255

BOLT

3

175-54-34170

WASHER

4

21T-919-1370

BRAKER,WIND

5

01010-51025

BOLT

6

01643-31032

WASHER

7

21T-919-1350

NET

8

21T-919-1360

NET

9

01010-51225

BOLT

10

01643-31232

WASHER

11

209-03-21120

SHAFT

12

01010-51235

BOLT

13

01643-51232

WASHER

14

07011-10100

SEAL,OIL

15

06040-06213

BEARING

16

21T-919-1420

DRUM

17

06040-06310

BEARING

18

195-03-11840

HOLDER

19

195-03-11850

LOCK,LOCK

20

01010-51030

BOLT

21

209-03-11171

GASKET

|21

209-03-11170

GASKET

22

21T-919-1330

COVER

23

07020-00675

FITTING,GREASE

24

01010-51030

BOLT

25

01643-31032

WASHER

26

195-03-11880

SHIM¤ 1.0MM

27

21T-919-1321

PULLEY

|27

21T-919-1320

PULLEY

28

01010-51260

BOLT

29

01643-31232

WASHER

30

01010-51240

BOLT

31

01643-31232

WASHER

32

21T-03-71351

COVER

|32

21T-03-71350

COVER

33

21T-03-71361

COVER

|33

21T-03-71360

COVER

34

21T-03-71371

COVER

|34

21T-03-71370

COVER
