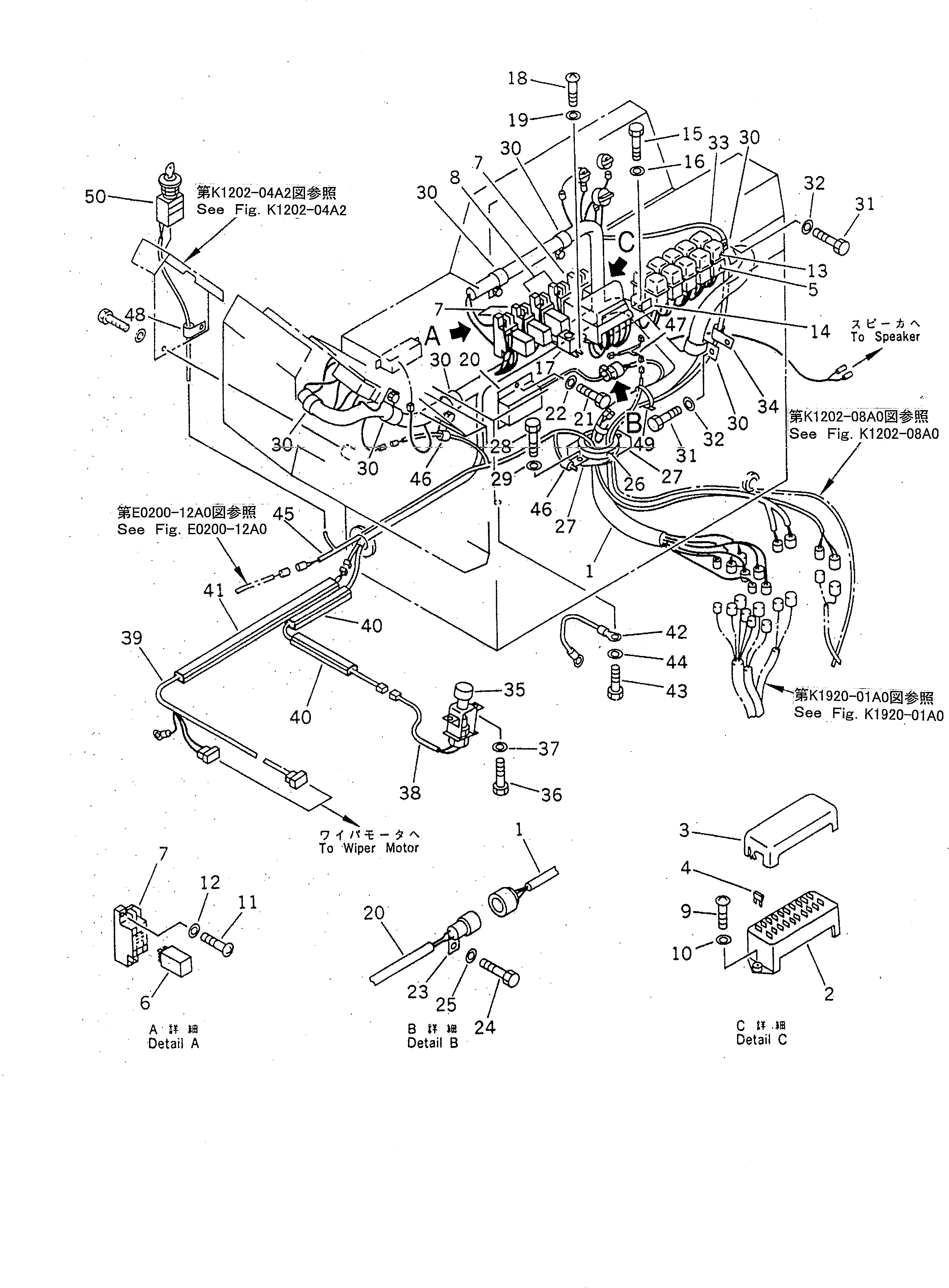

Запчасти Komatsu PC1600-1-A ПАНЕЛЬ ПРИБОРОВ (/)(№-7) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

21T-06-71512

WIRING HARNESS

2

21T-06-71480

BOX

3

21T-06-71490

COVER

4

283-06-16190

FUSE¤ 10A

|4

22W-06-13160

FUSE¤ 20A

5

22W-06-13460

CONNECTOR

6

21T-06-57120

RELAY

7

209-06-12420

SOCKET

8

209-06-12390

RELAY ASS'Y

9

01220-40620

SCREW

10

01641-20608

WASHER

11

01220-40416

SCREW

12

01641-20405

WASHER

13

21T-06-71760

RELAY ASS'Y

14

21T-06-71551

BRACKET

15

01010-50612

BOLT

16

01643-30623

WASHER

17

207-06-31160

BUZZER

18

01220-40412

SCREW

19

01642-20405

WASHER

20

21T-06-71690

TIMER

21

01010-50612

BOLT

22

01643-30623

WASHER

23

08052-12411

CLIP

24

01010-50612

BOLT

25

01643-30623

WASHER

26

21T-06-73320

GROMMET

27

21T-919-1710

PLATE

28

01010-51030

BOLT

29

01643-31032

WASHER

30

08036-02514

CLIP

31

01010-51020

BOLT

32

01643-31032

WASHER

33

21T-979-7421

WIRING HARNESS

34

08036-00814

CLIP

35

21T-06-11901

SWITCH ASS'Y

36

01010-50812

BOLT

37

01643-30823

WASHER

38

209-06-21240

WIRING HARNESS

39

21T-06-71860

WIRING HARNESS

40

21T-06-71940

COVER

41

21T-06-71950

COVER

42

08028-12055

CABLE

43

01010-51025

BOLT

44

01643-31032

WASHER

45

21T-06-73270

WIRING HARNESS

46

08036-00814

CLIP

47

21T-06-73420

WIRING HARNESS

48

08036-11210

CLIP

49

08034-00519

BAND

50

21T-06-73110

SWITCH
