Запчасти Komatsu PC1600-1-A СТРЕЛА (MM) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

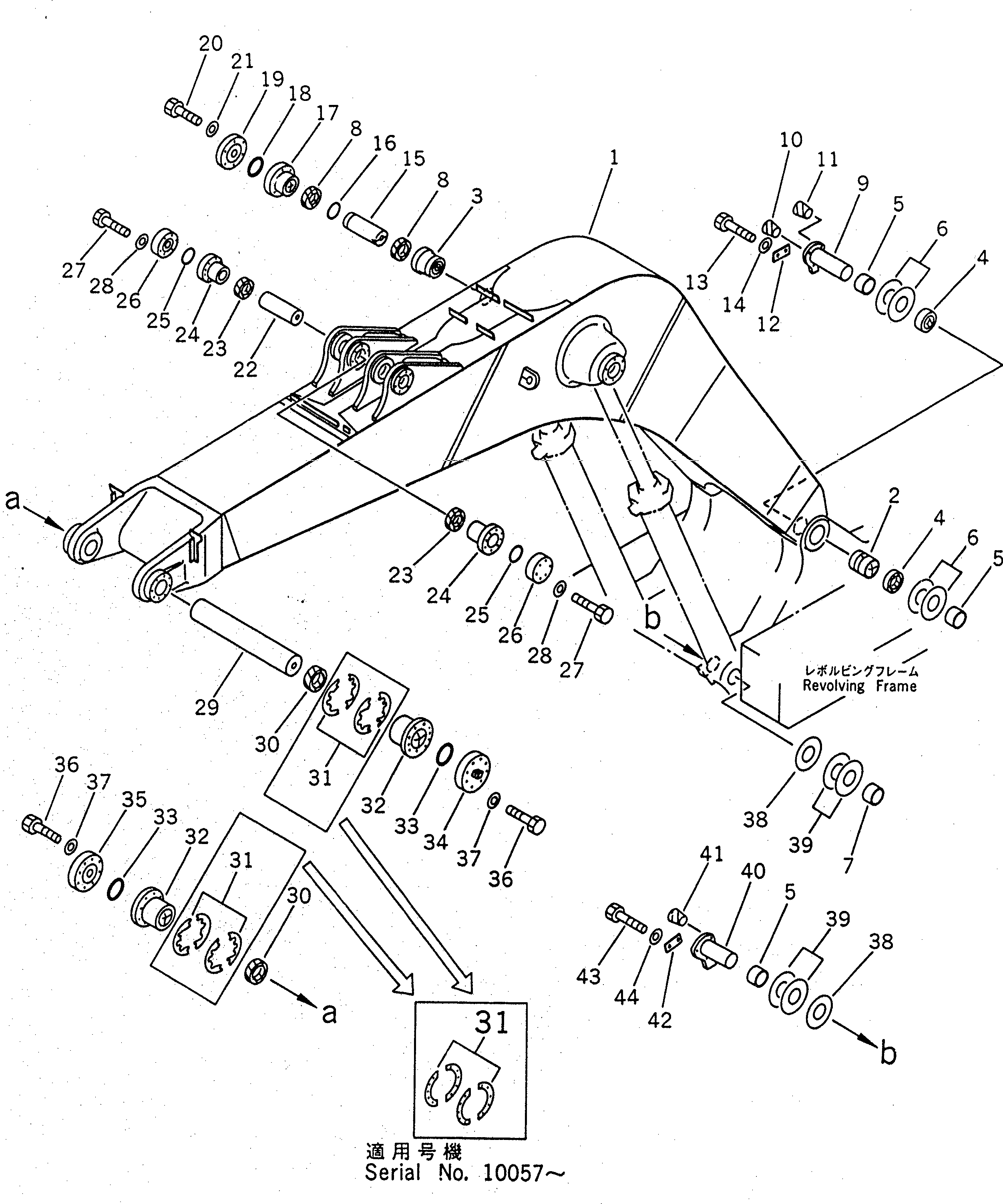

Схема запчастей Komatsu PC1600-1-A - СТРЕЛА (MM) ОСНОВНАЯ РАМА И ЕЕ ЧАСТИ

Артикул

Название

Примечание

Количество

|1

21T-919-0132

BOOM ASS'Y

|1

21T-919-0131

BOOM ASS'Y

|1

21T-919-0220

BOOM ASS'Y

|1

21T-919-0130

BOOM ASS'Y

1

BOOM

|1

BOOM

|1

BOOM

|1

BOOM

2

21T-70-71210

BUSHING

3

21T-70-11270

BUSHING

4

209-72-11311

SEAL

5

21T-70-71232

BUSHING

|5

21T-70-71230

BUSHING

6

21T-70-00060

SHIM ASS'Y

|6

SHIM¤ 1.0MM

|6

SHIM¤ 1.5MM

7

21T-70-71222

BUSHING

|7

21T-70-71220

BUSHING

8

21T-70-11240

SEAL

9

21T-919-7230

PIN

10

07049-03038

PLUG

11

07049-02430

PLUG

12

21T-919-7770

PLATE

13

01010-82455

BOLT

14

01643-32460

WASHER

15

21T-70-11250

PIN

16

07000-05150

O-RING

17

21T-70-11260

BUSHING

18

07000-05190

O-RING

19

21T-919-7250

COVER

20

01010-81685

BOLT

21

01643-31645

WASHER

22

21T-70-11290

PIN

23

209-70-11340

SEAL

24

21T-70-11310

BUSHING

25

07000-05160

O-RING

26

21T-919-7330

COVER

27

01010-81655

BOLT

28

01643-31645

WASHER

29

21T-70-11320

PIN

30

21T-70-71590

SEAL

|30

21T-70-11380

SEAL

31

21T-70-00021

SHIM ASS'Y

|31

21T-70-00020

SHIM ASS'Y

|31

SHIM¤ 0.5MM

|31

SHIM¤ 0.5MM

|31

SHIM¤ 1.0MM

|31

SHIM¤ 3.2MM

|31

SHIM¤ 4.5MM

32

21T-70-71640

BUSHING

|32

21T-70-11340

BUSHING

33

07000-05220

O-RING

34

21T-919-7761

COVER,L.H.

|34

21T-919-7760

COVER,L.H.

35

21T-919-7261

COVER,R.H.

|35

21T-919-7260

COVER,R.H.

36

01010-82495

BOLT

|36

01010-51670

BOLT

37

01643-32460

WASHER

|37

01643-31645

WASHER

38

178-70-12550

SPACER

39

21T-70-00060

SHIM ASS'Y

|39

SHIM¤ 1.0MM

|39

SHIM¤ 1.5MM

40

21T-919-7240

PIN

41

07049-02430

PLUG

42

21T-919-7770

PLATE

43

01010-82455

BOLT

44

01643-32460

WASHER
