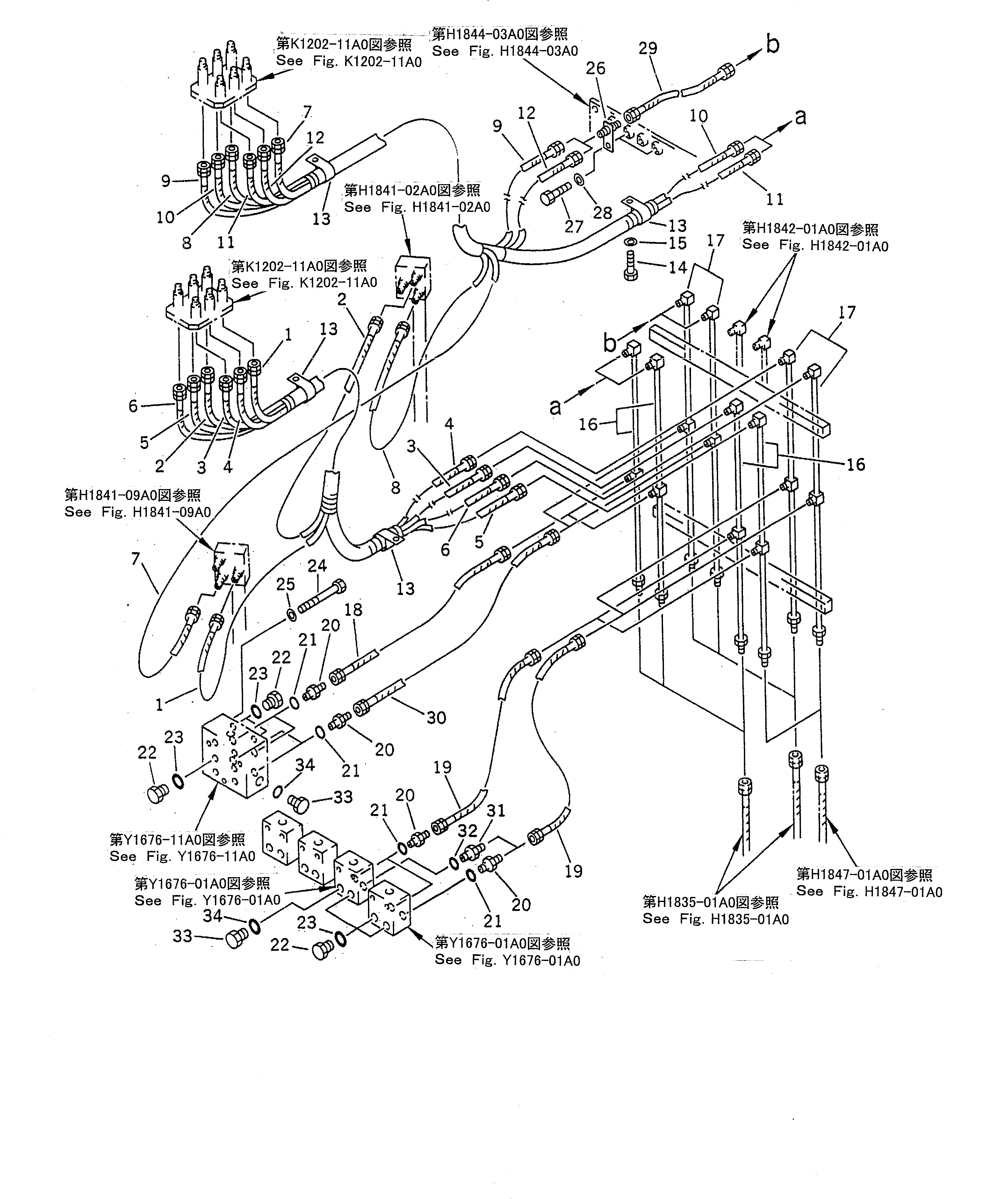

Запчасти Komatsu PC1600-1-A КОРПУС TO/FROM КОНТРОЛЬНЫЙ КЛАПАНТРУБЫ (ДЛЯ НИЗ. КАБИНА) (JIS PATTERN)(№-) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|1
21T-62-87880
HOSE ASS'Y
|1
21T-62-77211
HOSE ASS'Y
1
07102-20423
HOSE (P)
|1
07102-20413
HOSE (P)
2
07102-20423
HOSE (T)
|2
07102-20413
HOSE (T)
3
07102-20327
HOSE (D)
|3
07102-20320
HOSE (D)
4
07102-20327
HOSE (C)
|4
07102-20320
HOSE (C)
5
07102-20327
HOSE (B)
|5
07102-20320
HOSE (B)
6
07102-20327
HOSE (A)
|6
07102-20320
HOSE (A)
|7
21T-62-87890
HOSE ASS'Y
|7
21T-62-77221
HOSE ASS'Y
7
07102-20326
HOSE (P)
|7
07102-20412
HOSE (P)
8
07102-20326
HOSE (T)
|8
07102-20412
HOSE (T)
9
07102-20315
HOSE (K)
|9
07102-20315
HOSE (K)
10
07102-20423
HOSE (N)
|10
07102-20319
HOSE (N)
11
07102-20423
HOSE (M)
|11
07102-20319
HOSE (M)
12
07102-20326
HOSE (L)
|12
07102-20315
HOSE (L)
13
21K-03-11190
CLIP
14
01010-81225
BOLT
15
01643-31232
WASHER
16
21T-919-5890
TUBE
|16
21T-62-77780
TUBE
17
21T-919-6350
TUBE
|17
21T-62-77790
TUBE
18
07102-20204
HOSE
19
07102-20205
HOSE
20
175-79-82720
NIPPLE
21
07002-02034
O-RING
22
07040-12012
PLUG
23
07002-02034
O-RING
24
01010-81085
BOLT
25
01643-31032
WASHER
26
21T-62-86230
JOINT
27
01010-81020
BOLT
28
01643-31032
WASHER
29
07102-20305
HOSE
30
07102-20204
HOSE
31
175-79-82720
NIPPLE
32
07002-02034
O-RING
33
07040-12012
PLUG
34
07002-02034
O-RING
