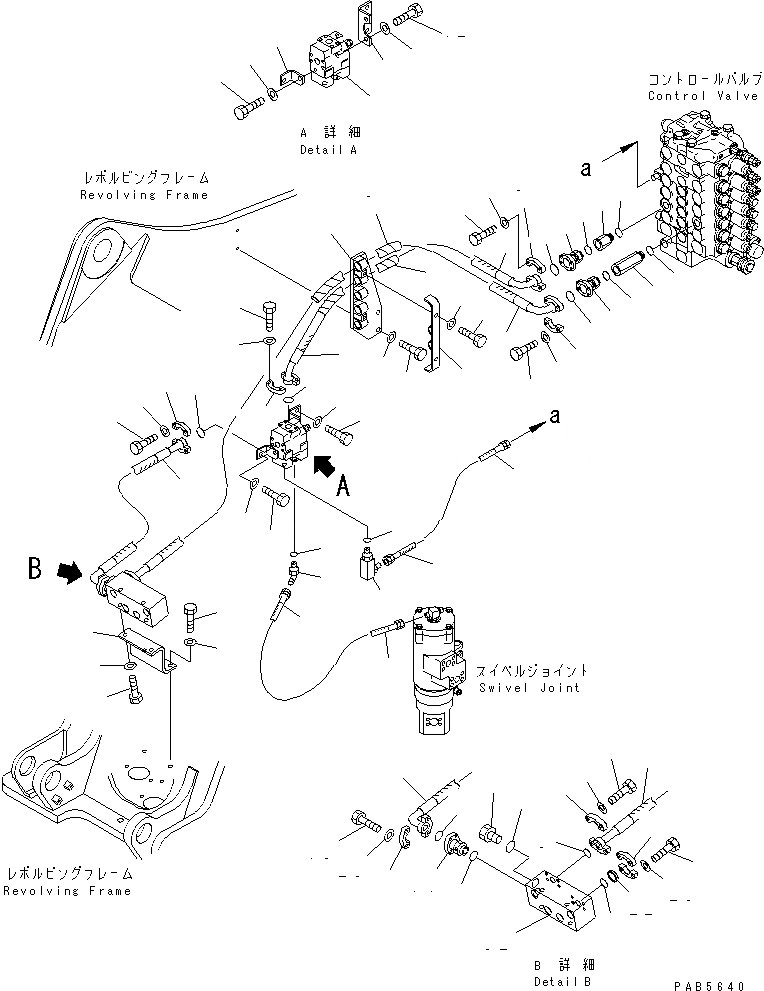

Запчасти Komatsu PC160-6K ПРЕДОТВРАЩ. СМЕЩЕНИЯ (ОСНОВНАЯ РАМА)(№K-K999) ГИДРАВЛИКА

1

07073-00615

HOSE

2

21P-62-K2961

HOSE

|2

21P-62-K2960

HOSE

3

203-62-58650

COVER

4

20G-62-K6130

ADAPTER

5

21P-62-K2840

ADAPTER

6

21K-62-34310

FLANGE

7

07002-12434

O-RING

8

07000-13025

O-RING

9

07371-30640

FLANGE,SPLIT

10

07000-13032

O-RING

11

07371-31049

FLANGE,SPLIT

12

07372-21035

BOLT

13

01643-51032

WASHER

14

21K-62-34310

FLANGE

15

07002-12434

O-RING

16

21P-62-K4770

HOSE

|16

21P-62-K4580

HOSE

17

07000-13025

O-RING

18

07371-30640

FLANGE,SPLIT

19

07372-21035

BOLT

20

01643-51032

WASHER

21

07371-30640

FLANGE,SPLIT

22

07378-10600

HEAD

23

07000-13025

O-RING

24

07372-21035

BOLT

25

01643-51032

WASHER

26

07102-20211

HOSE

27

07235-10212

ELBOW

|27

201-62-64320

ELBOW

28

07002-11423

O-RING

29

07102-20409

HOSE

30

07235-10422

ELBOW

31

07002-12034

O-RING

32

21P-62-K2311

BLOCK

33

01010-81030

BOLT

34

01643-31032

WASHER

35

07040-12412

PLUG

36

07002-12434

O-RING

37

21P-62-K2320

BRACKET

38

01010-81230

BOLT

39

01643-31232

WASHER

40

21P-62-K2342

CLAMP

41

01010-81230

BOLT

42

01643-31232

WASHER

43

21P-62-K2330

BRACKET

44

01010-81025

BOLT

45

01643-31032

WASHER

46

702-21-04220

VALVE ASS'Y,(SEE FIG.Y1675-01A0)

47

01010-81020

BOLT

48

01643-31032

WASHER

49

21P-62-K3110

PLATE

50

21P-62-K3120

PLATE
