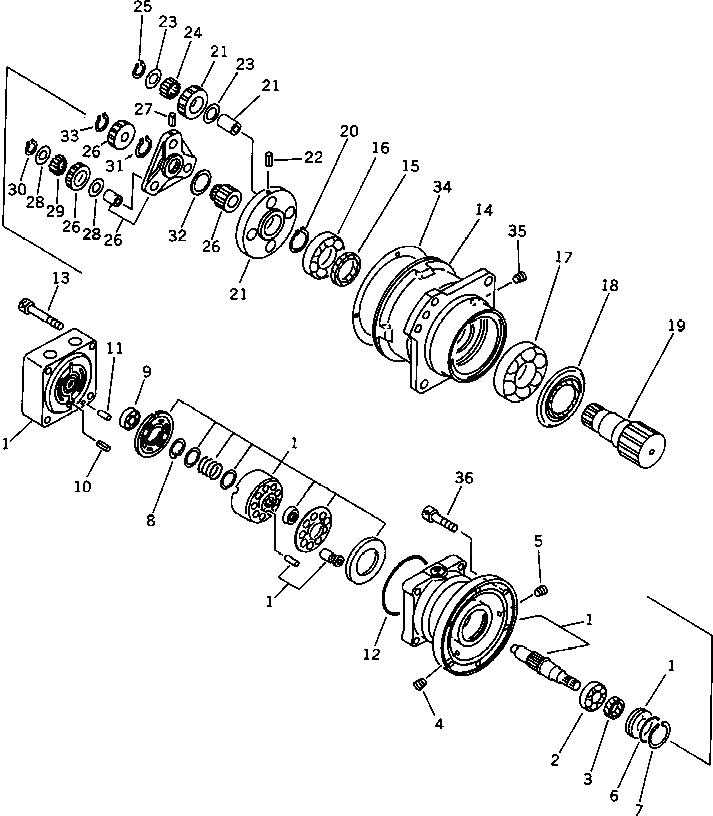

Запчасти Komatsu PC15T-2 МОТОР ПОВОРОТА УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20P-60-16500

MOTOR ASS'Y,SWING

1

20P-60-16520

MOTOR SUB ASS'Y

2

06000-06304

BEARING

3

20P-60-16920

SEAL,OIL

4

20M-60-25370

PLUG

5

20N-60-31650

PLUG

6

20P-60-16910

O-RING

7

04065-05220

RING,SNAP

8

04065-02812

RING,SNAP

9

06030-06201

BEARING

10

04025-00512

PIN,SPRING

11

20W-60-12780

PIN,DOWEL

12

07000-12095

O-RING

13

01252-41035

BOLT

14

20P-60-16510

MOTOR SUB ASS'Y

15

20P-60-16860

SEAL,OIL

16

06000-06307

BEARING

17

20P-60-16790

BEARING

18

20P-60-16760

SEAL

19

20P-60-16560

SHAFT

20

04064-03515

RING,SNAP

21

20P-60-16700

CARRIER ASS'Y

22

04025-00416

PIN,SPRING

23

20P-60-16750

WASHER,THRUST

24

20P-60-16740

NEEDLE

25

04064-01510

RING,SNAP

26

20P-60-16800

CARRIER ASS'Y

27

04025-00416

PIN,SPRING

28

20P-60-16750

WASHER,THRUST

29

20P-60-16850

NEEDLE

30

04064-01510

RING,SNAP

31

20W-60-12380

RING,SNAP

32

20P-60-16780

COLLAR

33

04064-01710

RING,SNAP

34

20P-60-16770

PACKING

35

20P-60-16870

PLUG

36

01252-40825

BOLT
