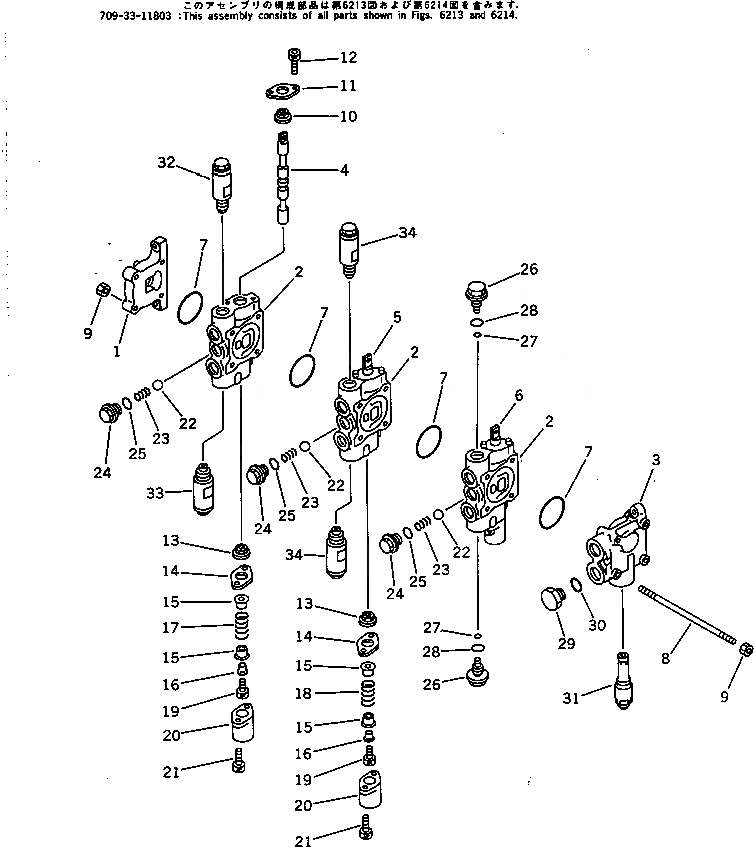

Запчасти Komatsu PC15T-2 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН (/) (ДЛЯ НАКЛОН. ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-33-11803

VALVE ASS'Y

1

COVER

2

BLOCK

3

BLOCK

4

SPOOL,BLADE TILT

5

SPOOL,SWING

6

SPOOL,BLADE LIFT

7

07000-12055

O-RING

8

709-33-11510

STUD

9

01580-10806

NUT

10

709-32-11530

SEAL,DUST

11

709-32-11540

PLATE

12

01252-30610

BOLT

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

709-32-11590

SPRING

19

01252-30620

BOLT

20

709-32-11570

COVER

21

01252-30616

BOLT

22

04260-01270

BALL

23

709-32-11820

SPRING

24

709-32-11810

PLUG

25

07002-11823

O-RING

26

709-32-11830

PLUG

27

709-32-11840

O-RING

28

07002-02034

O-RING

29

07040-12012

PLUG

30

07002-02034

O-RING

31

700-22-51001

VALVE ASS'Y,MAIN RELIFE

32

709-30-62201

VALVE ASS'Y,SUCTION AND SAFETY

33

709-30-62701

VALVE ASS'Y,SUCTION AND SAFETY

34

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY
