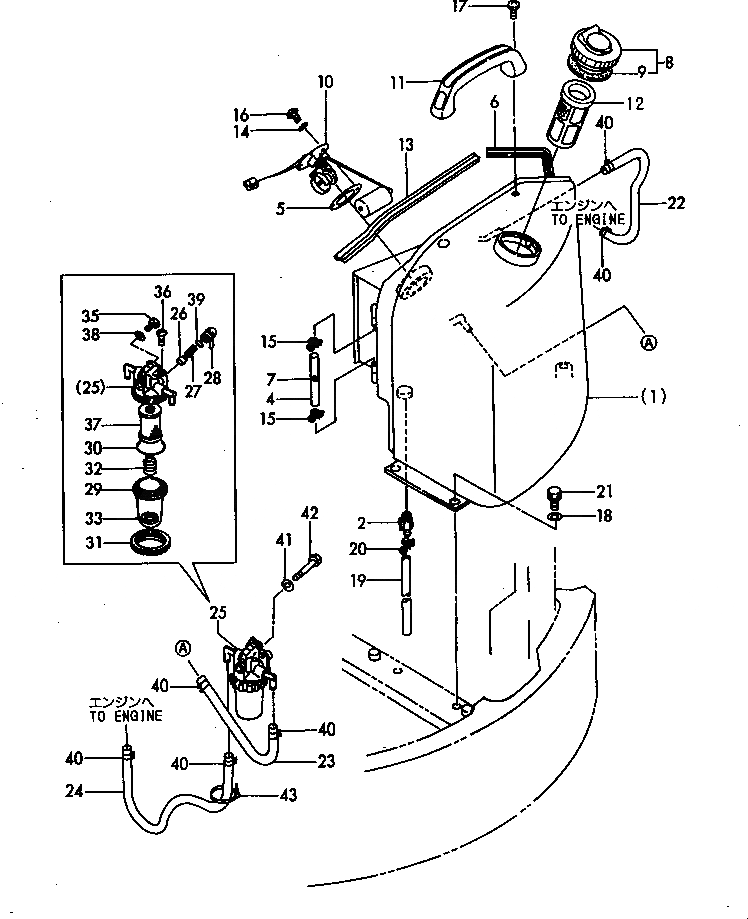

Запчасти Komatsu PC15FR-1 ТОПЛИВН. БАК. AND ТОПЛИВОПРОВОД. КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

YM772983-14101

TANK ASS'Y,FUEL

2

YM104200-11920

COCK

4

YM172183-14181

HOSE,FUEL GAUGE

5

YM172162-14200

PACKING

6

YM172183-14230

RUBBER,SEAL

7

YM172141-14260

FLOAT

8

YM172964-14301

CAP,FUEL TANK

9

YM172122-14350

GASKET

10

YM172173-14300

GAUGE UNIT,FUEL

11

YM172164-45980

GRIP,BONNET

12

YM172183-14250

STRAINER,FUEL INLET

13

YM172164-66480

RUBBER,SEAL

14

YM22217-050000

WASHER

15

YM23010-014000

BAND

16

YM26557-050122

SCREW

17

YM26557-080162

SCREW

18

YM194145-04810

WASHER

19

YM172142-14320

GAUGE,FUEL

20

YM23080-013000

CLAMP,HOSE

21

YM26013-100302

BOLT

22

YM1E6511-03220

HOSE,FUEL

23

YM172124-14610

HOSE,FUEL

24

YM172116-14620

HOSE,FUEL

25

YM129335-55700

WATER SEPARATOR A.,WATER

26

YM104200-55321

VALVE,TAPER

27

YM104200-55330

SPRING

28

YM104200-55341

LEVER,COCK

29

YM124064-55510

CASE,FUEL STRAINER

30

YM102103-55520

O-RING

31

YM110250-55610

RING,RETAINING

32

YM121257-55720

SPRING,SCREEN

33

YM121257-55731

FLOAT

35

YM101720-55750

PLUG

36

YM104200-55750

SCREW

37

YM171081-55910

SCREEN

38

YM23418-060000

GASKET,NYLON

39

YM24311-240100

O-RING

40

YM124766-59050

CLAMP

41

YM22217-080000

WASHER

42

YM26116-080652

BOLT

43

YM933168-55770

BAND
