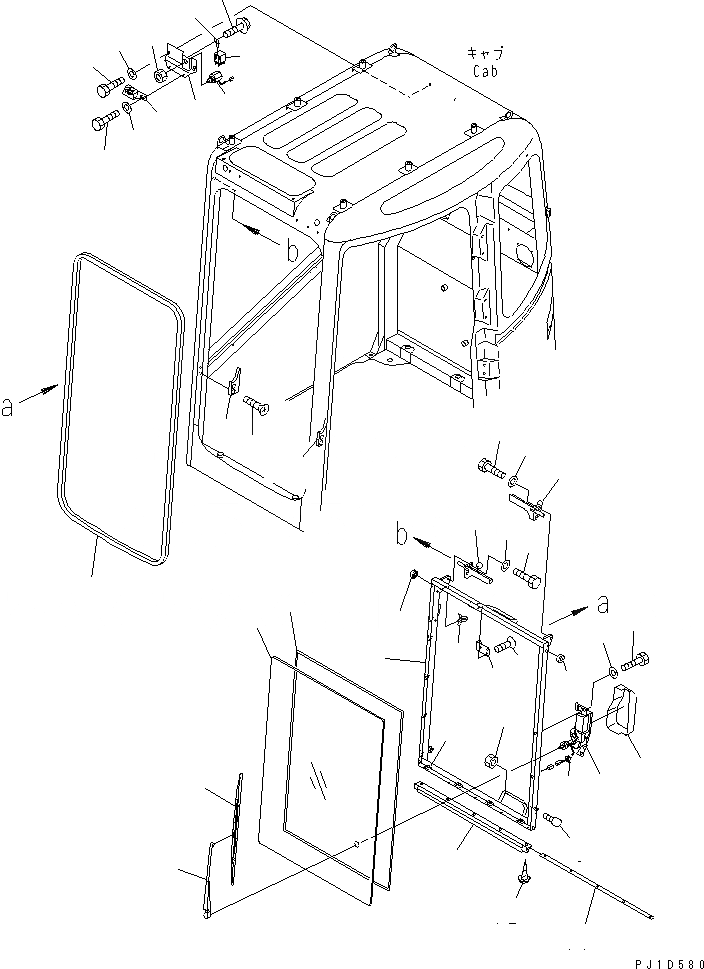

Запчасти Komatsu PC158US-2 КАБИНА (СДВИГ. ВВЕРХ ОКНА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$4

22B-54-00062

CAB ASS'Y

|$5

22B-54-00072

CAB ASS'Y,(WITH FULL GUARD)

|$6

22B-54-00082

CAB ASS'Y,(WITH HALF GUARD)

|$7

22B-54-00192

CAB ASS'Y,SASH

1

22U-54-14310

WINDOW,FRONT

2

22M-54-14540

LATCH ASS'Y,L.H.

3

22M-54-14550

LATCH ASS'Y,R.H.

4

20Y-54-14750

BOLT

5

01643-70823

WASHER

6

20Y-54-14310

STRIKER

7

20Y-54-14280

SCREW

8

20Y-54-14290

STOPPER

9

20T-54-74550

NUT

10

21J-54-14541

SEAL

11

21J-54-14551

PLATE

12

01370-40416

SCREW

13

22U-54-14321

GLASS,FRONT

14

21J-54-14530

DAM

15

20T-54-74230

ROLLER, 26.0MM

16

21W-54-24821

MOTOR ASS'Y

17

01010-D1016

BOLT

18

01643-71032

WASHER

19

20U-54-24840

ARM

20

22B-54-14370

BLADE

21

22U-54-14381

COVER

22

08034-20876

BAND

23

21W-54-14690

CLIP

24

14X-911-4551

CLIP

25

22B-54-14670

BRACKET

26

01010-D0816

BOLT

27

01643-70823

WASHER

28

205-54-63310

LOCK ASS'Y

29

01010-D0816

BOLT

30

01643-70823

WASHER

31

22U-54-14970

STOPPER

31A

22U-54-14670

STOPPER

31A

22U-54-14970

STOPPER

32

01240-00825

SCREW

33

21J-54-14650

SEAL,FRONT

34

01583-11811

NUT

35

21J-06-12440

SWITCH

36

569-06-61960

RELAY

37

287-06-16420

BRACKET

38

01435-40608

BOLT
