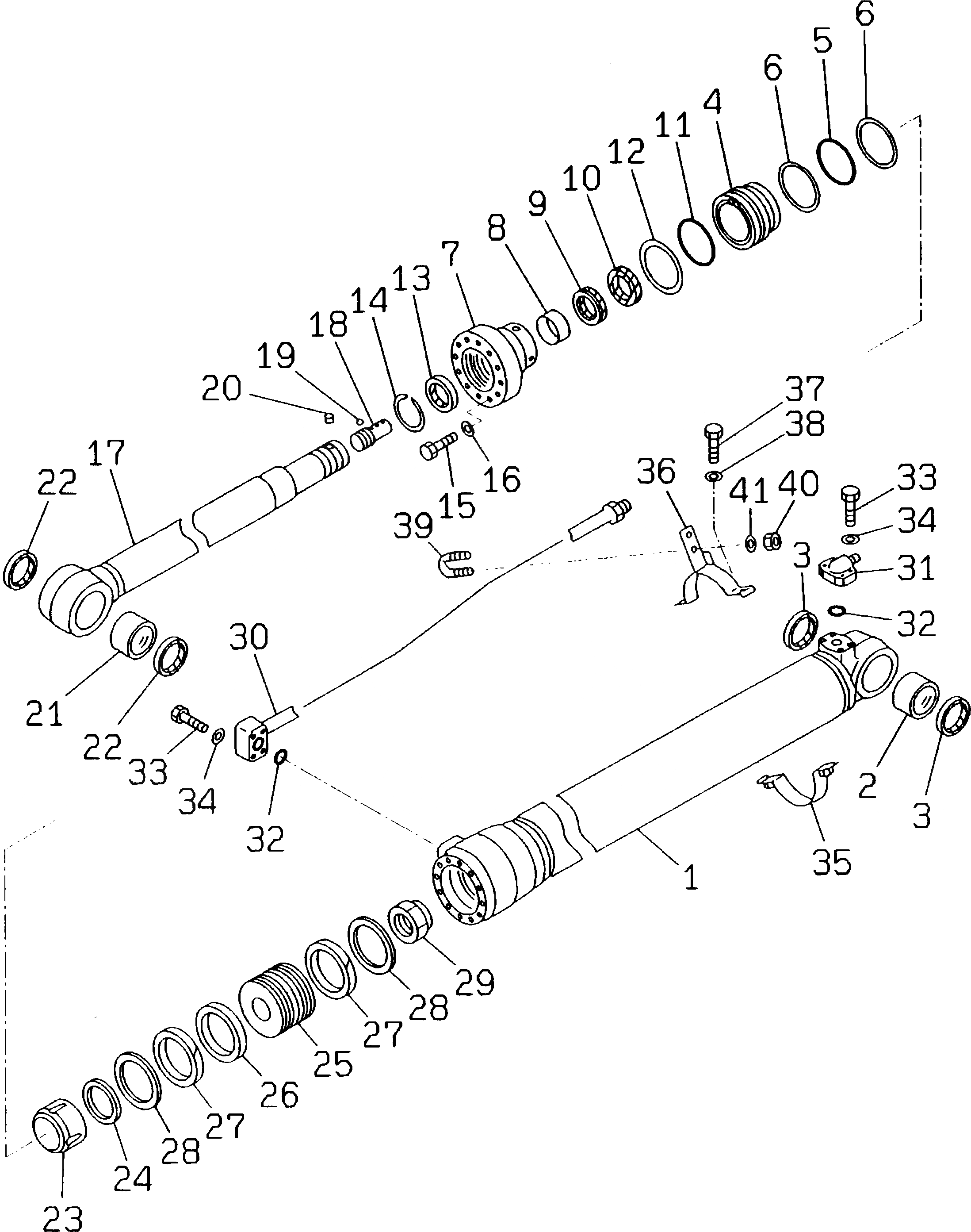

Запчасти Komatsu PC150NHD-5K ЦИЛИНДР РУКОЯТИ(№K-) РАБОЧЕЕ ОБОРУДОВАНИЕ (ЭКСКАВАТ.)

|1

20E-63-K1110

CYLINDER ASS'Y,ARM

1

203-63-64341

CYLINDER

2

707-76-70240

BUSHING

3

07145-00070

SEAL,DUST (KIT)

4

707-71-32510

COLLAR

5

07000-15110

O-RING (KIT)

6

07001-05110

RING,BACK-UP (KIT)

7

707-27-11670

HEAD,CYLINDER

8

707-52-90500

BUSHING

9

707-51-75030

PACKING,ROD (KIT)

10

707-51-75630

RING,BUFFER (KIT)

11

07000-15110

O-RING (KIT)

12

07001-05110

RING,BACK-UP (KIT)

13

144-63-94170

SEAL,DUST (KIT)

14

07179-13089

RING,SNAP

15

01010-81670

BOLT

16

01643-51645

WASHER

17

203-63-64320

ROD

18

707-71-60200

PLUNGER

19

04260-00635

BALL

20

707-71-91270

CAP

21

707-76-70240

BUSHING

22

07145-00070

SEAL,DUST (KIT)

23

707-71-60830

PLUNGER

24

707-40-11470

RETAINER

25

707-36-11510

PISTON

26

707-44-11280

RING,PISTON (KIT)

27

707-39-11510

RING,WEAR (KIT)

28

707-44-11920

RING

29

07165-15860

NUT,NYLON

30

20E-63-K1120

TUBE

31

20E-63-K1131

ELBOW

32

07000-13025

O-RING (KIT)

33

01010-50850

BOLT

34

01643-50823

WASHER

35

707-88-95360

BAND

36

707-88-95510

BRACKET

37

01010-51035

BOLT

38

01643-31032

WASHER

39

07283-22236

CLIP

40

01599-01011

NUT

41

01643-31032

WASHER

42

01010-50835

BOLT
