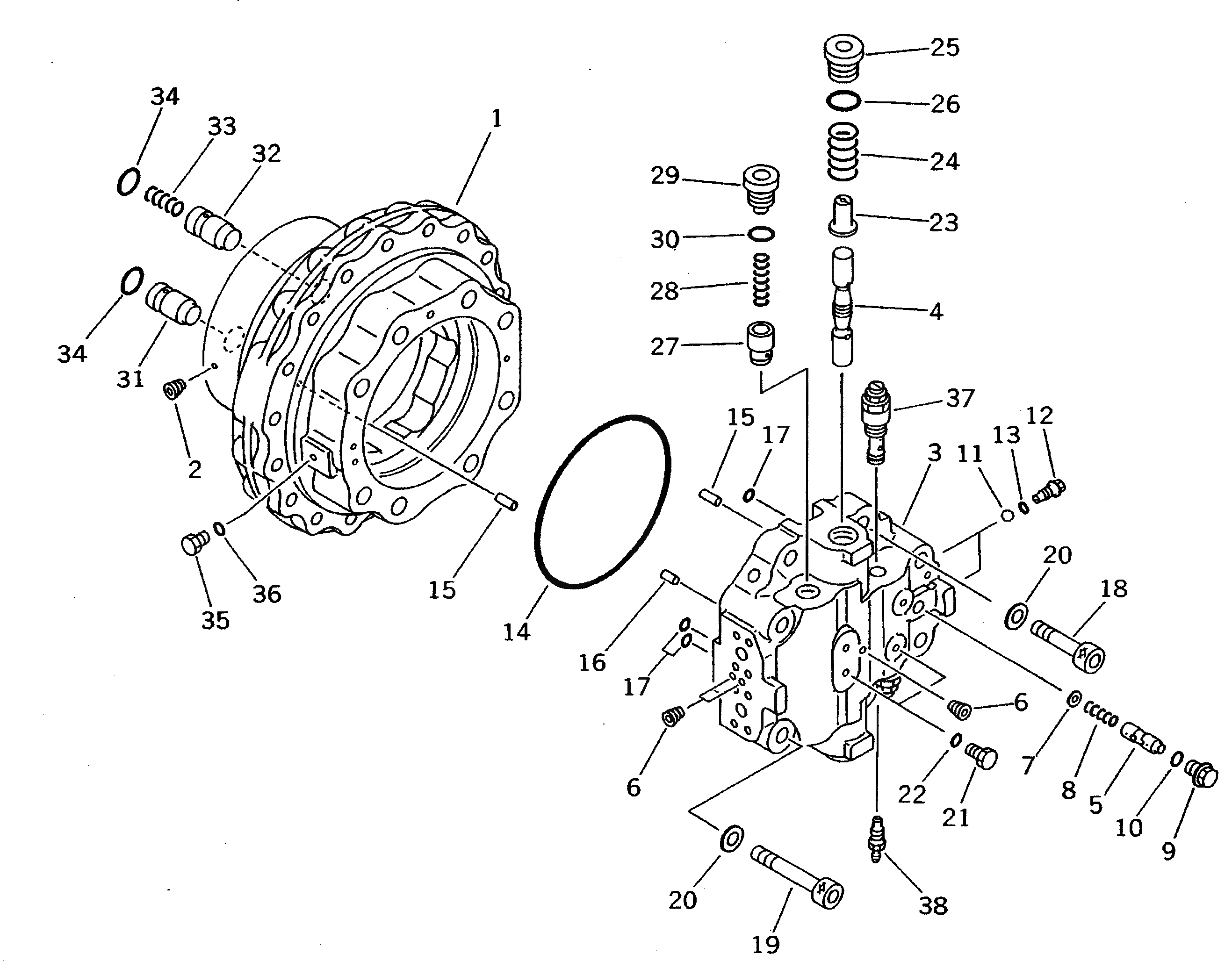

Запчасти Komatsu PC150NHD-5K МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20Y-27-00014

FINAL DRIVE ASS'Y

|1

708-8H-00070

MOTOR ASS'Y

|1

708-8H-04112

CASE ASS'Y

1

CASE

2

PLUG

|3

708-8H-04122

END COVER ASS'Y

3

END,COVER

4

SPOOL

5

SPOOL

6

PLUG

7

708-8H-14211

PLATE

8

706-8E-14170

SPRING

9

706-8E-14190

PLUG

10

07002-11823

O-RING

11

04260-00793

BALL

12

706-8E-14110

PLUG

13

07002-11023

O-RING

14

07000-05220

O-RING

15

04020-01024

PIN

16

708-18-13230

PIN

17

07000-12012

O-RING

18

708-8H-11210

BOLT

19

708-8H-11220

BOLT

20

708-8H-11260

WASHER

21

708-8H-11530

PLUG

22

07002-11423

O-RING

23

708-8H-16120

RETAINER

24

708-8H-16160

SPRING

25

708-8H-16141

PLUG

26

07002-13634

O-RING

27

706-75-74231

VALVE

28

706-75-74240

SPRING

29

708-8H-16150

PLUG

30

07002-13034

O-RING

31

708-8H-14140

PISTON

32

708-8H-14180

PISTON

33

708-8H-14170

SPRING

34

07000-13038

O-RING

35

07040-11007

PLUG

36

07002-11023

O-RING

37

706-73-86202

VALVE ASS'Y,C.O.R.

38

20B-27-11210

BLEEDER
