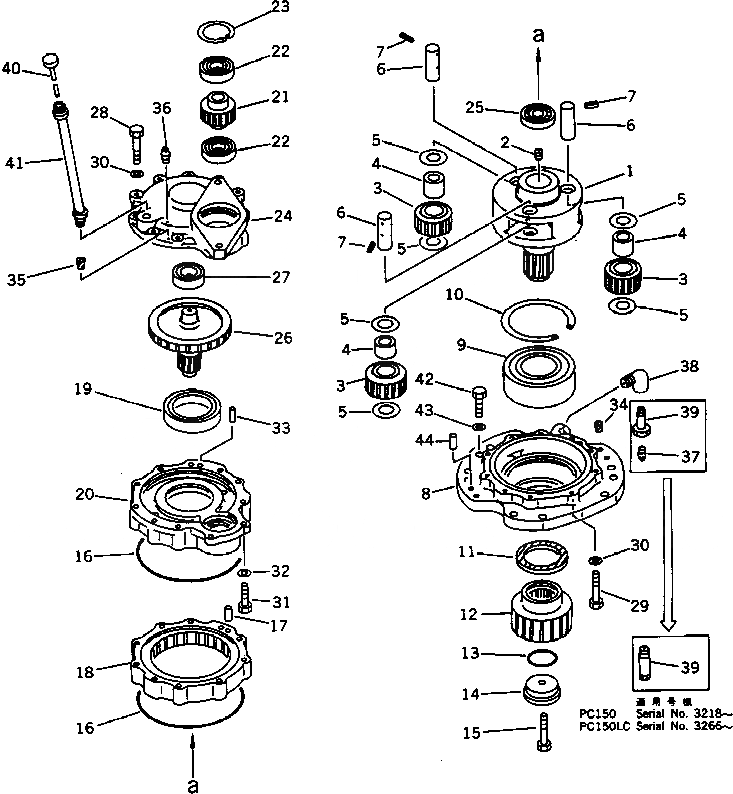

Запчасти Komatsu PC150LC-3 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|$0

21K-26-00022

SWING MACHINERY A.

|$1

21K-26-00021

SWING MACHINERY A.

|$2

21K-26-00020

SWING MACHINERY A.

|$3

21K-26-00010

CARRIER ASS'Y

|$4

20G-26-00020

CARRIER ASS'Y

1

CARRIER

1

CARRIER

2

07043-00415

PLUG

3

20G-26-11170

GEAR

4

20G-26-11240

BEARING

5

203-26-41250

WASHER

6

20G-26-11231

SHAFT

7

04025-00832

PIN,SPRING

8

20G-26-11110

CAGE

9

06030-22317

BEARING

10

04071-00180

RING,SNAP

11

07012-00100

SEAL,OIL

12

21K-26-21120

GEAR

13

07000-05065

O-RING

14

20G-26-11250

HOLDER

15

01011-52040

BOLT

16

203-26-41220

O-RING

17

04020-01434

PIN,DOWEL

18

20G-26-11181

GEAR

19

20G-26-11260

BEARING

20

20G-26-11121

CASE

21

20G-26-11150

GEAR

22

06040-06210

BEARING

23

04065-09030

RING,SNAP

24

20G-26-11131

COVER

25

21K-26-21170

BEARING

25

06040-06007

BEARING

26

21K-26-21111

GEAR

26

21K-26-21110

GEAR

27

06030-21307

BEARING

28

01011-51460

BOLT

29

01011-51420

BOLT

30

01643-31445

WASHER

31

01010-51225

BOLT

32

01643-31232

WASHER

33

04020-01024

PIN,DOWEL

34

07049-02025

PLUG

35

07049-01215

PLUG

36

07042-20108

PLUG

37

07042-30617

PLUG

38

07323-30600

ELBOW

39

21K-26-21150

PLUG

39

20G-26-11340

FILLER

40

20G-26-11320

GAUGE

41

20G-26-11310

FILLER

42

01010-52060

BOLT

43

01643-32060

WASHER

44

04020-01638

PIN,DOWEL
