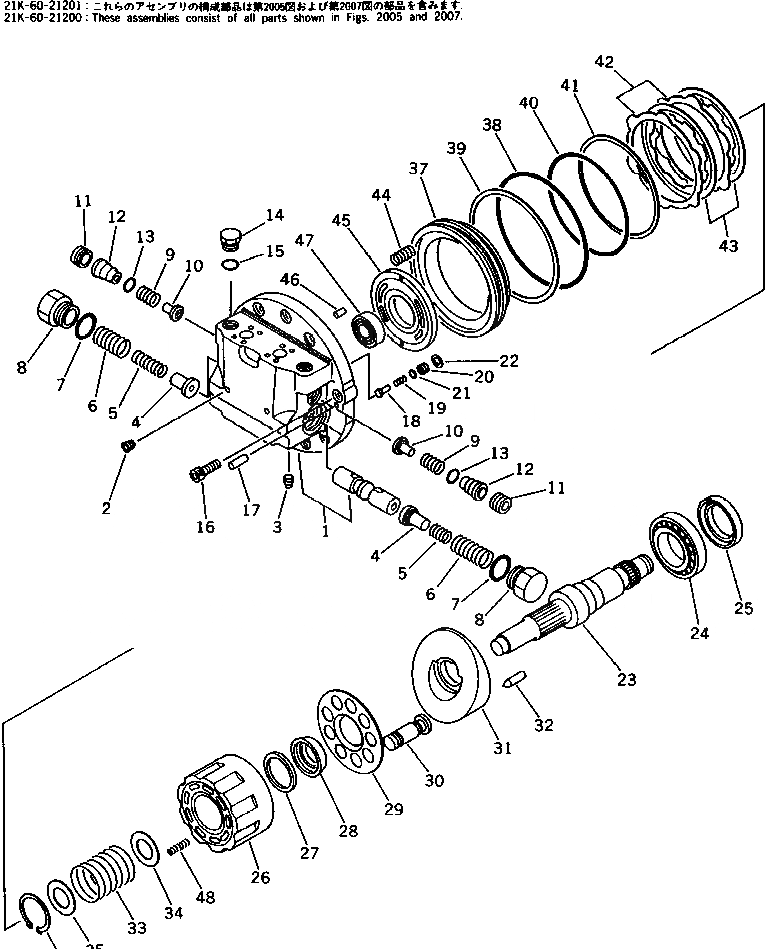

Запчасти Komatsu PC150LC-3 МОТОР ХОДА (/)(№-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

21K-60-21202

TRAVEL MOTOR ASS'Y

|$1

21K-60-21201

TRAVEL MOTOR ASS'Y

|$2

21K-60-21200

TRAVEL MOTOR ASS'Y

1

TZ210A210100-E

FLANGE ASS'Y,REAR

2

TZGM1-8

PLUG

3

TZMB700-050

PLUG

4

TZ200A2052-00

STOPPER

5

TZ200A2056-00

SPRING

6

TZ100A2055-00

SPRING

7

07000-13032

O-RING (KIT)

8

TZ100A2051-00

PLUG

9

TZ100A2057-01

SPRING

10

TZ100A2054-01

VALVE

11

TZ150A2053-00

PLUG

12

TZ150A2058-00

GUIDE

13

07000-12020

O-RING (KIT)

14

TZ100A2021-00

PLUG

15

07002-02034

O-RING (KIT)

16

01252-31440

BOLT

17

TZJB1354-10-28

PIN

18

TZ430F2019-00

VALVE

19

TZ100A2020-00

SPRING

20

TZ100A2018-00

SEAT,VALVE

21

07000-11009

O-RING (KIT)

22

TZ100A2022-00

RING,SNAP

23

TZ210A2002-01

SHAFT

24

06000-32011

BEARING,ROLLER

25

TZTCN-55-78-12

SEAL,OIL (KIT)

26

TZ210A2020-00

BLOCK,CYLINDER

27

TZ100A2011-00

WASHER KIT

28

TZ100A2008-00

BALL,THRUST

29

TZ100A2007-00

PLATE,RETAINER

30

TZ210A2105-01

PISTON ASS'Y

31

TZ200A200300-G

PLATE,SWASH

32

TZ150A2017-00

PIN

33

TZ461F2028-01

SPRING

34

TZ200D2011-00

WASHER

35

TZ100A2010-00

WASHER

36

TZIRTW-55

RING,SNAP

37

TZ231F2012-00

PISTON

38

07000-15170

O-RING (KIT)

39

TZSUN-2BG170

RING,BACK-UP (KIT)

40

07000-15145

O-RING (KIT)

41

TZ231F2023-00

RING,BACK-UP (KIT)

42

TZ100A2016-00

PLATE

43

TZ200A2015-00

DISC

44

TZ100A2013-00

SPRING

45

TZ210A2009-00

PLATE,TIMING

46

TZJB1354-5-12

PIN

47

06000-06005

BEARING,BALL

48

TZ210A2059-00

SPRING
