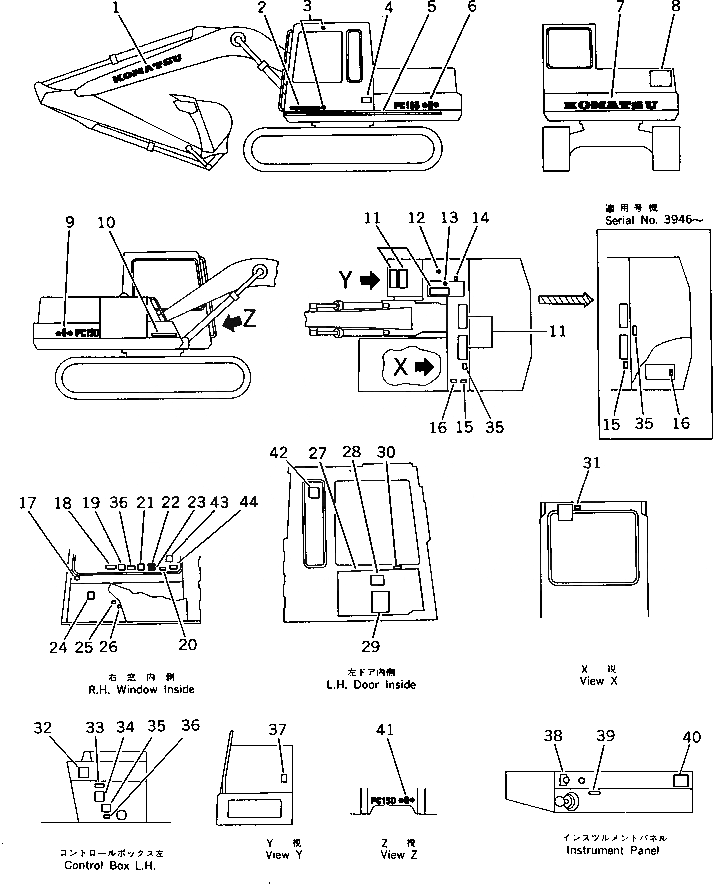

Запчасти Komatsu PC150LC-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-41250

PLATE, MARK,KOMATSU

2

09690-50500

PLATE, MARK,KOMATSU

3

205-00-63770

PLATE,GUARD

4

09602-01643

PLATE, NAME,(LIMITED SUPPLY)

4

01220-60408

SCREW

4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE

6

21K-00-21160

PLATE, MARK,PC150LC

7

203-00-41131

PLATE, MARK,KOMATSU

8

09133-03000

PLATE, SAFETY,KEEP OUT OF TURNING AREA

9

21K-00-21170

PLATE, MARK,PC150LC

10

09690-50500

PLATE, MARK,KOMATSU

11

154-54-23260

SEAT,NONSKID

12

09669-00002

PLATE, CAUTION,FUEL

13

09669-00003

PLATE, CAUTION,HYDRAULIC OIL

14

09653-03000

PLATE, SAFETY,HYDRAULIC TANK CAP

15

205-00-65270

PLATE, CAUTION,RADIATOR WATER LEVEL

16

09668-03000

PLATE, SAFETY,RADIATOR CAP

17

205-00-63360

PLATE, CAUTION,FRONT WINDOW

18

205-00-66110

PLATE, OPERATING,WORK EQUIPMENT

19

205-00-75340

PLATE,SYMBOL

20

205-00-63550

PLATE, CAUTION

21

205-00-63390

PLATE, CAUTION,STARTING

22

09649-03001

PLATE, INSTRUCTION,ENGINE STOP

23

203-00-31350

PLATE, CAUTION,DECELERATOR

24

205-00-63750

PLATE, CAUTION,WINDOW WASHER

25

09131-03000

PLATE, SAFETY,SWING LOCK LEVER

26

09685-00002

PLATE, OPERATING,SWING LOCK LEVER

27

21K-54-25141

COVER

28

PLATE, CAUTION,LEAVING SEAT

29

CHART, OIL

30

205-00-71340

PLATE, OPERATING,DOOR LOCK

31

205-00-63350

PLATE, CAUTION,FRONT WINDOW

32

203-00-31340

PLATE, CAUTION,AUTO DECELERATION

33

09651-03000

PLATE, SAFETY,BEFORE OPERATING

34

09173-03000

PLATE, SAFETY,INSPECTION AND MAINTENANCE

35

09667-03000

PLATE, SAFETY,ENGINE COVER

36

205-00-71940

PLATE,MODE SELECTION GUIDE

37

203-00-31120

PLATE, INSTRUCTION,HYDRAULIC TANK

38

09683-30060

PLATE, OPERATING,STARTING SWITCH

39

09685-00001

PLATE, OPERATING,SAFETY LOCK LEVER

40

203-00-41131

PLATE, MARK,SWING BRAKE

41

21K-00-22170

PLATE, MARK,SYMBOL

42

21K-00-23110

PLATE, SAFETY,LOAD RATING (STD ARM)

42

21K-00-23150

PLATE, SAFETY,LOAD RATING (STD ARM)

42

21K-00-23130

PLATE, SAFETY,LOAD RATING (LONG ARM)

42

21K-00-23170

PLATE, SAFETY,LOAD RATING (LONG ARM)

42

21K-00-23120

PLATE, SAFETY,LOAD RATING (SHORT ARM)

42

21K-00-23160

PLATE, SAFETY,LOAD RATING (SHORT ARM)

42

21K-00-23140

PLATE, SAFETY,LOAD RATING (SUPER SHORT ARM)

42

21K-00-23190

PLATE, SAFETY,LOAD RATING (SUPER SHORT ARM)

43

205-00-65490

PLATE, CAUTION,MAXIUM HEIGHT AND REACH

44

205-00-63820

PLATE, CAUTION,OIL TYPE (COLD WEATHER)
