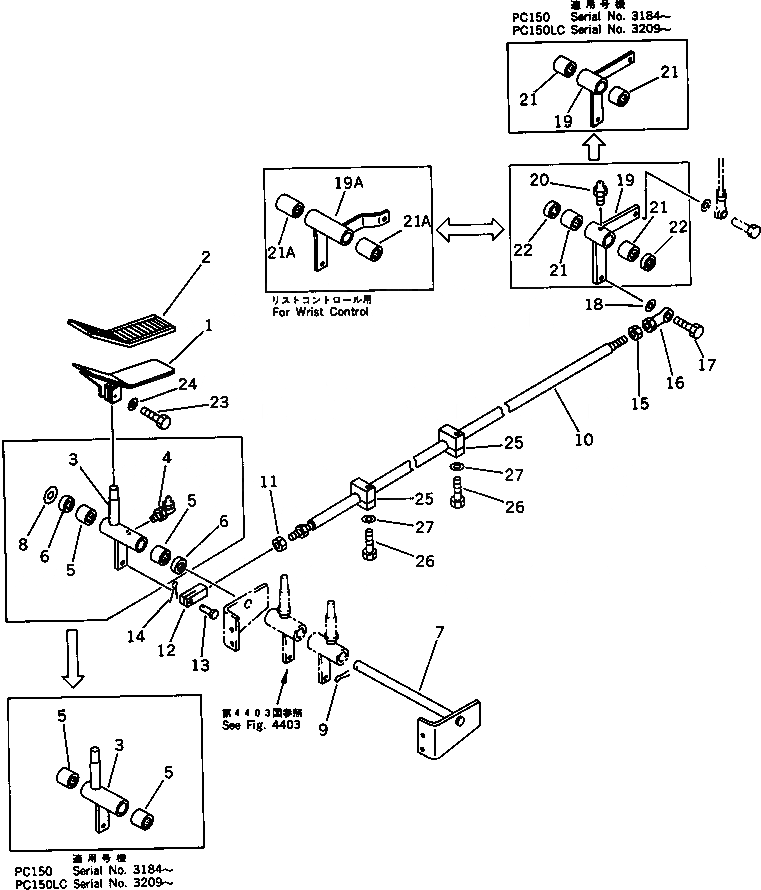

Запчасти Komatsu PC150LC-3 МЕХ-М УПРАВЛ-Я (/) (ДОПОЛН. ГИДРАВЛ КОНТУР) ОПЦИОННЫЕ КОМПОНЕНТЫ

1

203-43-41713

PEDAL

1

203-43-41712

PEDAL

2

203-43-41650

CAP

3

21K-973-2512

LEVER

3

21K-973-2511

LEVER

3

21K-973-2510

LEVER

4

07020-00900

FITTING,GREASE

5

195-61-34130

BEARING

5

06120-02016

BEARING

6

06122-02004

SEAL,BEARING

7

203-43-43270

SHAFT

8

01643-32060

WASHER

9

04050-13030

PIN,COTTER

10

21K-973-2520

ROD

11

01508-21006

NUT,L.H. THREAD

12

04220-21040

YOKE

13

04205-11028

PIN

14

04050-13015

PIN,COTTER

15

01582-11008

NUT

16

04250-41056

END,ROD

17

01010-51030

BOLT

18

01643-31032

WASHER

19

21K-973-2532

LEVER,(FOR LONG LEVER CONTROL)

19

21K-973-2531

LEVER,(FOR LONG LEVER CONTROL)

19

21K-973-2530

LEVER,(FOR LONG LEVER CONTROL)

19A

21K-973-2541

LEVER,(FOR WRIST CONTROL)

19A

21K-973-2540

LEVER,(FOR WRIST CONTROL)

20

07020-00000

FITTING,GREASE

21

195-61-34130

BEARING

21

06120-02016

BEARING

21A

195-61-34130

BEARING

22

06122-02004

SEAL,BEARING

23

01010-50825

BOLT

24

01643-30823

WASHER

25

203-43-42751

PLATE

25

203-43-42750

PLATE

26

01010-50830

BOLT

26

01010-51030

BOLT

27

01643-30823

WASHER

27

01643-31032

WASHER
