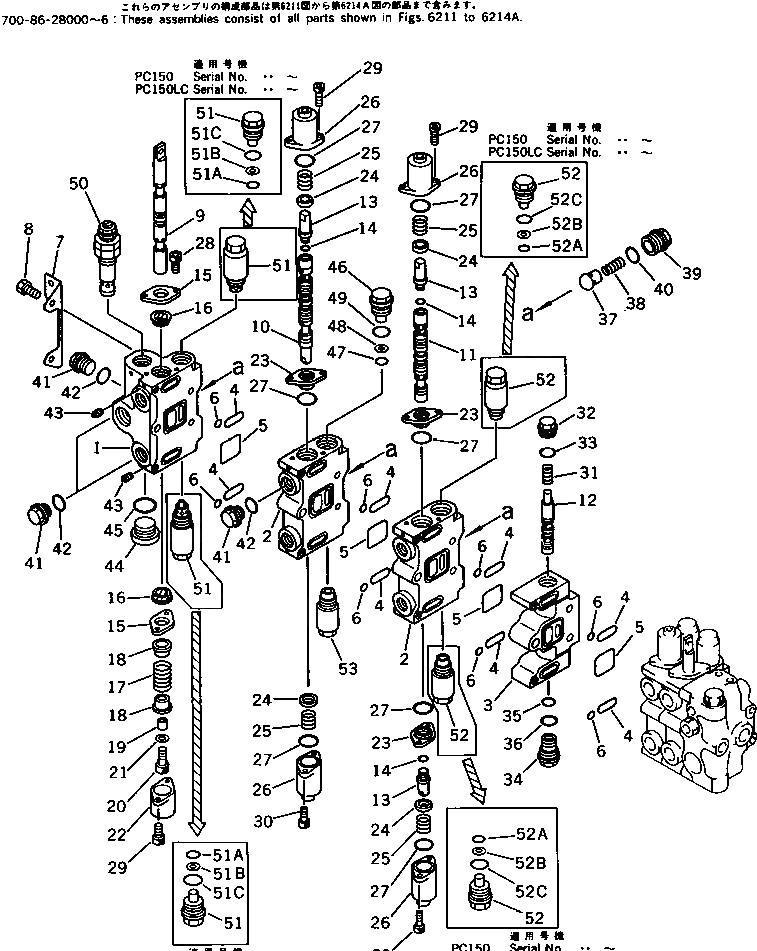

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
700-86-28006
CONTROL VALVE ASS'Y,L.H.
|$1
700-86-28005
CONTROL VALVE ASS'Y,L.H.
|$2
700-86-28004
CONTROL VALVE ASS'Y,L.H.
|$3
700-86-28003
CONTROL VALVE ASS'Y,L.H.
|$4
700-86-28002
CONTROL VALVE ASS'Y,L.H.
|$5
700-86-28001
CONTROL VALVE ASS'Y,L.H.
|$6
700-86-28000
CONTROL VALVE ASS'Y,L.H.
1
BODY,VALVE
1
BODY,VALVE
2
BLOCK,VALVE
2
BLOCK,VALVE
3
BLOCK,VALVE
3
BLOCK,VALVE
4
07000-03038
O-RING
4
07000-03030
O-RING
5
07000-13050
O-RING
6
07000-01007
O-RING
7
700-84-11330
BRACKET
8
01010-51020
BOLT
9
SPOOL,SERVICE
10
SPOOL,BOOM HIGH
11
SPOOL,SWING
12
SPOOL
13
700-84-13790
JOINT
14
07002-11223
O-RING
15
700-84-13891
PLATE
16
700-84-13910
SEAL
17
700-84-11650
SPRING
18
700-84-13711
RETAINER
19
700-84-11641
COLLAR
20
01252-30830
BOLT
21
01643-30823
WASHER
22
700-84-11390
COVER
23
700-84-13490
PLATE
24
700-84-13781
RETAINER
25
700-84-13770
SPRING
26
700-84-12510
CASE
27
700-84-11240
O-RING
28
01252-30612
BOLT
29
01252-30625
BOLT
30
01252-30616
BOLT
31
700-84-13570
SPRING
32
700-84-13870
PLUG
33
07002-02434
O-RING
34
700-84-13510
NIPPLE
35
07000-02015
O-RING
36
07002-02434
O-RING
37
700-42-31460
VALVE
38
700-42-31470
SPRING
39
700-84-11320
PLUG
40
07002-13034
O-RING
41
700-22-11370
PLUG
42
07002-12434
O-RING
43
706-86-51170
PLUG
44
07040-13316
PLUG
45
07002-13334
O-RING
46
700-84-13960
PLUG
47
700-22-11410
O-RING
48
700-80-64220
RING,BACK-UP
49
07002-03034
O-RING
50
700-87-56000
VALVE ASS'Y
51
700-84-13960
PLUG
51
4709-70-61200
VALVE ASS'Y
51A
700-22-11410
O-RING
51B
700-80-64220
RING,BACK-UP
51C
07002-03034
O-RING
52
700-84-13960
PLUG
52
700-81-81000
VALVE ASS'Y
52A
700-22-11410
O-RING
52B
700-80-64220
RING,BACK-UP
52C
07002-03034
O-RING
53
700-81-66001
VALVE ASS'Y
53
700-81-66000
VALVE ASS'Y
53
700-81-81000
VALVE ASS'Y
Выбрано товаров: 74
