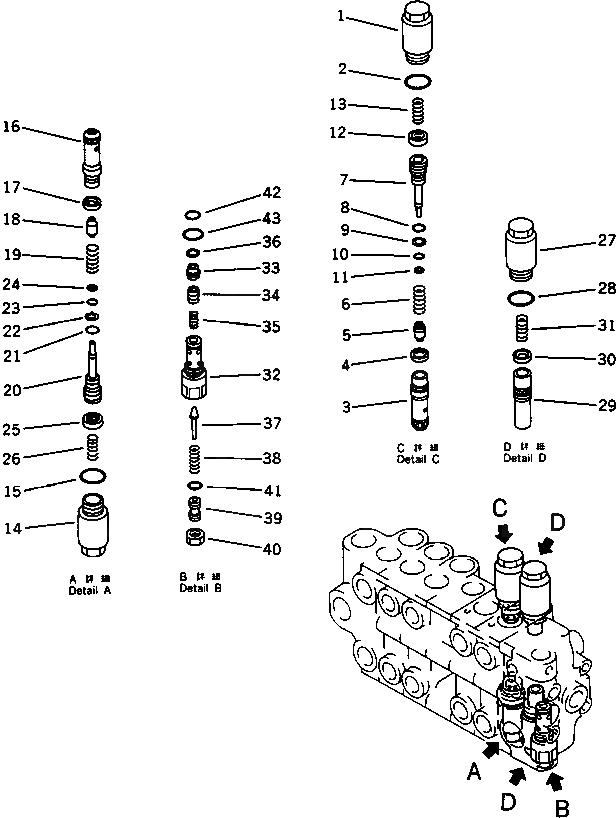

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е)(№89-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-27006

CONTROL VALVE ASS'Y,L.H.

|$1

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

1

700-80-62310

SLEEVE

2

07002-03034

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

RING,BACK-UP

10

O-RING

11

SEAL

12

NUT

13

700-80-62250

SPRING

|$15

709-70-61201

VALVE ASS'Y,SAFETY

14

700-80-62310

SLEEVE

15

07002-03034

O-RING

16

VALVE

17

SEAL

18

POPPET

19

SPRING

20

PISTON

21

O-RING

22

RING,BACK-UP

23

O-RING

24

SEAL

25

NUT

26

700-80-62250

SPRING

|$29

700-81-81000

VALVE ASS'Y,SUCTION

27

700-80-62310

SLEEVE

28

07002-03034

O-RING

29

VALVE

30

SEAL

31

700-80-62250

SPRING

|$35

709-70-55103

RELIEF VALVE ASS'Y

32

SLEEVE

33

700-20-51540

RETAINER

34

VALVE

35

700-20-51210

SLEEVE

36

700-20-51550

RING,SNAP

37

709-70-51420

POPPET

38

700-20-51580

SPRING

39

700-20-51340

SCREW

40

01582-11411

NUT

41

07000-02011

O-RING

42

700-22-11410

O-RING

43

07002-02434

O-RING
