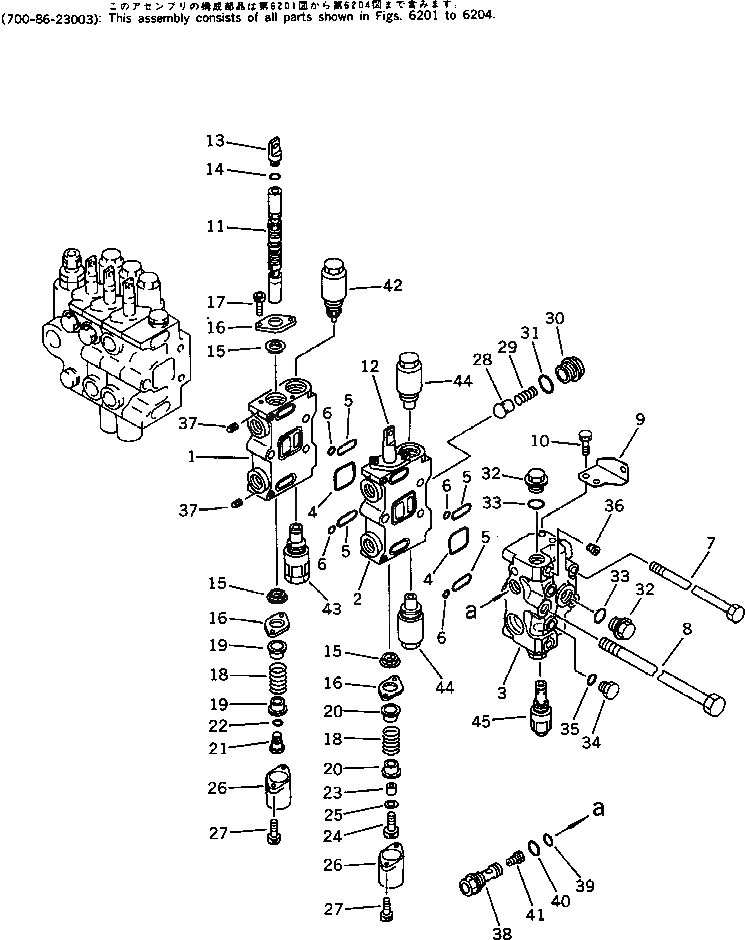

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
700-86-27006
CONTROL VALVE ASS'Y,L.H.
|$1
700-86-27005
CONTROL VALVE ASS'Y,L.H.
|$2
700-86-27004
CONTROL VALVE ASS'Y,L.H.
|$3
700-86-27003
CONTROL VALVE ASS'Y,L.H.
|$4
700-86-27002
CONTROL VALVE ASS'Y,L.H.
|$5
700-86-27001
CONTROL VALVE ASS'Y,L.H.
|$6
700-86-27000
CONTROL VALVE ASS'Y,L.H.
1
BLOCK,VALVE
1
BLOCK,VALVE
2
BLOCK,VALVE
2
BLOCK,VALVE
3
COVER,VALVE
3
COVER,VALVE
4
07000-13050
O-RING
5
07000-03038
O-RING
5
07000-03030
O-RING
6
07000-01007
O-RING
7
700-87-11110
BOLT
8
700-87-11120
BOLT
9
700-84-13830
BRACKET
10
01010-51020
BOLT
11
SPOOL,ARM LOW
12
SPOOL,L.H. TRAVEL
13
700-84-11870
JOINT
14
07002-11223
O-RING
15
700-84-13910
SEAL
16
700-84-13891
PLATE
17
01252-30612
BOLT
18
700-84-11650
SPRING
19
700-84-13721
RETAINER
20
700-84-13711
RETAINER
21
700-84-11881
PLUG
22
07002-11223
O-RING
23
700-84-11641
COLLAR
24
01252-30830
BOLT
25
01643-30823
WASHER
26
700-84-11390
COVER
27
01252-30625
BOLT
28
700-42-31460
VALVE
29
700-42-31470
SPRING
30
700-84-11320
PLUG
31
07002-13034
O-RING
32
700-22-11370
PLUG
33
07002-12434
O-RING
34
07040-11409
PLUG
35
07002-01423
O-RING
36
07043-70108
PLUG
37
706-86-51170
PLUG
|$49
709-70-91300
ORIFICE ASS'Y
38
700-93-12660
ORIFICE
39
709-70-91210
SENSOR
40
07000-02014
O-RING
41
07002-02434
O-RING
42
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
42
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
43
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
43
709-70-62100
VALVE ASS'Y
44
700-81-81000
VALVE ASS'Y
45
709-70-55103
RELIEF VALVE ASS'Y
45
709-70-55102
RELIEF VALVE ASS'Y
45
709-70-55101
RELIEF VALVE ASS'Y
45
709-70-55100
RELIEF VALVE ASS'Y
Выбрано товаров: 62
