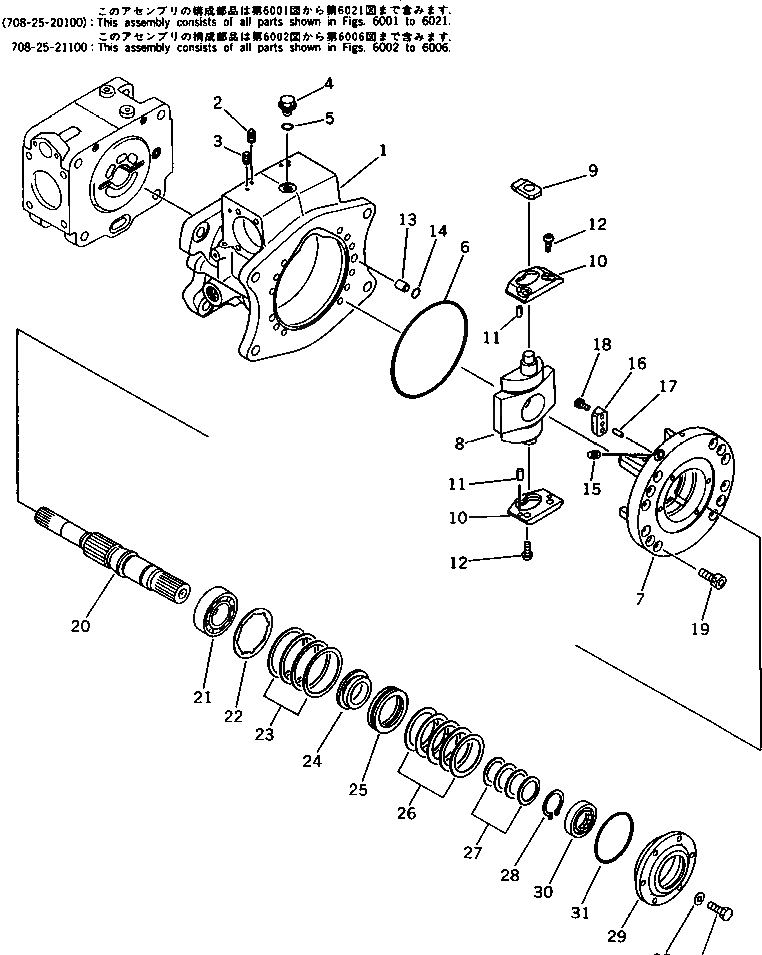

Запчасти Komatsu PC150LC-3 ГИДР. НАСОС.¤ ПЕРЕДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-20100

HYDRAULIC PUMP ASS'Y,(HPV71+71)

|1

708-25-21100

PUMP SUB ASS'Y

1

CASE,FRONT

2

PLUG

3

PLUG

4

720-68-19870

PLUG

5

07002-01223

O-RING

6

708-25-12340

O-RING

|7

708-25-00050

CRADLE ASS'Y

7

CRADLE,FRONT

8

ROCKER,CAM

9

708-25-14120

SLIDER

10

708-25-23410

ROCKER

11

04020-00820

PIN

12

01010-30816

BOLT

13

708-25-12330

JOINT

14

07000-12015

O-RING

15

PLUG

16

STOPPER

17

PIN,DOWEL

18

BOLT

19

708-25-12350

BOLT

20

708-25-22710

SHAFT

21

708-25-12730

BEARING

22

708-25-12950

PLATE

23

SHIM¤ 0.05MM

|23

SHIM¤ 0.10MM

|23

SHIM¤ 0.15MM

24

RETAINER

25

06000-51112

BEARING

26

SHIM¤ 0.10MM

|26

SHIM¤ 0.20MM

|26

SHIM¤ 0.50MM

27

WASHER¤ 2.0MM

|27

WASHER¤ 2.1MM

|27

WASHER¤ 2.2MM

|27

WASHER¤ 2.3MM

28

708-25-12790

RING,SNAP

29

708-25-22840

HOUSING

30

706-73-40920

SEAL,OIL

31

07000-02090

O-RING

32

01010-30820

BOLT

33

01643-30823

WASHER
