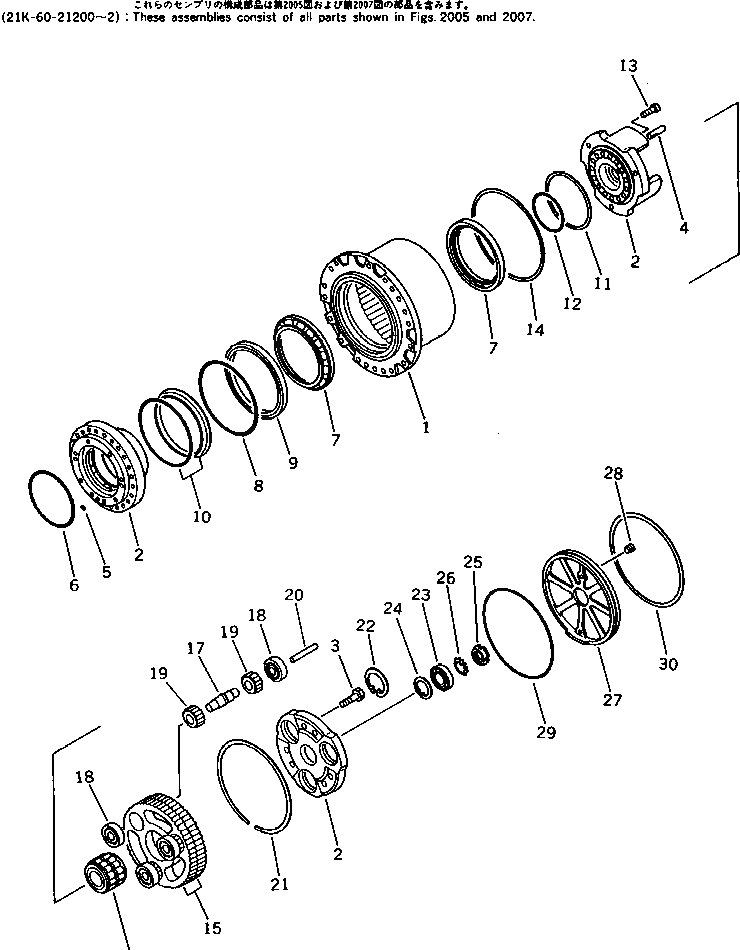

Запчасти Komatsu PC150LC-3 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

21K-60-21202

TRAVEL MOTOR ASS'Y

|1

21K-60-21201

TRAVEL MOTOR ASS'Y

|1

21K-60-21200

TRAVEL MOTOR ASS'Y

1

TZ210A1001-00

HUB

|1

TZ210A1001-00

HUB

|2

TZ210A1102-00

SPINDLE ASS'Y

2

TZ210A1132-00

SPINDLE ASS'Y

3

TZ800A1019-00

BOLT

4

TZ200A1015-00

PIN

5

07000-11006

O-RING (KIT)

6

TZJW1516-G41-9

O-RING (KIT)

7

TZ200A1021-01

BEARING

|7

TZ200A1021-00

BEARING

8

07000-15260

O-RING (KIT)

9

TZ150A1010-00

PIECE,DISTANCE

10

TZES100-209-A

SEAL,FLOATING (KIT)

11

TZ200A1013-00

PIECE,DISTANCE

12

TZJW1516-G26-9

O-RING (KIT)

13

01252-31850

BOLT

14

TZ200A1011-00

RING

|15

TZ200A1104-00

GEAR ASS'Y,RV

15

TZ200A1204-00

GEAR ASS'Y,RV

16

TZ200A1007-00

BEARING

17

TZ200A1009-00

SHAFT,CRANK

18

TZ200A1022-00

BEARING

19

TZ200A1023-00

BEARING

20

TZ200A1017-00

PIN

21

TZ210A1012-00

RING

22

TZ200A1020-00

RING

23

06000-30208

BEARING

24

04064-05020

RING,SNAP

25

TZJB1554-AN08

NUT

26

TZJB1555-AW08

PLATE

27

TZ210A1008-00

COVER

|27

TZ200A1008-00

COVER

28

TZGM1-2

PLUG

29

TZJW1516-P80-9

O-RING (KIT)

30

TZ200A1018-00

RING

K1

TZ210A9000-00

SEAL KIT

|K1

07000-13032

O-RING

|K1

07000-12020

O-RING

|K1

07002-02034

O-RING

|K1

07000-11009

O-RING

|K1

TZTCN-55-78-12

SEAL,OIL

|K1

07000-15170

O-RING

|K1

TZSUN-2BG170

RING,BACK-UP

|K1

07000-15145

O-RING

|K1

TZ231F2023-00

RING,BACK-UP

|K1

07000-11006

O-RING

|K1

TZJW1516-G41-9

O-RING

|K1

07000-15260

O-RING

|K1

TZES100-209-A

SEAL,FLOATING

|K1

TZJW1516-G26-9

O-RING

|K1

TZJW1516-P80-9

O-RING
