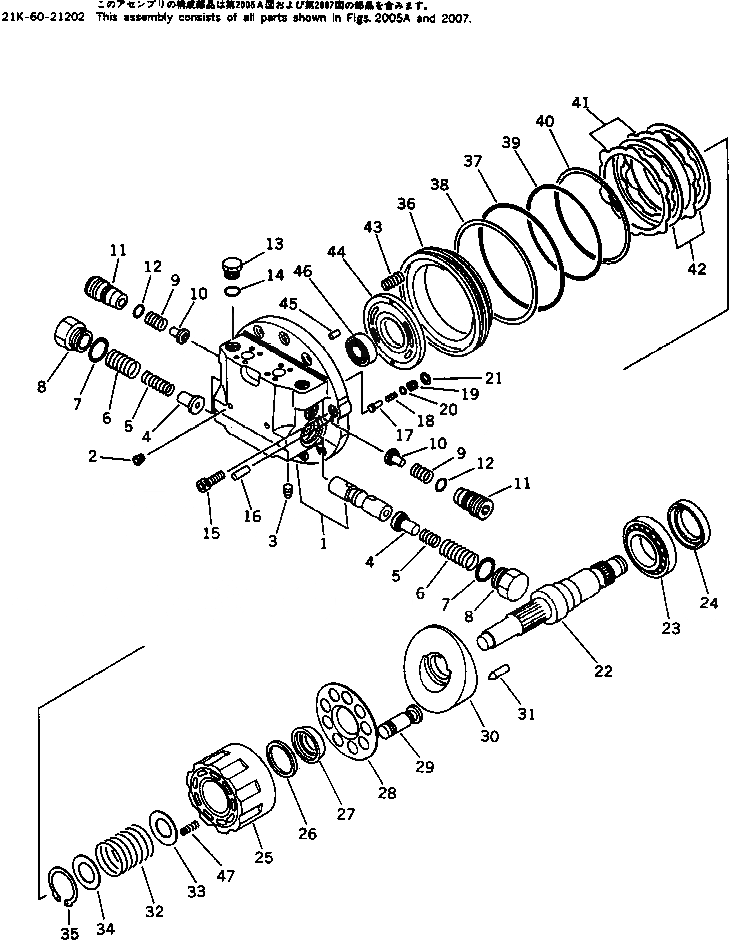

Запчасти Komatsu PC150LC-3 МОТОР ХОДА (/)(№-) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

21K-60-21202

TRAVEL MOTOR ASS'Y

1

TZ210A210100-E

FLANGE ASS'Y,REAR

2

TZGM1-8

PLUG

3

TZMB700-050

PLUG

4

TZ200A2052-00

STOPPER

5

TZ200A2056-00

SPRING

6

TZ100A2055-00

SPRING

7

07000-13032

O-RING (KIT)

8

TZ100A2051-00

PLUG

9

TZ100A2057-01

SPRING

10

TZ100A2054-01

VALVE

11

TZ100A2053-01

PLUG

12

07000-12020

O-RING (KIT)

13

TZ100A2021-00

PLUG

14

07002-02034

O-RING (KIT)

15

01252-31440

BOLT

16

TZJB1354-10-28

PIN

17

TZ430F2019-00

VALVE

18

TZ100A2020-00

SPRING

19

TZ100A2018-00

SEAT,VALVE

20

07000-11009

O-RING (KIT)

21

TZ100A2022-00

RING,SNAP

22

TZ210A2002-01

SHAFT

23

06000-32011

BEARING,ROLLER

24

TZTCN-55-78-12

SEAL,OIL (KIT)

25

TZ210A2020-00

BLOCK,CYLINDER

26

TZ100A2011-00

WASHER KIT

27

TZ100A2008-00

BALL,THRUST

28

TZ100A2007-00

PLATE,RETAINER

29

TZ210A2105-01

PISTON ASS'Y

30

TZ200A200300-G

PLATE,SWASH

31

TZ150A2017-00

PIN

32

TZ461F2028-01

SPRING

33

TZ200D2011-00

WASHER

34

TZ100A2010-00

WASHER

35

TZIRTW-55

RING,SNAP

36

TZ231F2012-00

PISTON

37

07000-15170

O-RING (KIT)

38

TZSUN-2BG170

RING,BACK-UP (KIT)

39

07000-15145

O-RING (KIT)

40

TZ231F2023-00

RING,BACK-UP (KIT)

41

TZ100A2016-00

PLATE

42

TZ200A2015-00

DISC

43

TZ100A2013-00

SPRING

44

TZ210A2009-00

PLATE,TIMING

45

TZJB1354-5-12

PIN

46

06000-06005

BEARING

47

TZ210A2059-00

SPRING
