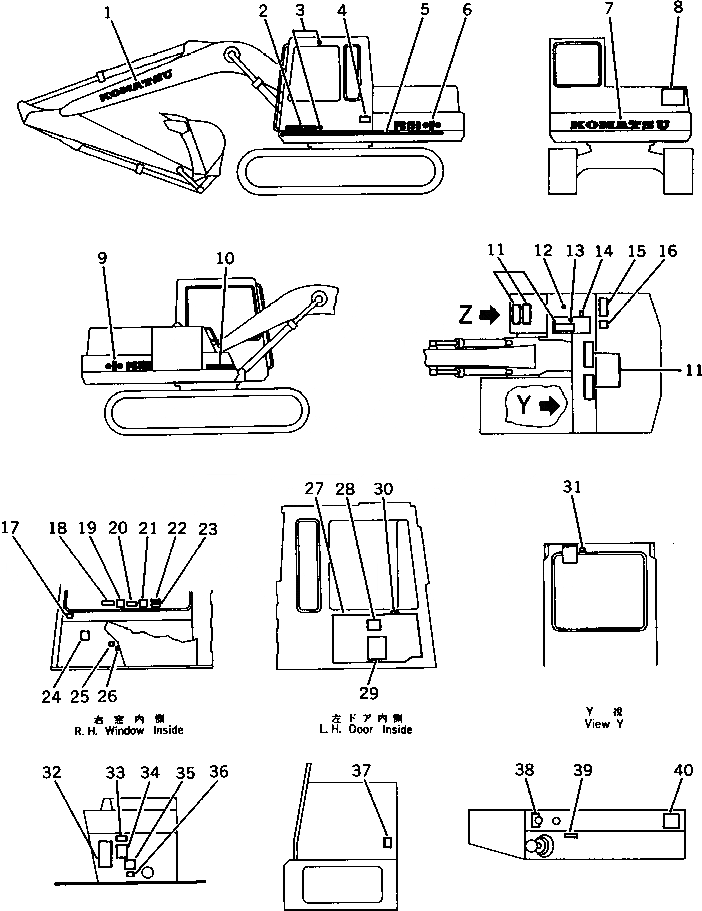

Запчасти Komatsu PC150LC-3 МАРКИРОВКА (ДЛЯ WRIST УПРАВЛ-Е) (ЯПОН.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09690-01250

PLATE¤ MARK,KOMATSU

2

09690-10500

PLATE¤ MARK,KOMATSU

3

205-00-63770

PLATE,GUARD

4

09602-01643

PLATE¤ NAME,(LIMITED SUPPLY)

|4

01220-60408

SCREW

|4

01601-20410

WASHER,SPRING

5

142-54-16170

STRIPE

6

21K-00-21160

PLATE¤ MARK,PC150LC

7

203-00-41130

PLATE¤ MARK,KOMATSU

8

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

9

21K-00-21170

PLATE¤ MARK,PC150LC

10

09690-10500

PLATE¤ MARK,KOMATSU

11

154-54-23260

SEAT,NONSKID

12

09669-00002

PLATE¤ CAUTION,FUEL

13

09669-00003

PLATE¤ CAUTION,HYDRAULIC OIL

14

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

15

205-00-65150

PLATE¤ CAUTION,RADIATOR WATER LEVEL

16

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

17

205-00-52192

PLATE¤ CAUTION,FRONT WINDOW

18

205-00-71291

PLATE¤ OPERATING,WORK EQUIPMENT

19

205-00-71350

PLATE¤ OPERATING,SYMBOL MARK

20

205-00-63540

PLATE¤ CAUTION

21

205-00-63250

PLATE¤ CAUTION,STARTING

22

09649-00101

PLATE¤ INSTRUCTION,ENGINE STOP

23

203-00-31330

PLATE¤ OPERATING,DECELERATOR

24

203-06-16120

PLATE¤ CAUTION,WINDOW WASHER

25

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

26

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

27

21K-54-25130

COVER

28

PLATE¤ SAFETY,LEAVING SEAT

29

CHART¤ OIL

30

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

31

205-00-63230

PLATE¤ CAUTION,INSPECTION AND MAINTENANCE

32

203-00-31320

PLATE¤ CAUTION,AUTO DECELERATION

33

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

34

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

35

09667-00100

PLATE¤ SAFETY,ENGINE COVER

36

203-00-41180

PLATE¤ OPERATING,ENGINE COVER

37

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL TANK

38

09683-01060

PLATE¤ OPERATING,STARTER SWITCH

39

09685-00001

PLATE¤ OPERATING,SAFETY LOCK LEVER

40

203-00-41250

PLATE¤ OPERATING,SWING BRAKE
