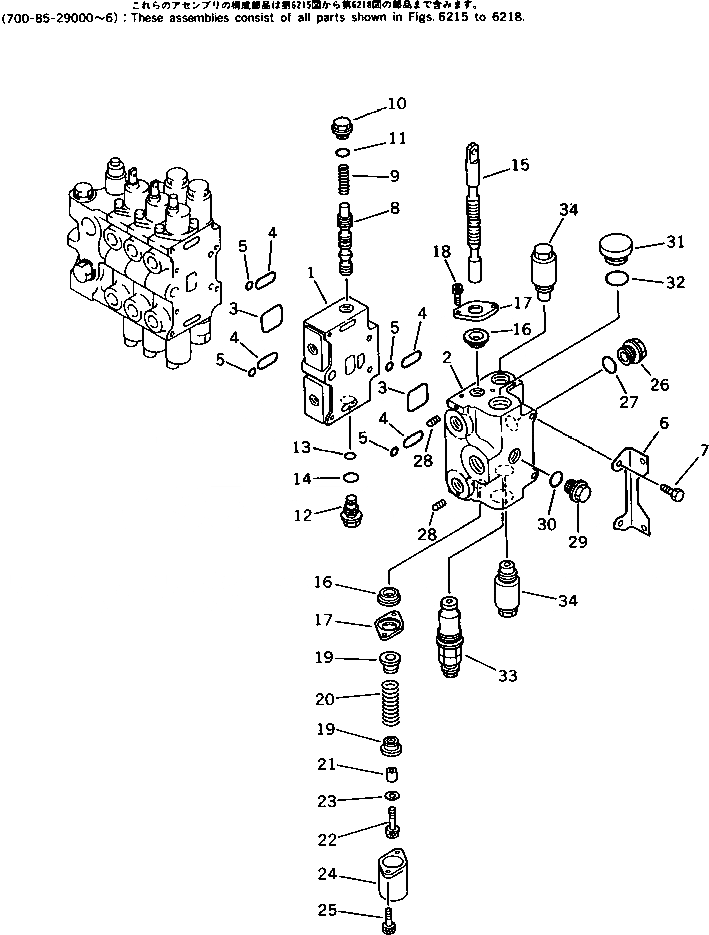

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-29006

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29005

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29004

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29003

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29002

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29001

CONTROL VALVE ASS'Y,R.H.

|1

700-85-29000

CONTROL VALVE ASS'Y,R.H.

1

BLOCK,VALVE

|1

BLOCK,VALVE

2

BODY,VALVE

|2

BODY,VALVE

3

07000-13050

O-RING

4

07000-03038

O-RING

|4

07000-03030

O-RING

5

07000-01007

O-RING

6

700-84-11330

BRACKET

7

01010-51020

BOLT

8

SPOOL

9

700-84-13880

SPRING

10

700-84-13870

PLUG

11

07002-02434

O-RING

12

700-84-13510

NIPPLE

13

07000-02015

O-RING

14

07002-02434

O-RING

15

SPOOL,R.H. TRAVEL

16

700-84-13910

SEAL

17

700-84-13891

PLATE

18

01252-30612

BOLT

19

700-84-13711

RETAINER

20

700-84-11650

SPRING

21

700-84-11641

COLLAR

22

01252-30830

BOLT

23

01643-30823

WASHER

24

700-84-11390

COVER

25

01252-30625

BOLT

26

700-84-11320

PLUG

27

07002-13034

O-RING

28

706-86-51170

PLUG

29

700-22-11370

PLUG

30

07002-12434

O-RING

31

07040-13316

PLUG

32

07002-13334

O-RING

33

700-82-56000

RELIEF VALVE ASS'Y

34

700-81-81000

VALVE ASS'Y,SUCTION
