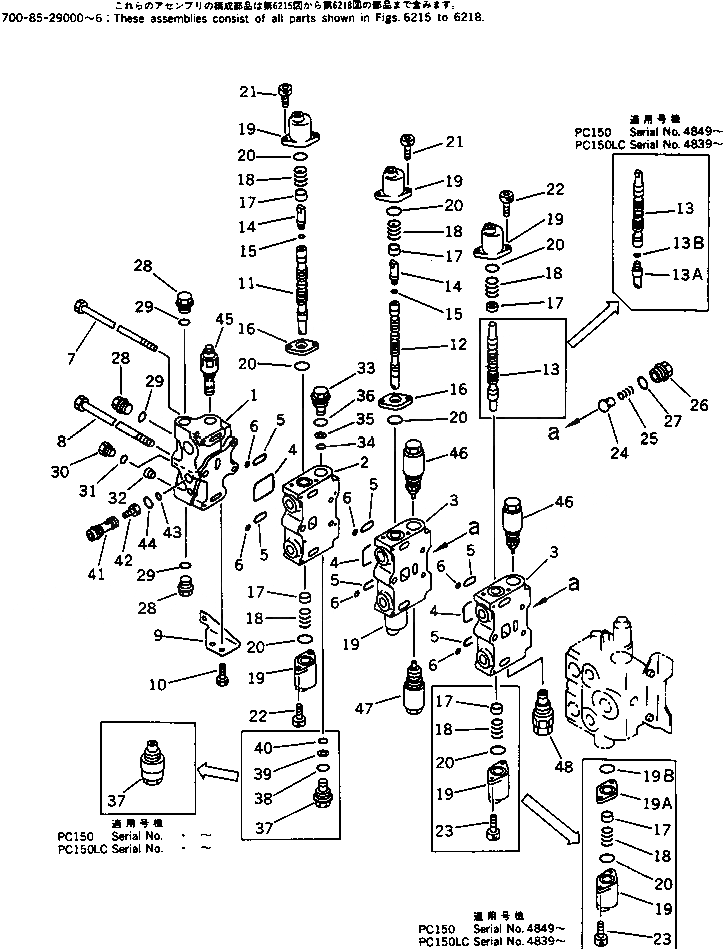

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ WRIST УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-85-29006
CONTROL VALVE ASS'Y,R.H.
|1
700-85-29005
CONTROL VALVE ASS'Y,R.H.
|1
700-85-29004
CONTROL VALVE ASS'Y,R.H.
|1
700-85-29003
CONTROL VALVE ASS'Y,R.H.
|1
700-85-29002
CONTROL VALVE ASS'Y,R.H.
|1
700-85-29001
CONTROL VALVE ASS'Y,R.H.
|1
700-85-29000
CONTROL VALVE ASS'Y,R.H.
1
COVER,VALVE
|1
COVER,VALVE
2
BLOCK,VALVE
|2
BLOCK,VALVE
|2
BLOCK,VALVE
3
BLOCK,VALVE
|3
BLOCK,VALVE
4
07000-13050
O-RING
5
07000-03038
O-RING
|5
07000-03030
O-RING
6
07000-01007
O-RING
7
700-86-11112
BOLT
8
700-84-13220
BOLT
9
700-84-13480
BRACKET
10
01010-51020
BOLT
11
SPOOL,ARM
12
SPOOL,BOOM
13
SPOOL,BUCKET
|13
SPOOL,BUCKET
13A
700-84-13790
JOINT
13B
07002-11223
O-RING
14
700-84-13790
JOINT
15
07002-11223
O-RING
16
700-84-13490
PLATE
17
700-84-13781
RETAINER
18
700-84-13770
SPRING
19
700-84-12510
CASE
19A
700-84-13490
PLATE
19B
700-84-11240
O-RING
20
700-84-11240
O-RING
21
01252-30625
BOLT
22
01252-30616
BOLT
23
01252-30625
BOLT
|23
01252-30616
BOLT
24
700-42-31460
VALVE
25
700-42-31470
SPRING
26
700-84-11320
PLUG
27
07002-13034
O-RING
28
700-22-11370
PLUG
29
07002-12434
O-RING
30
07040-11409
PLUG
31
07002-01423
O-RING
32
07043-70108
PLUG
33
700-84-13960
PLUG
34
700-22-11410
O-RING
35
700-80-64220
RING,BACK-UP
36
07002-03034
O-RING
37
700-81-78000
VALVE ASS'Y
|37
700-84-13960
PLUG
38
700-22-11410
O-RING
39
700-80-64220
RING,BACK-UP
40
07002-03034
O-RING
|41
709-70-91300
ORIFICE ASS'Y
41
ORIFICE
42
SENSOR
43
07000-02014
O-RING
44
07002-02434
O-RING
45
709-70-55103
RELIEF VALVE ASS'Y
|45
709-70-55102
RELIEF VALVE ASS'Y
|45
709-70-55101
RELIEF VALVE ASS'Y
|45
709-70-55100
RELIEF VALVE ASS'Y
46
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
|46
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
47
700-81-61002
VALVE ASS'Y,SUCTION AND SAFETY
|47
700-81-61001
VALVE ASS'Y,SUCTION AND SAFETY
48
700-81-77000
SAFETY VALVE ASS'Y
Выбрано товаров: 73
