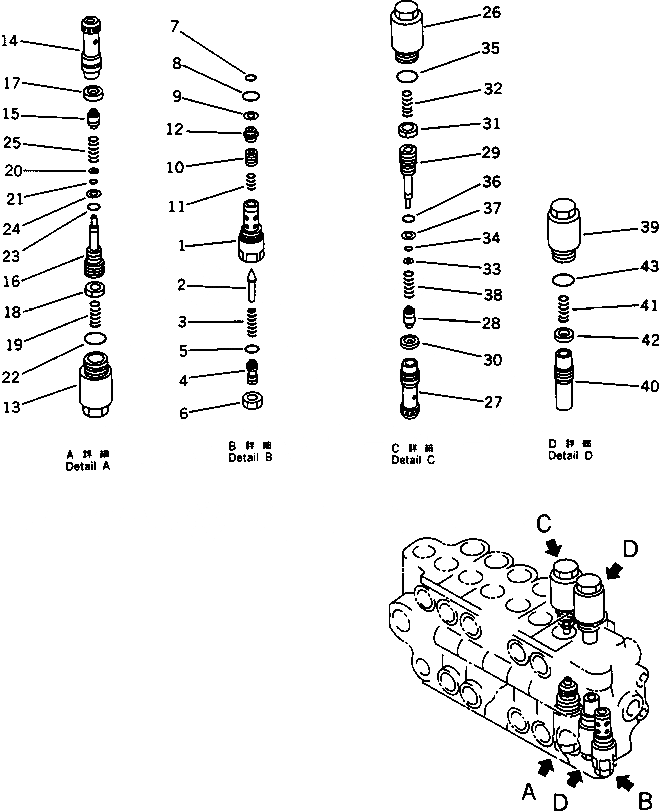

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е)(№89-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-28006

CONTROL VALVE ASS'Y,L.H.

|1

709-70-55103

RELIEF VALVE ASS'Y

1

SLEEVE

2

709-70-51420

POPPET

3

700-20-51580

SPRING

4

700-20-51340

SCREW

5

07000-02011

O-RING

6

01582-11411

NUT

7

700-22-11410

O-RING

8

07002-02434

O-RING

9

700-20-51550

RING

10

VALVE

11

709-70-51210

SPRING

12

700-20-51540

RETAINER

|13

709-70-61201

VALVE ASS'Y

13

700-80-62310

SLEEVE

14

VALVE

15

POPPET

16

PISTON

17

SEAL

18

NUT

19

700-80-62250

SPRING

20

SEAL

21

O-RING

22

07002-03034

O-RING

23

O-RING

24

RING,BACK-UP

25

SPRING

|26

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

26

700-80-62310

SLEEVE

27

VALVE

28

POPPET

29

PISTON

30

SEAL

31

NUT

32

700-80-62250

SPRING

33

SEAL

34

O-RING

35

07002-03034

O-RING

36

O-RING

37

RING,BACK-UP

38

SPRING

|39

700-81-81000

VALVE ASS'Y

39

700-80-62310

SLEEVE

40

VALVE

41

700-80-62250

SPRING

42

SEAL

43

07002-03034

O-RING
