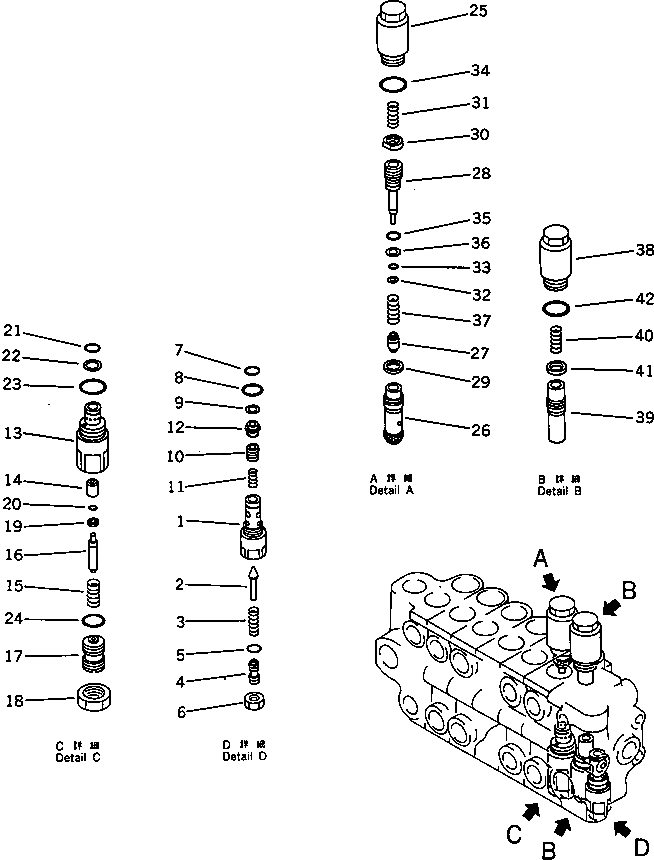

Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е)(№-88) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
700-86-28006
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28005
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28004
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28003
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28002
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28001
CONTROL VALVE ASS'Y,L.H.
|1
700-86-28000
CONTROL VALVE ASS'Y,L.H.
|1
709-70-55103
RELIEF VALVE ASS'Y
|1
709-70-55102
RELIEF VALVE ASS'Y
|1
709-70-55101
RELIEF VALVE ASS'Y
|1
709-70-55100
RELIEF VALVE ASS'Y
1
SLEEVE
|1
SLEEVE
|1
SLEEVE
|1
SLEEVE
2
709-70-51420
POPPET
|2
709-70-51220
POPPET
|2
700-80-61190
POPPET
3
700-20-51580
SPRING
|3
709-70-51310
SPRING
|3
700-20-51580
SPRING
4
700-20-51340
SCREW
|4
709-70-51320
SCREW
|4
700-20-51340
SCREW
5
07000-02011
O-RING
6
01582-11411
NUT
7
700-22-11410
O-RING
8
07002-02434
O-RING
9
700-20-51550
RING
10
VALVE
|10
VALVE
11
709-70-51210
SPRING
|11
700-20-51610
SPRING
12
700-20-51540
RETAINER
|13
709-70-61201
VALVE ASS'Y
|13
709-70-62100
VALVE ASS'Y
13
SLEEVE
14
POPPET
15
SPRING
16
PISTON
17
SCREW
18
NUT
19
SEAL
20
O-RING
21
700-22-11410
O-RING
22
700-80-64220
RING,BACK-UP
23
07002-03034
O-RING
24
O-RING
|25
709-70-61201
VALVE ASS'Y,SUCTION AND SAFETY
|25
709-70-61200
VALVE ASS'Y,SUCTION AND SAFETY
25
700-80-62310
SLEEVE
26
VALVE
27
POPPET
28
PISTON
29
SEAL
30
NUT
|30
NUT
31
700-80-62250
SPRING
32
SEAL
33
O-RING
34
07002-03034
O-RING
35
O-RING
36
RING,BACK-UP
37
SPRING
|38
700-81-81000
VALVE ASS'Y
38
700-80-62310
SLEEVE
39
VALVE
40
700-80-62250
SPRING
41
SEAL
42
07002-03034
O-RING
Выбрано товаров: 70
