Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е)(№.-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

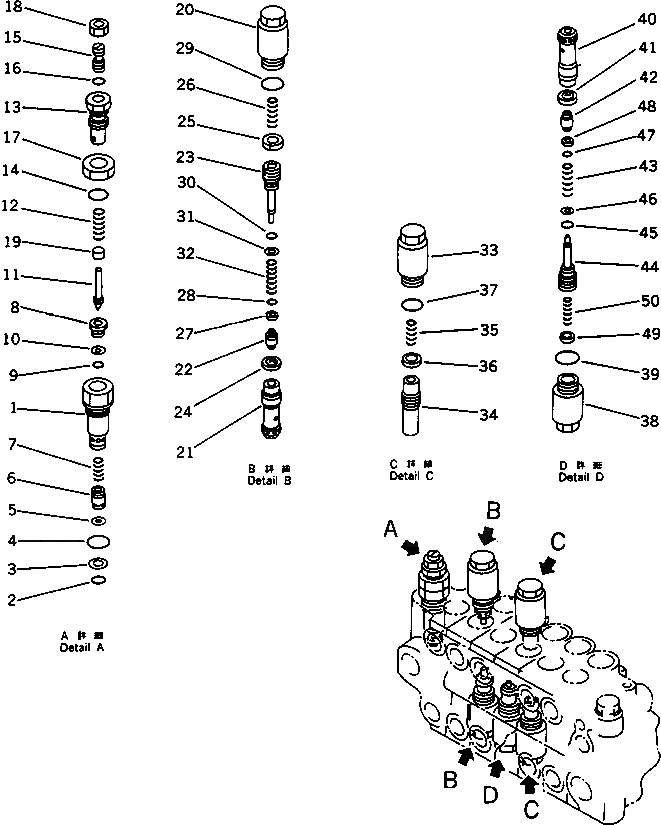

Схема запчастей Komatsu PC150LC-3 - УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ WRIST УПРАВЛ-Е)(№.-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

700-86-28006

CONTROL VALVE ASS'Y,L.H.

|1

700-86-28005

CONTROL VALVE ASS'Y,L.H.

|1

700-86-28004

CONTROL VALVE ASS'Y,L.H.

|1

700-86-28003

CONTROL VALVE ASS'Y,L.H.

|1

700-86-28002

CONTROL VALVE ASS'Y,L.H.

|1

700-86-28001

CONTROL VALVE ASS'Y,L.H.

|1

700-87-56000

VALVE ASS'Y

1

SLEEVE

2

700-13-31161

O-RING

3

700-80-51190

RING,BACK-UP

4

07002-03334

O-RING

5

700-80-51350

RING,SNAP

6

VALVE

7

700-80-51390

SPRING

8

700-80-51740

SEAT

9

07000-22012

O-RING

10

07001-02012

RING,BACK-UP

11

700-86-61190

POPPET

12

709-20-51231

SPRING

13

700-80-51360

HOLDER

14

07002-02434

O-RING

15

700-80-51630

SCREW

16

07000-02011

O-RING

17

07239-12410

NUT

18

01582-11411

NUT

19

709-90-51260

RETAINER

|20

700-84-13960

PLUG

|20

4700-70-61200

VALVE ASS'Y

20

700-80-62310

SLEEVE

21

VALVE

22

POPPET

23

PISTON

24

SEAL

25

NUT

26

700-80-62250

SPRING

27

SEAL

28

O-RING

29

07002-03034

O-RING

30

O-RING

31

RING,BACK-UP

32

SPRING

|33

700-84-13960

PLUG

|33

700-81-81000

VALVE ASS'Y

33

SLEEVE

34

VALVE

35

700-80-62250

SPRING

36

SEAL

37

07002-03034

O-RING

|38

709-81-66001

VALVE ASS'Y

|38

709-81-66000

VALVE ASS'Y

38

700-80-62310

SLEEVE

39

07002-03034

O-RING

40

VALVE

41

SEAL

42

POPPET

43

SPRING

44

PISTON

45

O-RING

46

RING,BACK-UP

47

O-RING

48

SEAL

49

NUT

|49

NUT

50

700-80-62250

SPRING

Выбрано товаров: 64
