Запчасти Komatsu PC150LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

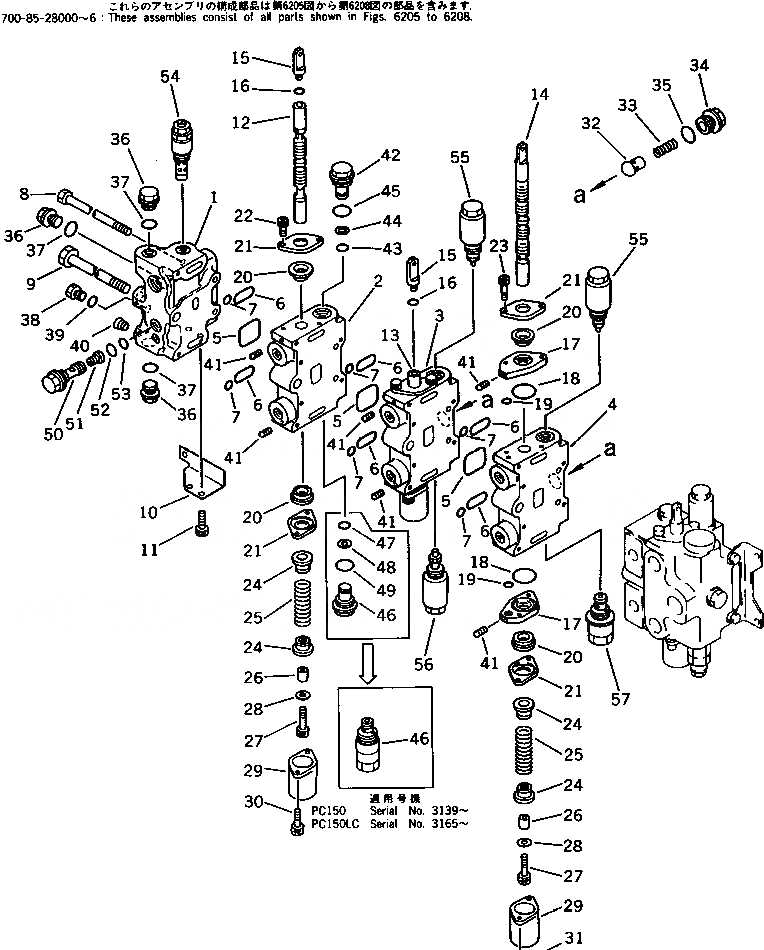

Схема запчастей Komatsu PC150LC-3 - УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ УДЛИНН. РЫЧАГ УПРАВЛ-Е) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

700-85-28006

CONTROL VALVE ASS'Y,R.H.

|1

700-85-28005

CONTROL VALVE ASS'Y,R.H.

|1

700-85-28004

CONTROL VALVE ASS'Y,R.H.

|1

700-85-28003

CONTROL VALVE ASS'Y,R.H.

|1

700-85-28002

CONTROL VALVE ASS'Y,R.H.

|1

700-85-28001

CONTROL VALVE ASS'Y,R.H.

|1

700-85-28000

CONTROL VALVE ASS'Y,R.H.

1

COVER,VALVE

|1

COVER,VALVE

2

BLOCK,VALVE

|2

BLOCK,VALVE

3

BLOCK,VALVE

|3

BLOCK,VALVE

4

BLOCK,VALVE

|4

BLOCK,VALVE

5

07000-13050

O-RING

6

07000-03038

O-RING

|6

07000-03030

O-RING

7

07000-01007

O-RING

8

700-86-11112

BOLT

9

700-84-13220

BOLT

10

700-84-13480

BRACKET

11

01010-51020

BOLT

12

SPOOL,ARM

13

SPOOL,BOOM

14

SPOOL,BUCKET

15

700-84-11870

JOINT

16

07002-11223

O-RING

17

700-84-13923

PLATE

|17

700-84-13921

PLATE

18

700-84-11240

O-RING

19

07000-01007

O-RING

20

700-84-13910

SEAL

21

700-84-13891

PLATE

22

01252-30612

BOLT

23

01252-30625

BOLT

24

700-84-13711

RETAINER

25

700-84-11650

SPRING

26

700-84-11641

COLLAR

27

01252-30830

BOLT

28

01643-30823

WASHER

29

700-84-11390

COVER

30

01252-30625

BOLT

31

01252-30630

BOLT

32

700-42-31460

VALVE

33

700-42-31470

SPRING

34

700-84-11320

PLUG

35

07002-13034

O-RING

36

700-22-11370

PLUG

37

07002-12434

O-RING

38

07040-11409

PLUG

39

07002-01423

O-RING

40

07043-70108

PLUG

41

706-86-51170

PLUG

42

700-84-13960

PLUG

43

700-22-11410

O-RING

44

700-80-64220

RING

45

07002-03034

O-RING

46

700-81-78000

VALVE ASS'Y,SAFETY

|46

700-84-13960

PLUG

47

700-22-11410

O-RING

48

700-80-64220

RING

49

07002-03034

O-RING

|50

709-70-91300

ORIFICE ASS'Y

50

ORIFICE

51

SENSOR

52

07002-02434

O-RING

53

07000-02014

O-RING

54

709-70-55103

RELIEF VALVE ASS'Y,RELIEF

|54

709-70-55102

RELIEF VALVE ASS'Y,RELIEF

|54

709-70-55101

RELIEF VALVE ASS'Y,RELIEF

|54

709-70-55100

RELIEF VALVE ASS'Y,RELIEF

55

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|55

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

56

709-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|56

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

57

700-81-77000

SAFETY VALVE ASS'Y,SAFETY

Выбрано товаров: 77
