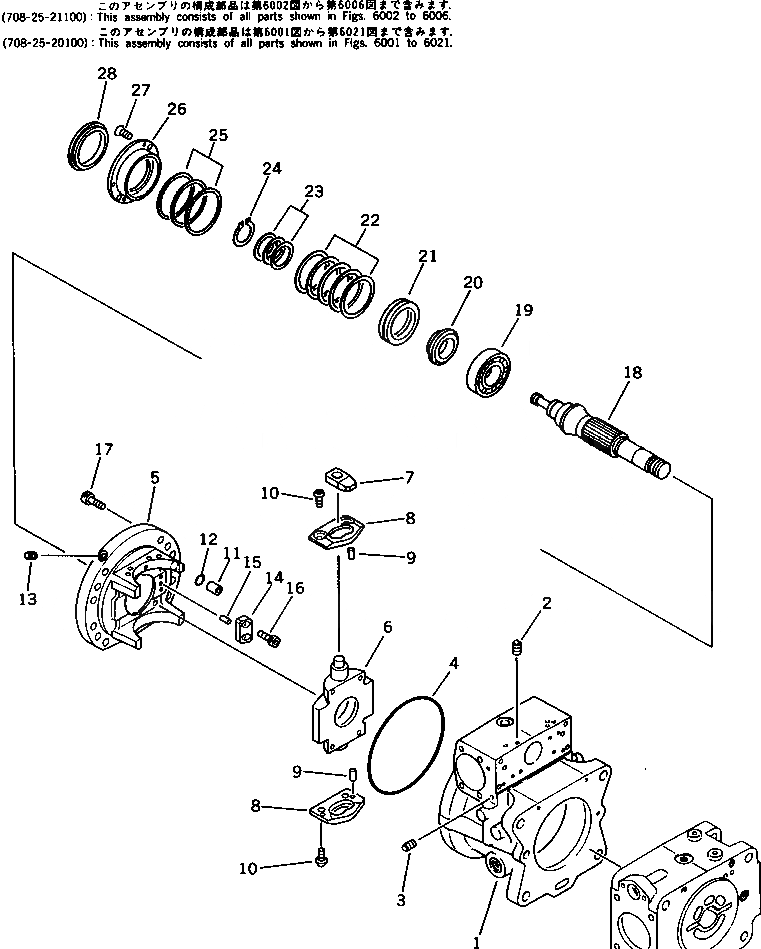

Запчасти Komatsu PC150LC-3 ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-20100

HYDRAULIC PUMP ASS'Y,(HPV71+71)

|1

708-25-21100

PUMP SUB ASS'Y

1

CASE,REAR

2

PLUG

3

PLUG

4

708-25-12340

O-RING

|5

708-25-00060

CRADLE ASS'Y

5

CRADLE,REAR

6

ROCKER,CAM

7

708-25-14120

SLIDER

8

708-25-12360

PLATE

9

04020-00820

PIN,DOWEL

10

01010-30816

BOLT

11

708-23-12330

JOINT

12

07000-12015

O-RING

13

PLUG

14

PIN

15

PIN,DOWEL

16

BOLT

17

708-25-12350

BOLT

18

708-25-22720

SHAFT

19

708-25-12730

BEARING

20

RETAINER

21

06000-51108

BEARING

22

SHIM¤ 0.10MM

|22

SHIM¤ 0.20MM

|22

SHIM¤ 0.50MM

23

WASHER¤ 2.0MM

|23

WASHER¤ 2.1MM

|23

WASHER¤ 2.2MM

|23

WASHER¤ 2.3MM

24

708-25-22830

RING,SNAP

25

SHIM

|25

SHIM

|25

SHIM

26

708-25-22850

HOUSING,REAR

27

706-75-40270

SCREW

28

708-25-22960

COLLAR
