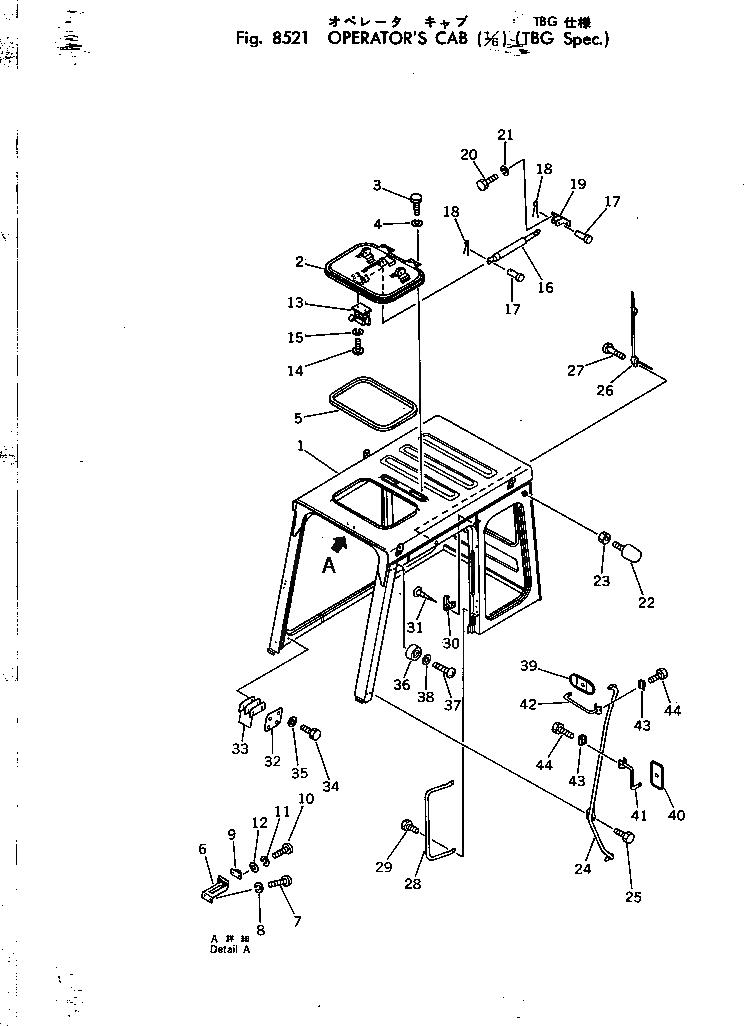

Запчасти Komatsu PC150LC-1 КАБИНА (/) (СПЕЦ-Я TBG)(№9-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

21K-54-00120

CAB ASS'Y

1

21K-54-16100

CABIN

2

21K-54-16110

COVER

3

01010-50612

BOLT

4

01602-20619

WASHER,SPRING

5

205-54-66380

SEAL

6

21K-54-11211

BRACKET

7

01220-30614

SCREW

8

01601-20619

WASHER,SPRING

9

205-54-66270

HOLDER

10

01220-30620

SCREW

11

01602-20619

WASHER,SPRING

12

01641-00608

WASHER

13

205-54-68580

LOCK ASS'Y

14

01220-30614

SCREW

15

01602-20619

WASHER,SPRING

16

205-54-63650

GAS SPRING ASS'Y

17

04205-00825

PIN

18

04050-02012

PIN,COTTER

19

205-54-63640

BRACKET

20

01010-50820

BOLT

21

01602-20825

WASHER,SPRING

22

21K-54-11310

STOPPER

23

01580-11210

NUT

24

205-54-67240

HANDLE

25

01252-41030

BOLT

26

205-06-62350

ANTENNA ASS'Y

27

01225-30425

SCREW

28

205-54-66480

HANDLE

29

01252-41030

BOLT

30

205-54-51250

HANGER

31

01381-00420

SCREW

32

205-54-66510

PLATE

33

205-54-66640

SHIM, 1.0MM

34

01010-51030

BOLT

35

01643-31032

WASHER

36

205-54-51960

CUSHION

37

01370-00412

SCREW

38

01641-00405

WASHER

39

08174-13116

MIRROR

40

08174-33023

MIRROR

41

205-54-67210

SUPPORT

42

205-54-68490

SUPPORT

43

207-54-17840

CLAMP

44

01252-41025

BOLT
