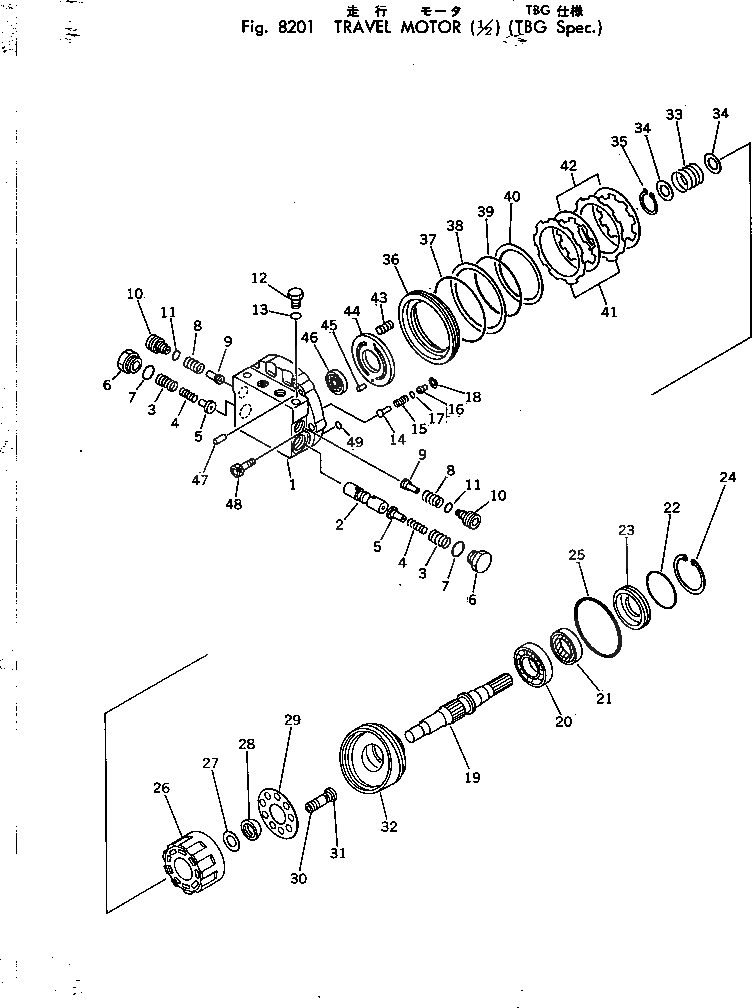

Запчасти Komatsu PC150LC-1 МОТОР ХОДА (/) (СПЕЦ-Я TBG)(№9-) ОПЦИОННЫЕ КОМПОНЕНТЫ (СПЕЦ. APPLICATION ЧАСТИ)

|$0

21K-60-00040

MOTOR ASS'Y

|$3

FLANGE ASS'Y

1

FLANGE,REAR

2

SPOOL

3

SPRING

4

SPRING

5

STOPPER

6

PLUG

7

07000-13032

O-RING (KIT)

8

SPRING

9

VALVE

10

PLUG

11

07000-12020

O-RING (KIT)

12

PLUG

13

07002-02034

O-RING (KIT)

14

VALVE

15

SPRING

16

SEAT,VALVE

17

07000-11009

O-RING (KIT)

18

RING

19

SHAFT

20

BEARING,BALL

21

SEAL,OIL (KIT)

22

07000-12075

O-RING (KIT)

23

COVER,BEARING

24

RING,SNAP

25

O-RING (KIT)

26

BLOCK,CYLINDER

27

WASHER KIT

28

BALL,THRUST

29

PLATE,RETAINER

|$33

PISTON ASS'Y

30

PISTON

31

SHOE

32

PLATE,SWASH

33

SPRING

34

WASHER

35

RING,SNAP

36

PISTON

37

07000-15170

O-RING (KIT)

38

RING,BACK-UP (KIT)

39

07000-15145

O-RING (KIT)

40

RING,BACK-UP (KIT)

41

PLATE

42

DISC

43

SPRING

44

PLATE,TIMING

45

PIN

46

06000-06005

BEARING,BALL

47

PIN

48

01252-31235

BOLT

49

07000-11006

O-RING (KIT)

7

TZ460F9000-00

KIT

7

07000-13032

O-RING

11

07000-12020

O-RING

13

07000-02034

O-RING

17

07000-11009

O-RING

21

SEAL,OIL

22

07000-12075

O-RING

25

O-RING

37

07000-15170

O-RING

38

RING,BACK-UP

39

07000-15145

O-RING

40

RING,BACK-UP

49

07000-11006

O-RING
